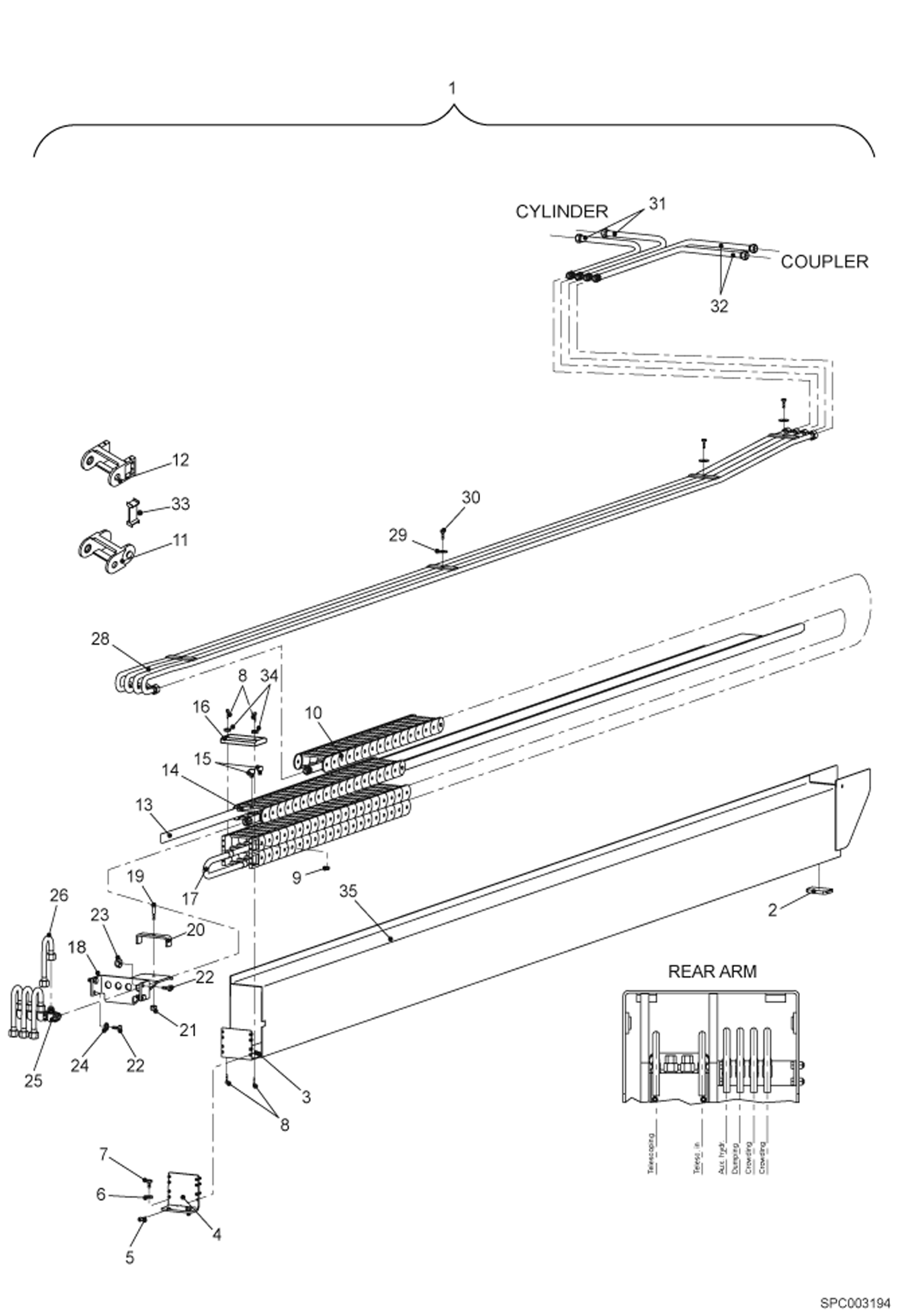

Запчасти Bobcat T40170 BOOM HYDRAULIC SUPPLY (S/N A8GB11001 & Above) HYDRAULIC SYSTEM

1

6908593

BOX ASSY, HYD ARM 17 M

1

6925300

BOX ASSY, HYD ARM 17 M

2

7214511

SLIDE Was 95016.2 - A

3

100345-05V

NUT

4

7212614

PLATE Was 95015.4 - A

5

6GM525

SCREW Was 33786.5 - A

6

01720.2

Washer

7

01604.8

Screw

8

6GM525

SCREW Was 33786.5 - A

9

100345-05V

NUT

10

7212277

CHAIN W/Ref. 11-12 & 33 Was 95609.4 - A

11

95571.6

Link

12

95572.4

Link

13

96969.1

Guide

14

7213660

BAND Was 97887.4 - A

15

97949.2

Screw

16

97868.4

Shoe

17

6918068

Combined hose Was 6908245 - B

18

7212602

PLATE Was 95086.5 - A

19

01579.2

Screw

20

7213702

HOLDER Was 95090.7 - A

21

01681.6

Nut Was 51851.4 - B

22

01605.5

Screw

23

100345-09A

NUT

24

01720.2

Washer

25

010370-57L

ELBOW UNION

26

7212604

TUBELINE, HYD Was 85963.7 - A

28

7212291

TUBELINE, HYD Was 95598.9 - A

29

01718.6

Washer

30

4CM825

BOLT Was 01597.4 - B

31

80407.0

Hose

32

76401.9

Hose

33

95088.1

Chain spacer

34

01695.6

Washer

35

7212288

BOX Was 6910220 - A
