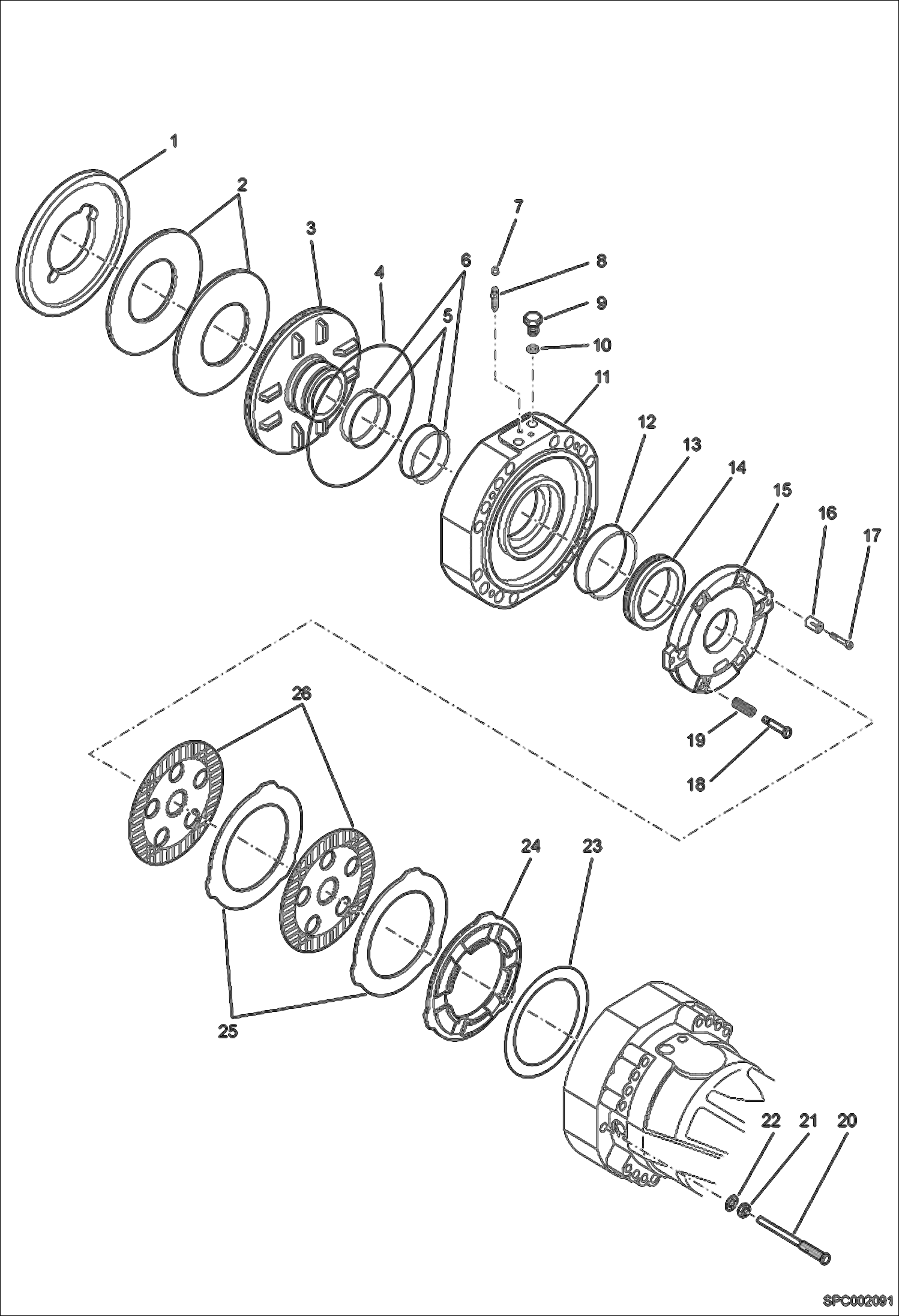

Запчасти Bobcat T40170 BRAKES - FRONT AXLE DRIVE SYSTEM

1

6912838

SPACER

2

6912866

SPRING

3

6912857

PISTON

4

6912854

O'RING

5

6912849

O'RING

6

6912780

RING, BACK-UP

7

6912629

PLUG

8

6912775

SCREW

9

6912768

SCREW W/Ref. 10 - only for assy #6914474

9

7024446

PLUG W/Ref. 10 - only for assy #6934695

10

6912705

SEAL

11

6912815

COVER

12

6912850

O'RING

13

6912781

RING, BACK-UP

14

6912858

PISTON

15

6912824

BRAKE DISC

16

6912864

SPRING

17

6921027

ADJUSTING BOLT Was 6912896 - A

18

6912897

SCREW

19

6912865

SPRING

20

6912898

SCREW Was 6912698 - B

21

6912831

NUT

22

6912867

WASHER

23

6912799

SHIM 0,20MM 0,20 mm

23

6912800

SHIM 0,30MM 0,30 mm

23

6912801

SHIM 0,50MM 0,50 mm

24

6912837

SPACER

25

6912915

INTERMEDIATE DISC

26

6912823

BRAKE DISC
