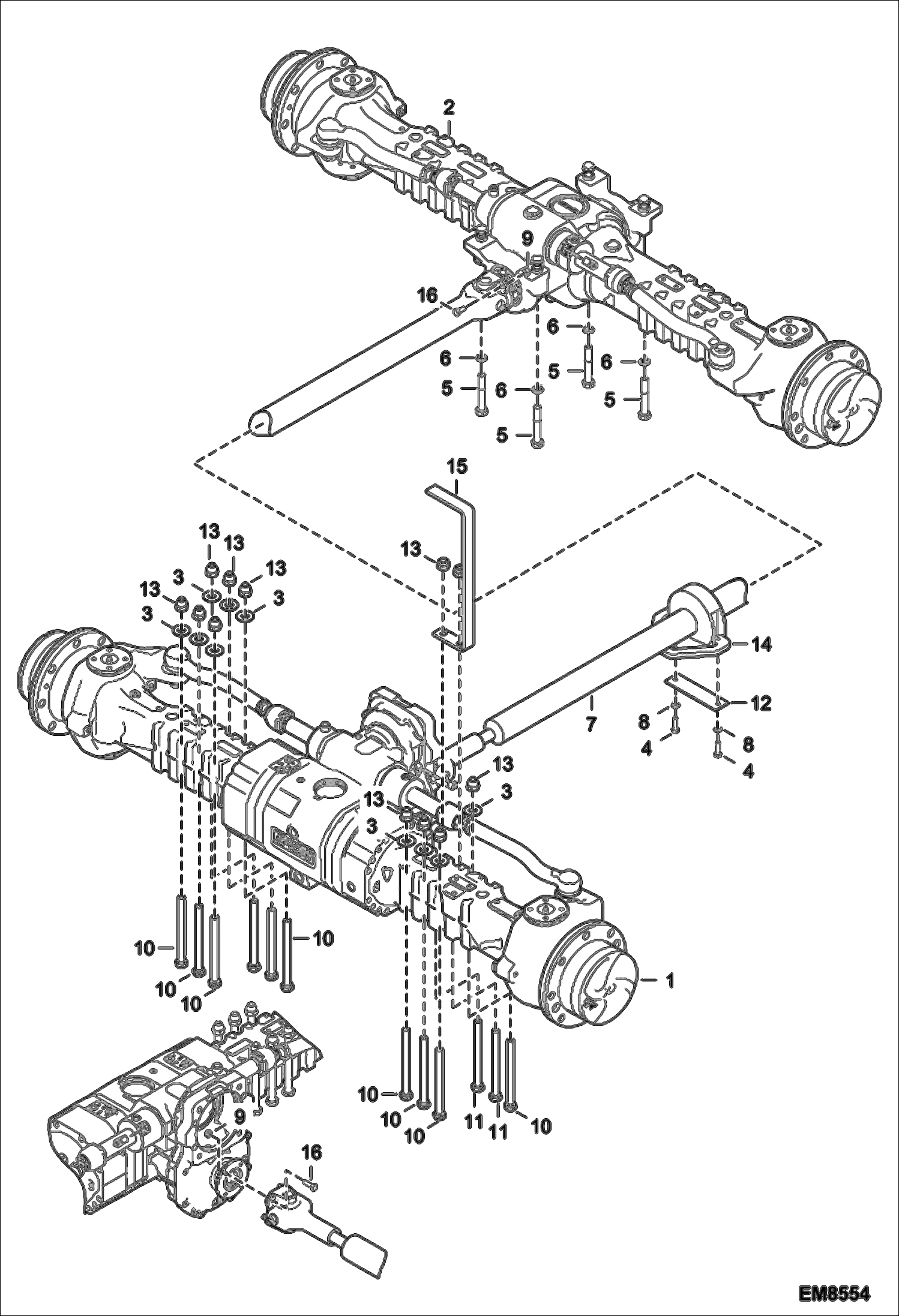

Запчасти Bobcat T40170 AXLE INSTALLATION DRIVE SYSTEM

1

AXLE ASSY, FRONT NLA - Order #7214985 Was 6914474 - A

1

7214985

AXLE, FRONT Was 6934695 - A

2

AXLE ASSY, REAR NLA - Order #7214984 + 100370-06P Was 6914475 - A

2

7214984

AXLE, REAR Was 6934451 - A

3

000350-08C

WASHER

4

01614.7

Screw

5

6915069

SCREW HM 20-120/46 CL10,9 ZJ8

6

15323.9

Washer

7

7215052

SHAFT, DRIVE See Illustration DRIVE SHAFT/ SPC002051 Was 6915283 - A

8

01699.8

Washer

9

100345-11C

NUT

10

1CM20220

SCREW Was 25237.9 - A

11

76680.8

SCREW

12

7215050

SUPPORT Was 6916071 - B

13

100345-20M

NUT

14

6915290

FLANGE

15

6925407

HORIZONTAL INDICATOR

16

7214990

SCREW Was 6927897 - A
