Запчасти Bobcat T40140 COLD START (Engine Electrical Circuitry) ACCESSORIES & OPTIONS

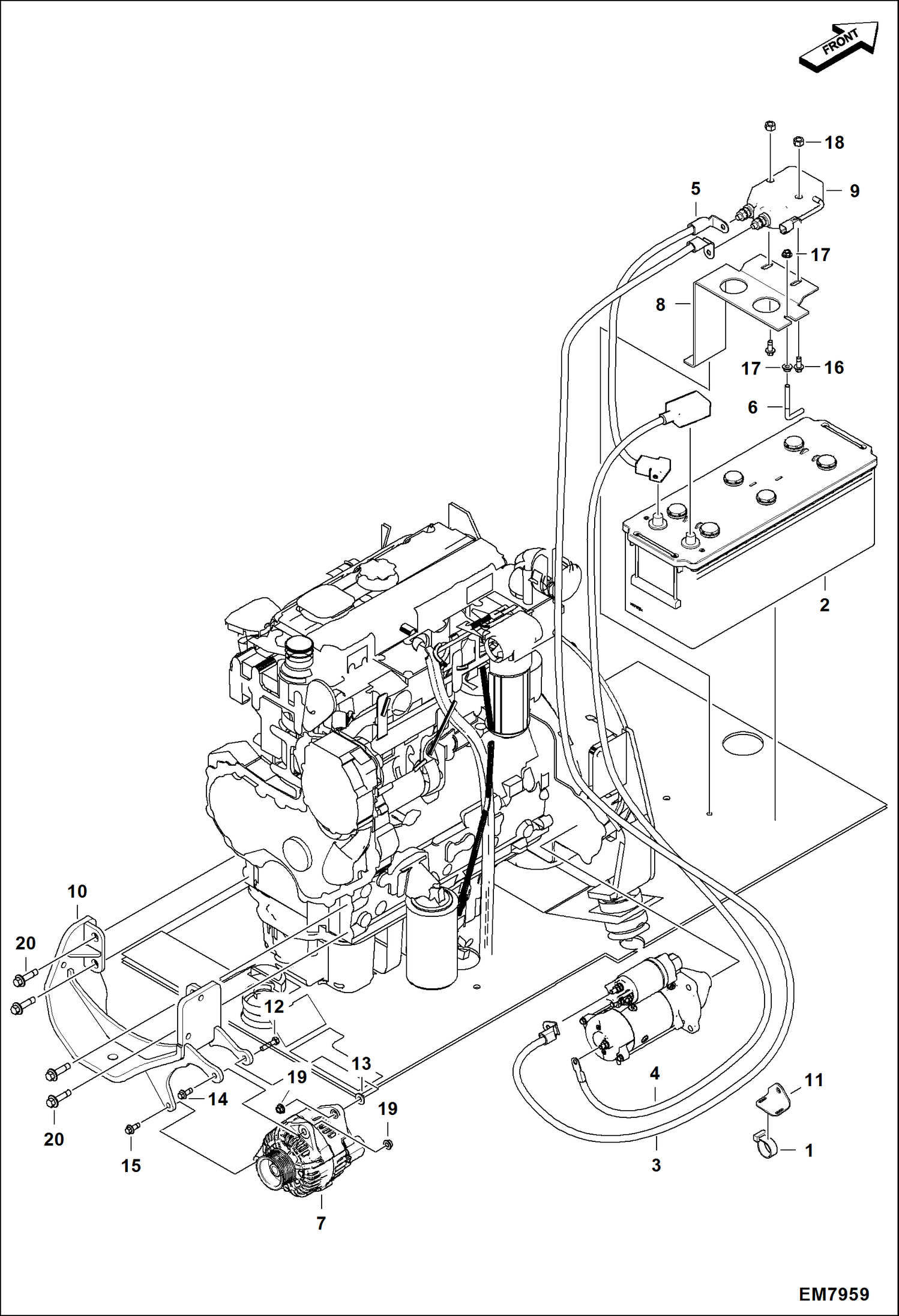

Схема запчастей Bobcat T40140 - COLD START (Engine Electrical Circuitry) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

6678669

STRAP

2

7159404

BATTERY

3

7162056

CABLE, STARTER

4

7162057

CABLE, BATTERY

5

7162058

CABLE, BATTERY

6

7165029

ROD, THREADED

7

7167687

ALTERNATOR See Illustration ALTERNATOR/ EM8250

8

7168527

HOLDER, BATTERY

9

7185643

SWITCH, BATTERY

10

7188461

SUPPORT

11

7201409

BRACKET, CABLE

12

1CM1040

BOLT

13

1EM100

WASHER

14

29CM1035

SCREW

15

29CM825

BOLT Was 29CM835 - A

16

29CM855

SCREW HX FLGD HD CAP

17

43DM8

NUT

18

4DM8

NUT

19

51DM10

NUT

20

59CM1635

SCREW

Выбрано товаров: 20
