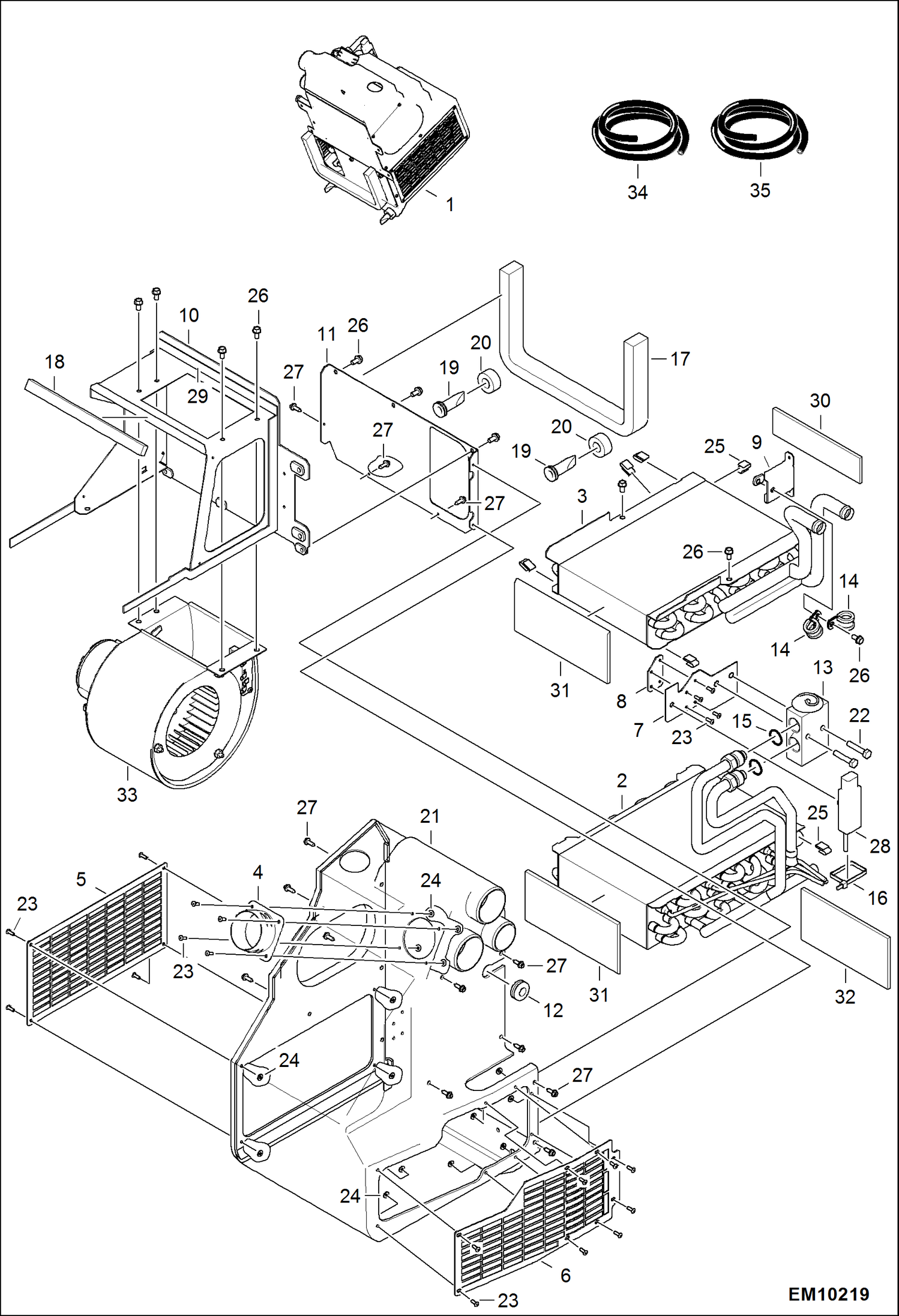

Запчасти Bobcat T40140 AIR CONDITIONING (Assembly) ACCESSORIES & OPTIONS

1

7217214

AIR CONDITIONING ASSY Ref. 2-33

2

7031320

COIL, EVAPORATOR

3

7031321

COIL, HEATER

4

7015465

HOSE

5

7015460

SIDE GRILL

6

7031322

GRILL, SIDE

7

7031323

BRACKET, VALVE

8

7031324

PLATE

9

7031325

BRACKET, CLAMP

10

7031326

FRAME, BASE

11

7031327

PLATE, BACK

12

7015458

WIRING HARNESS

13

7193538

BLOCK, VALVE A/C

14

6675512

CLAMP

15

7009977

O-RING Was 6675538 - A

16

6677113

TIE

17

SEAL NLA - 508 mm (20'') long - Order Ref. 34

18

SEAL NLA - 204 mm (8'') long - Order Ref. 35

19

7003463

VALVE, DRAIN

20

7015456

GASKET

21

7031328

CASING, PLASTIC

22

6691534

SCREW

23

7010691

POP RIVET

24

7031329

WASHER

25

7193785

CLIP

26

6691532

SCREW

27

6677579

SCREW

28

7015454

THERMOSTAT

29

6696953

FOAM

30

7022138

INSULATION

31

7010406

INSULATION, HEATER

32

7010406

INSULATION, HEATER

33

7015468

BLOWER 12V

34

6677111

SEAL bulk - sold per foot

35

7003460

SEAL, FOAM bulk - sold per foot
