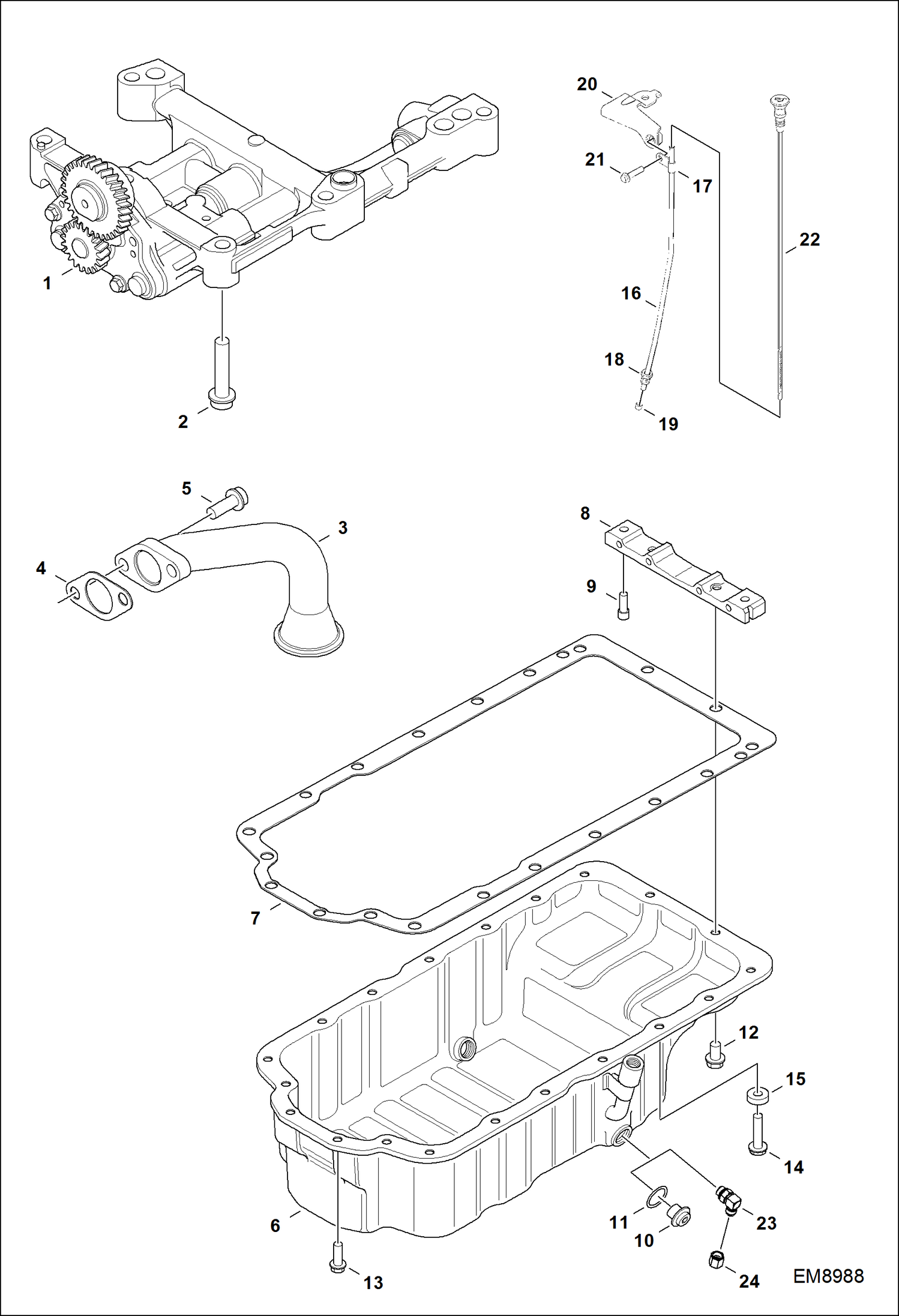

Запчасти Bobcat T40140 OIL PUMP & OIL SUMP POWER UNIT

1

6912010

OIL PUMP Was 7017252 - A

2

6912056

SCREW

3

6911956

SUCTION PIPE

4

6668678

GASKET

5

6668278

SCREW Was 7022446 - A

6

6911986

OIL PAN

7

6911970

SUMP JOINT

8

6911965

BRIDGE PIECE Was 7017229 - A

9

6668478

SCREW Was 7022442 - A

10

6649446

PLUG

11

6649447

O-RING

12

6671643

SCREW Was 7022554 - A

13

6668487

SCREW Was 7022453 - A

14

6668212

SCREW Was 7022440 - A

15

6911942

SPACER

16

7022500

TUBE, DIPSTICK W/Ref. 17-18

17

6911852

CLIP

18

NUT NLA - Order Ref. 16

19

6668485

SEAL

20

7022501

BRACKET

21

6668492

SCREW Was 7017264 - A

22

7022502

DIPSTICK
