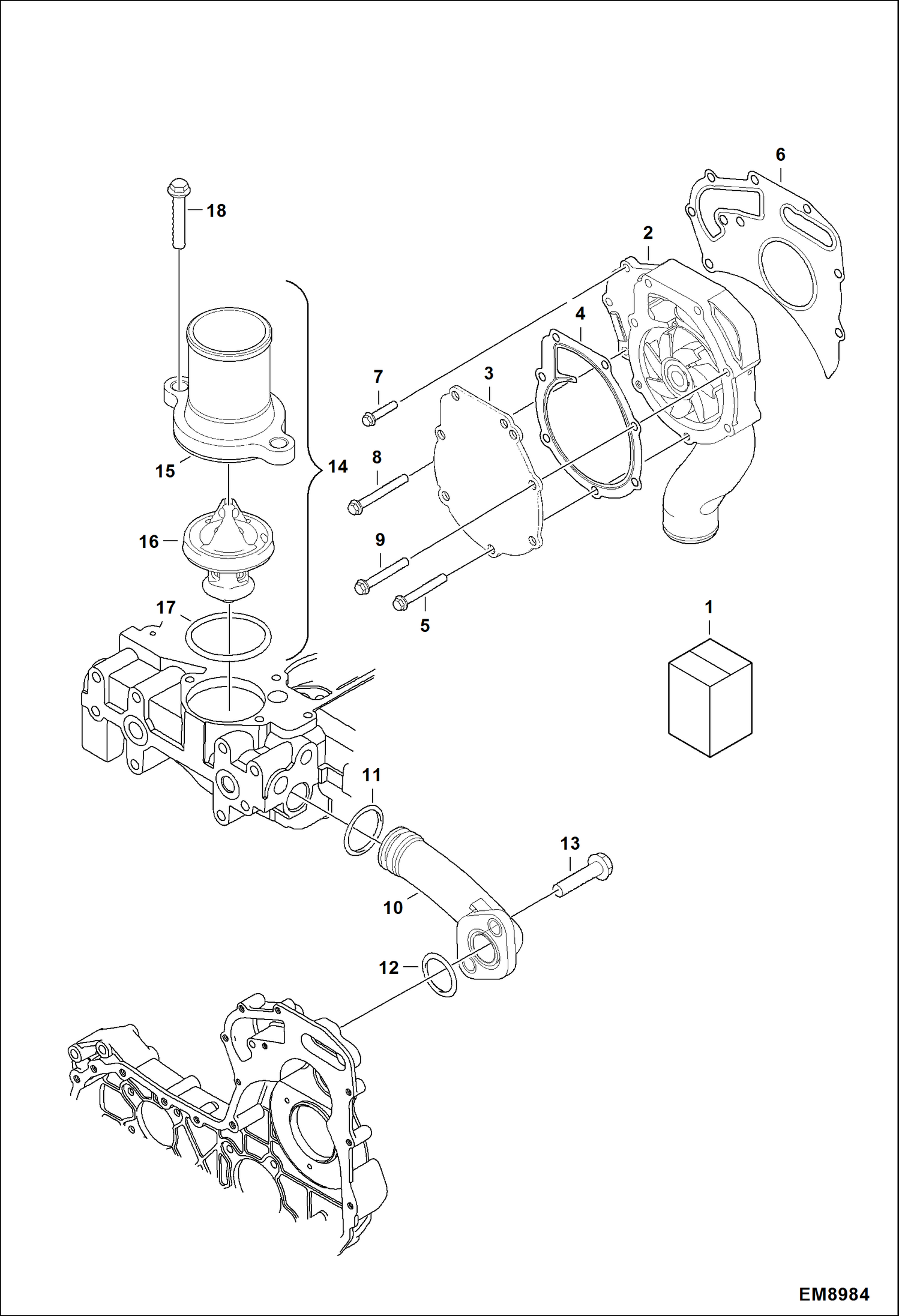

Запчасти Bobcat T40140 WATER PUMP & THERMOSTAT POWER UNIT

1

7012333

WATER PUMP KIT Ref. 2-6

2

PUMP, WATER NLA - Order Ref. 1

3

COVER NLA - Order Ref. 1

4

6924904

GASKET - WATER PUMP

5

7014148

SCREW Was 7022468 - A

6

6911974

WATER PUMP JOINT

7

6668268

SCREW Was 7022451 - A

8

6911873

SCREW

9

6672783

SCREW Was 7022457 - A

10

6912011

CONNECTION W/Ref. 11&12

11

6911886

O RING

12

6911885

O RING

13

6668212

SCREW Was 7022440 - A

14

7022469

THERMOSTAT, ASSY W/Ref. 15-17

15

CONNECTION NLA - Order Ref. 14

16

THERMOSTAT NLA - Order Ref. 14

17

6924940

SEAL - WATER OUTLET

18

6668278

SCREW Was 7022446 - A
