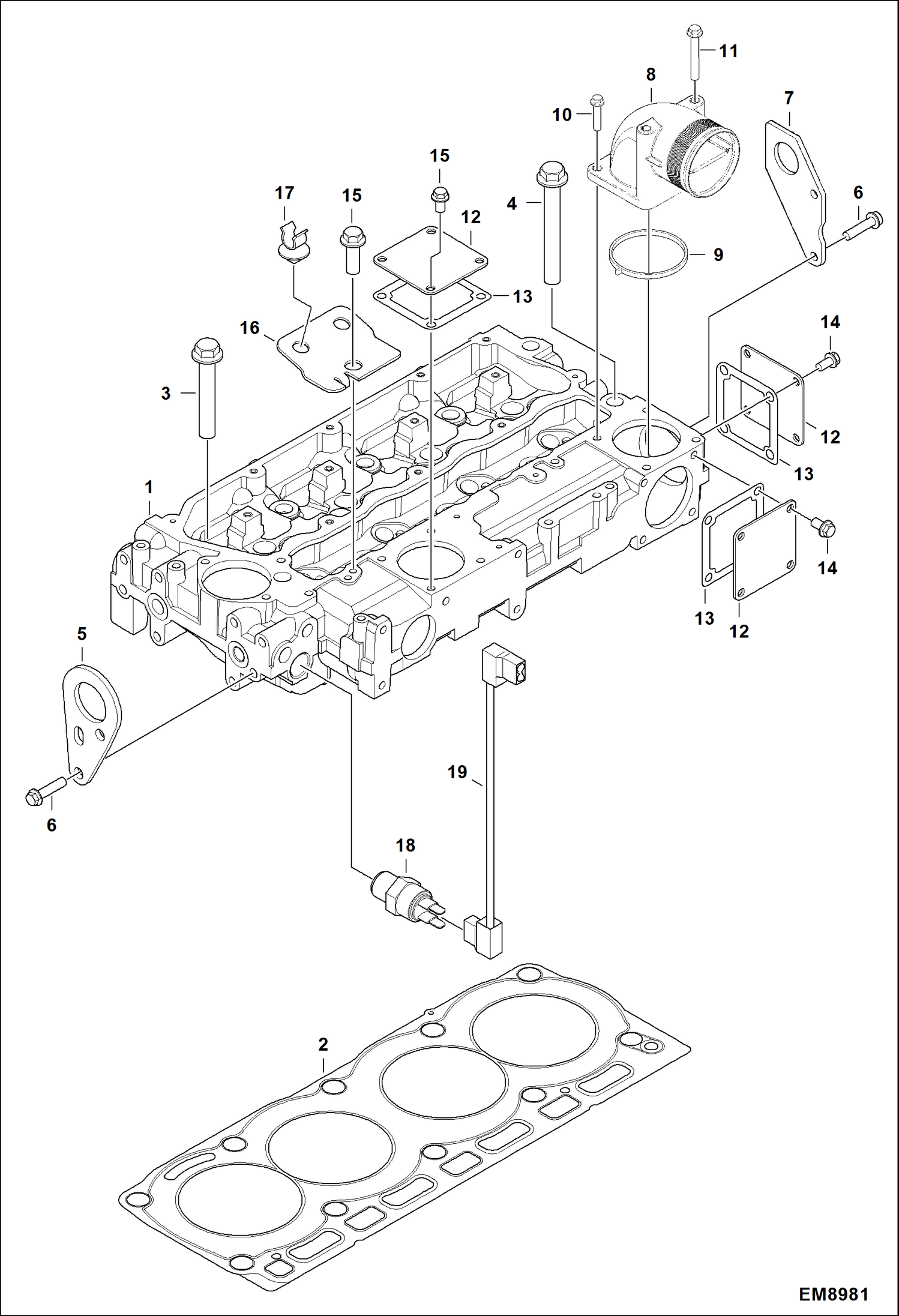

Запчасти Bobcat T40140 CYLINDER HEAD POWER UNIT

1

7010583

CYLINDER HEAD ASSY See Illustration CYLINDER HEAD ASSY/ EM8980

2

6924900

GASKET - CYLINDER HEAD

3

6911933

SCREW Was 7017239 - A

4

6911934

SCREW

5

6911961

LIFTING BRACKET

6

6668314

SCREW Was 7022448 - A

7

7022476

BRACKET

8

7022477

ELBOW W/Ref. 9

9

7022478

GASKET

10

6668495

SCREW Was 7022456 - A

11

7022479

SCREW

12

93404.2

PLATE Was 7017274 - A

13

6911975

SEAL Was 7017255 - A

14

6672302

SCREW Was 7022441 - A

15

6668487

SCREW Was 7022453 - A

16

6924331

BRACKET

17

6911890

CLIP

18

7022480

SWITCH, WATER TEMPERATURE

19

6912101

WIRING
