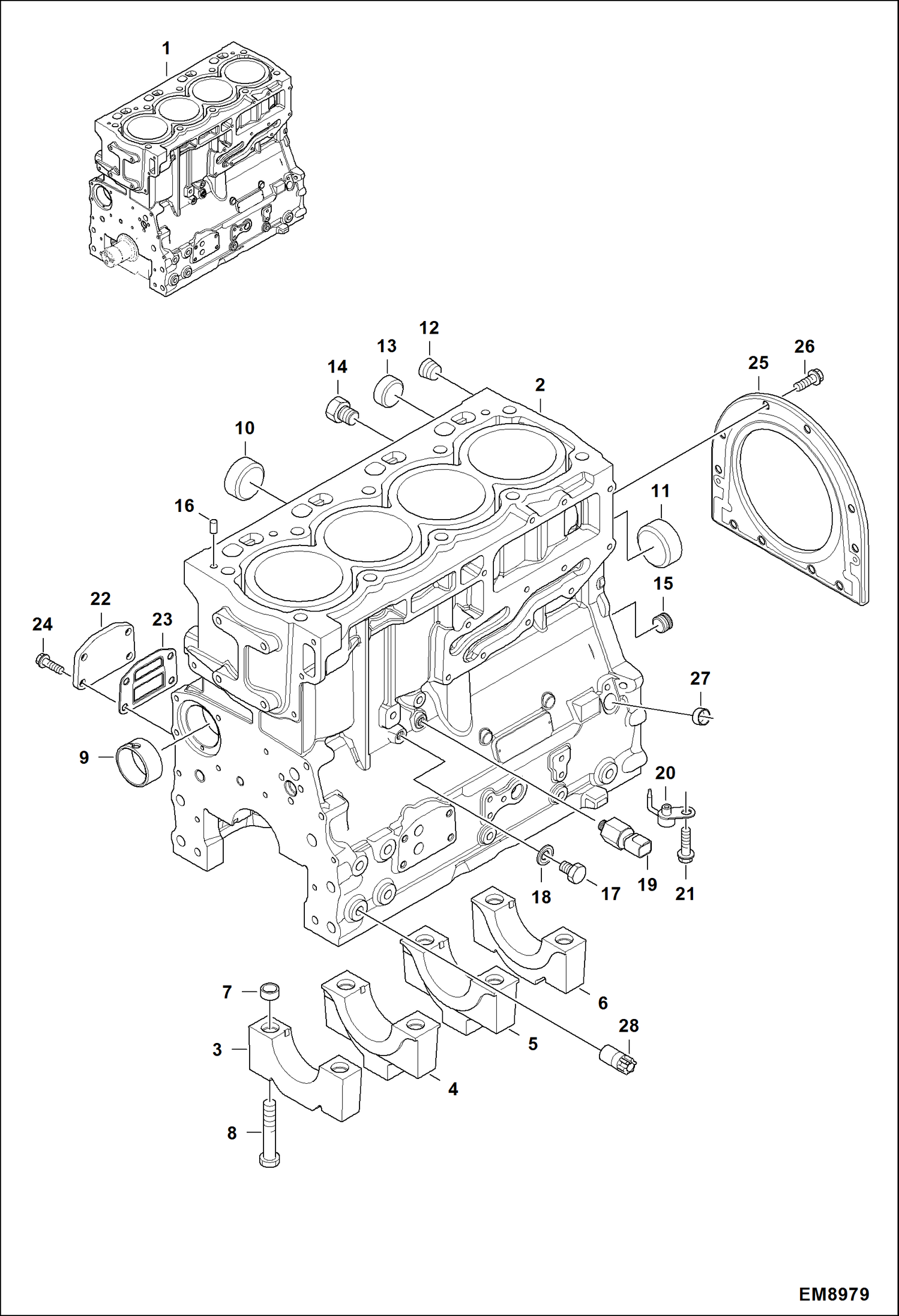

Запчасти Bobcat T40140 CYLINDER BLOCK POWER UNIT

1

7023158

CYLINDER BLOCK ASSY Ref. 2-24 Was 7022472 - A

2

CYLINDER BLOCK NLA - Order Ref. 1

3

CAP, BEARING NLA - Order Ref. 1

4

CAP, BEARING NLA - Order Ref. 1

5

CAP, BEARING NLA - Order Ref. 1

6

CAP, BEARING NLA - Order Ref. 1

7

3725302

SLEEVE Was 7017276 - A

8

6513096

BOLT

9

7023999

BUSHING CAMSHAFT Was 7017216 - A

10

6911936

PLUG Was 7017217 - A

11

6911937

PLUG Was 7017218 - A

12

7017219

PLUG

13

7017220

PLUG

14

7017221

PLUG

15

6911928

PLUG Was 7017222 - A

16

93379.6

Dowel Was 7017137 - A

17

6668565

SCREW Was 7017271 - A

18

6924949

WASHER Was 7017223 - A

19

7013137

SWITCH, OIL PRESSURE

20

6924924

PISTON COOLING JET Was 7017224 - A

21

71564.9

Screw Was 7017225 - A

22

6911964

BLANKING PLATE

23

6911983

SEAL

24

6668495

SCREW Was 7022456 - A

25

7017227

SEAL - OIL HOUSING

26

6912051

METRIC BOLT Was 7017228 - A

27

6911893

CORE PLUG

28

7022473

PLUG
