Запчасти Bobcat T40140 COOLING SYSTEM POWER UNIT

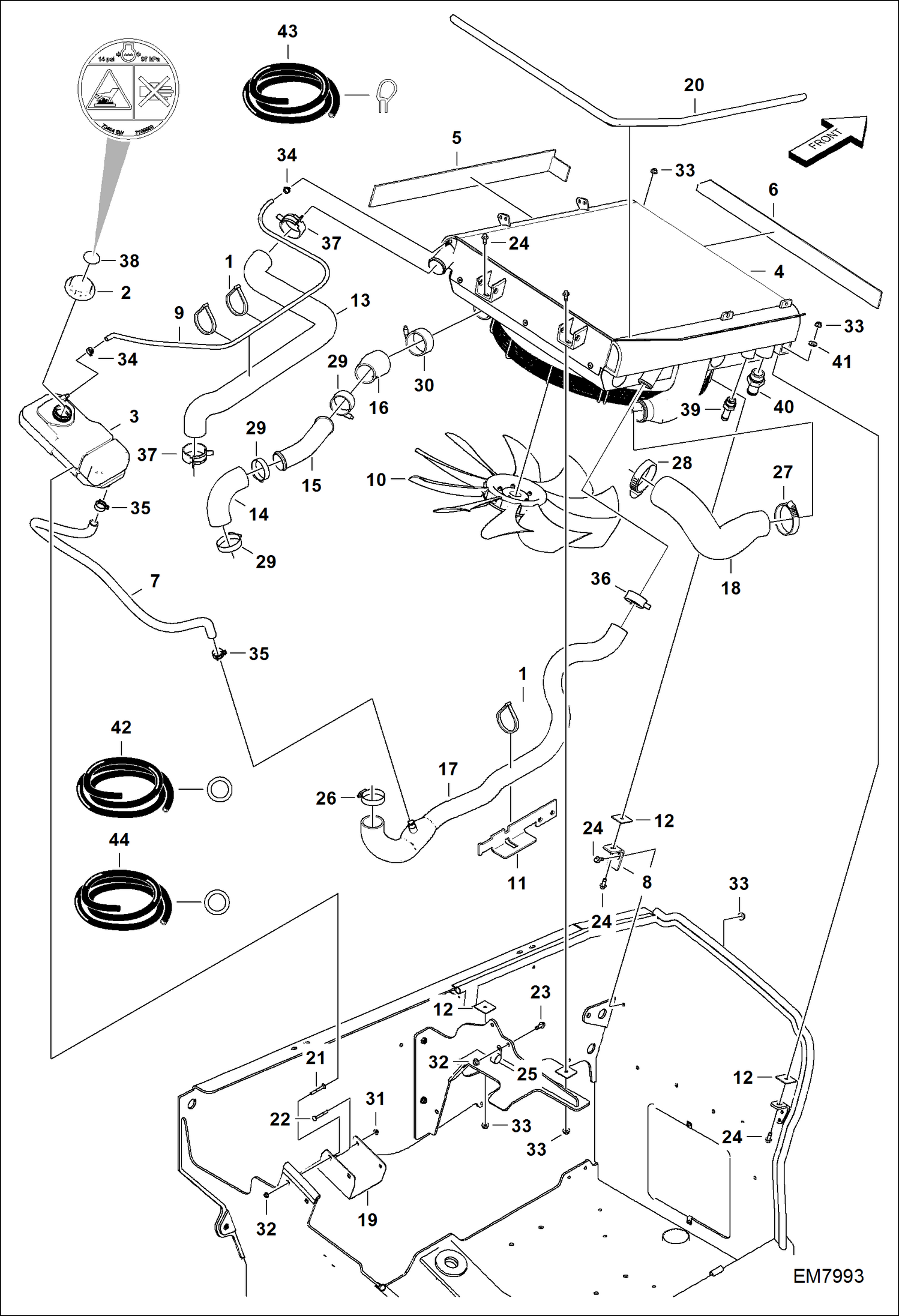

Схема запчастей Bobcat T40140 - COOLING SYSTEM POWER UNIT

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6733429

CAP W/Ref. 38

3

6736379

TANK

4

7165536

EXCHANGER See Illustration ENGINE & ATTACHING PARTS/ EM9012

5

7160822

GASKET, BASKET

6

7160823

GASKET, BASKET

7

HOSE, HYD NLA - 950 mm (37.40'') long - Order Ref. 41

8

7165753

HOLDER

9

HOSE, HYD NLA - 1270 mm (50'') long - Order Ref. 43

10

7172760

FAN

11

7173464

HOLDER

12

7185583

GASKET, HOLDER

13

7228261

HOSE, RADIATOR Was 7188688 - B

14

7188730

HOSE, RADIATOR AIR

15

7188755

PIPE, AIR

16

7188756

HOSE, RADIATOR AIR

17

7189265

HOSE, RADIATOR

18

7189266

HOSE, RADIATOR AIR

19

7191213

MOUNT, COOLANT TANK

20

GASKET, RIB COOLER NLA - 1382 mm (54.41'') long - Order Ref. 42

21

28CM1020

BOLT

22

28CM816

BOLT

23

29CM1025

BOLT

24

29CM825

BOLT

25

30H94

COLLAR

26

42H36

CLAMP 5

27

42H40

HOSECLAM5

28

42H52

CLAMP

29

42HC250

CLAMP

30

42HC300

CLAMP

31

43DM8

NUT

32

51DM10

NUT

33

51DM8

NUT

34

5HM14

CLAMP

35

5HM24

CLAMP

36

5HM53

CLAMP

37

5HM61

HOSECLAMP

38

7169699

DECAL

39

1310706

FITTING HOSE

40

6805839

FITTING

41

6578172

HOSE bulk - sold per foot

42

7196170

GASKET bulk - sold per foot

43

6577822

HOSE bulk - sold per foot

Выбрано товаров: 43
