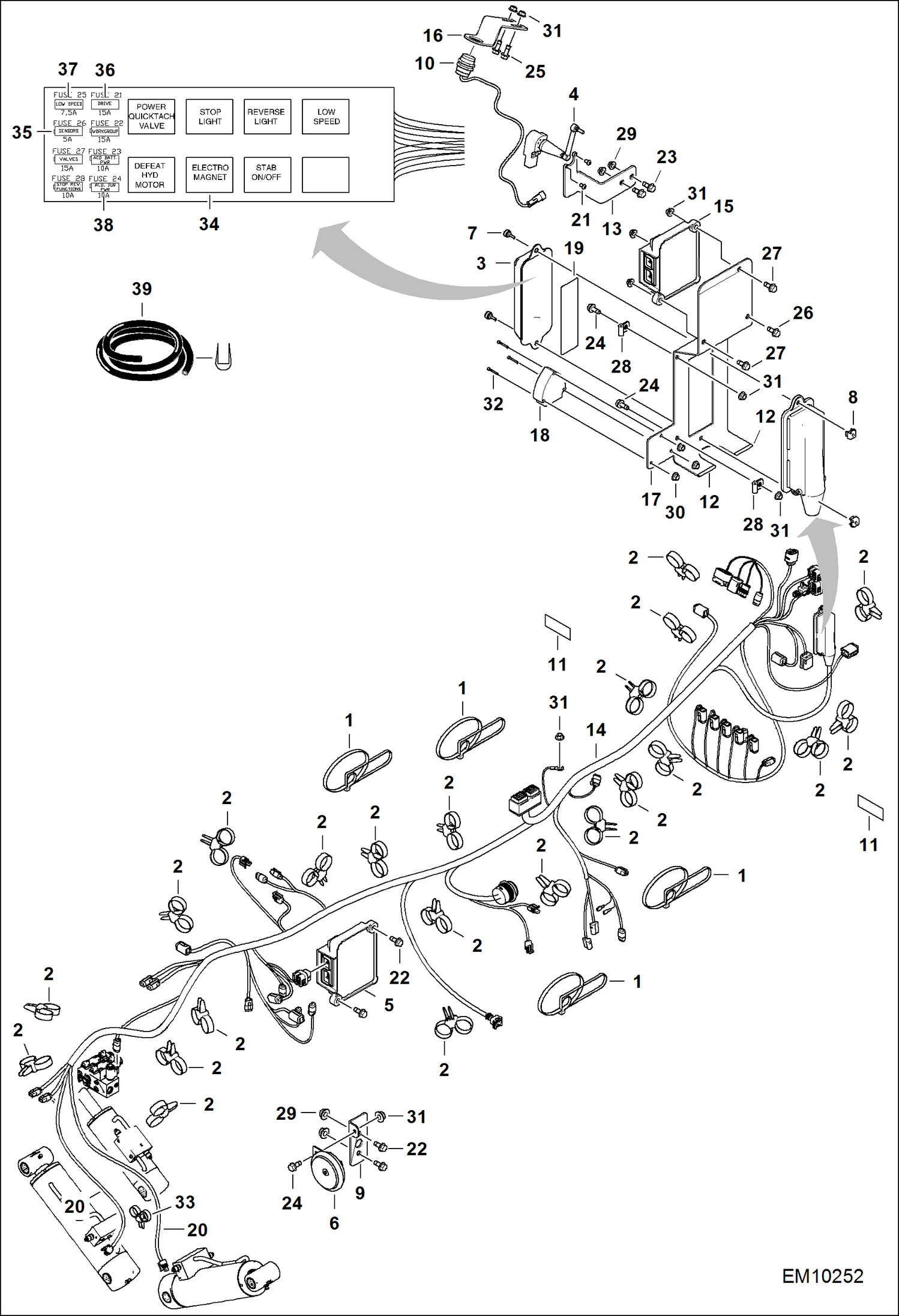

Запчасти Bobcat T40140 FRAME ELECTRICAL CIRCUITRY (Harness) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6678668

STRAP, DUAL TIE

3

6716621

COVER

4

7164102

SENSOR, BOOM ANGLE

5

7164106

CONTROLLER, DRIVE

6

7164107

HORN

7

7181242

SCREW

8

7181243

NUT

9

7191369

BRACKET, HORN

10

7209507

SENSOR, RETRACT

11

7214281

DECAL, REFLECTIVE

12

GASKET NLA - 50mm (1.97'') long - Order Ref. 38

13

7223160

BRACKET, BOOM SENSOR

14

7223216

HARNESS, FRAME

15

7225682

CONTROLLER, WORKGROUP

16

7232278

BRACKET, SENSOR

17

7232451

BRACKET, FUSE

18

7232853

SENSOR

19

7233336

DECAL, FUSE & RELAY

20

7237531

HARNESS, STABILIZER

21

27CM510

SCREW

22

29CM1025

BOLT

23

29CM1030

BOLT

24

29CM816

SCREW

25

29CM825

BOLT

26

29CM830

CAPSCREW

27

29CM840

SCREW

28

30H49

CLAMP

29

51DM10

NUT

30

51DM5

NUT

31

51DM8

NUT

32

6GM535

SCREW

33

6679820

RELAY

34

6663289

FUSE, 5A 5A

35

6654806

FUSE, 15A 15A

36

6654804

FUSE 7.5A

37

6654805

FUSE 10A 10A

38

7223052

SEAL, FOAM bulk - sold per foot
