Запчасти Bobcat T40140 ENGINE ELECTRICAL CIRCUITRY (Battery, Alternator & Starter) ELECTRICAL SYSTEM

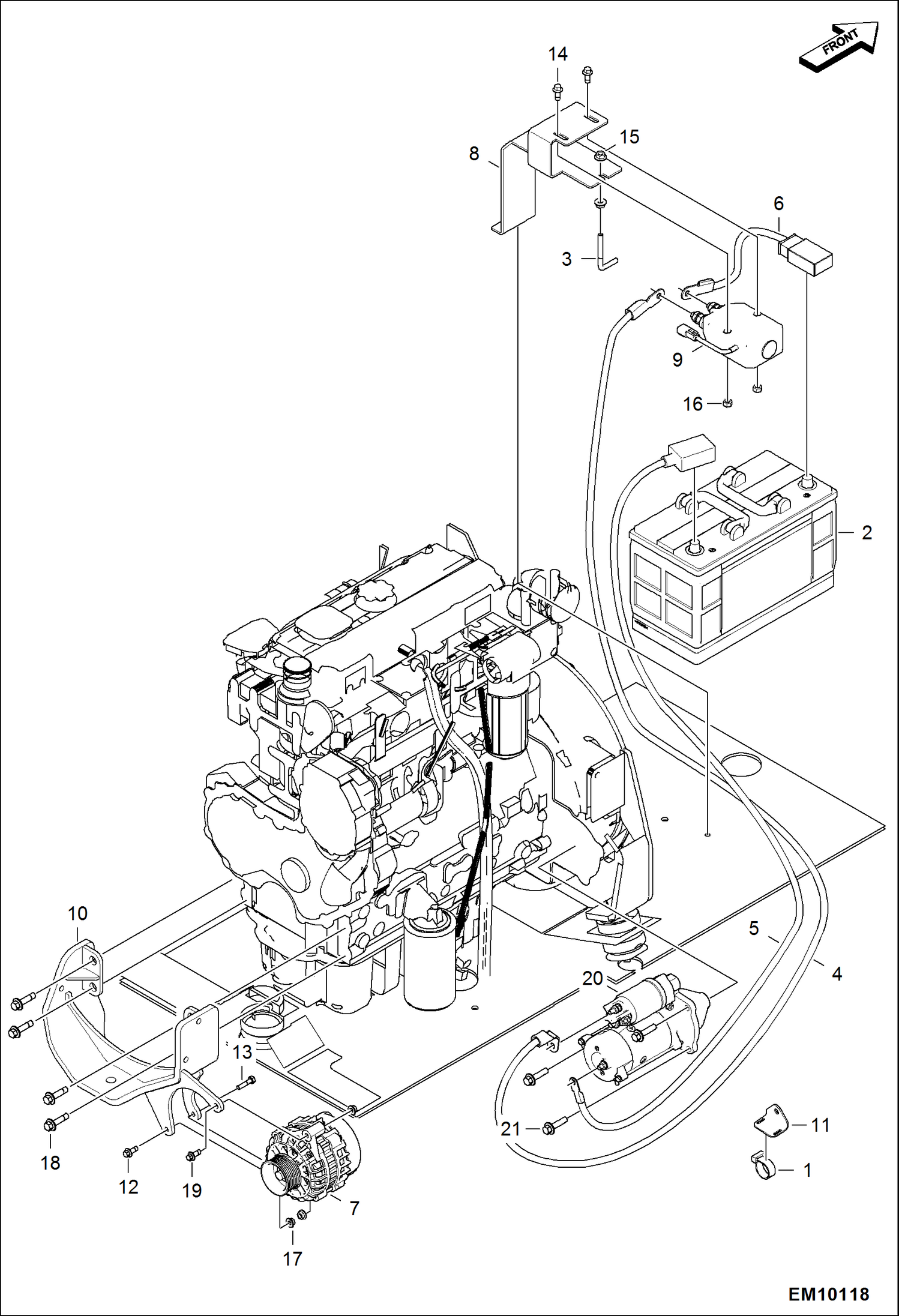

Схема запчастей Bobcat T40140 - ENGINE ELECTRICAL CIRCUITRY (Battery, Alternator & Starter) ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

6678669

STRAP

2

7223985

BATTERY

3

7165029

ROD, THREADED

4

7166224

CABLE

5

7166225

CABLE

6

7166226

CABLE

7

7167686

ALTERNATOR See Illustration ALTERNATOR/ EM8249

8

7176918

HOLDER, BATTERY

9

7185643

SWITCH, BATTERY

10

7186812

HOLDER, W/A

11

7201409

BRACKET, CABLE

12

29CM835

BOLT

13

29CM840

SCREW

14

29CM855

SCREW HX FLGD HD CAP

15

43DM8

NUT

16

4DM8

NUT

17

51DM8

NUT

18

59CM1635

SCREW

19

59CM825

Screw Hex FLNG W/T8.8

20

7169477

STARTER, 3.2KW

21

29CM1030

BOLT

Выбрано товаров: 21
