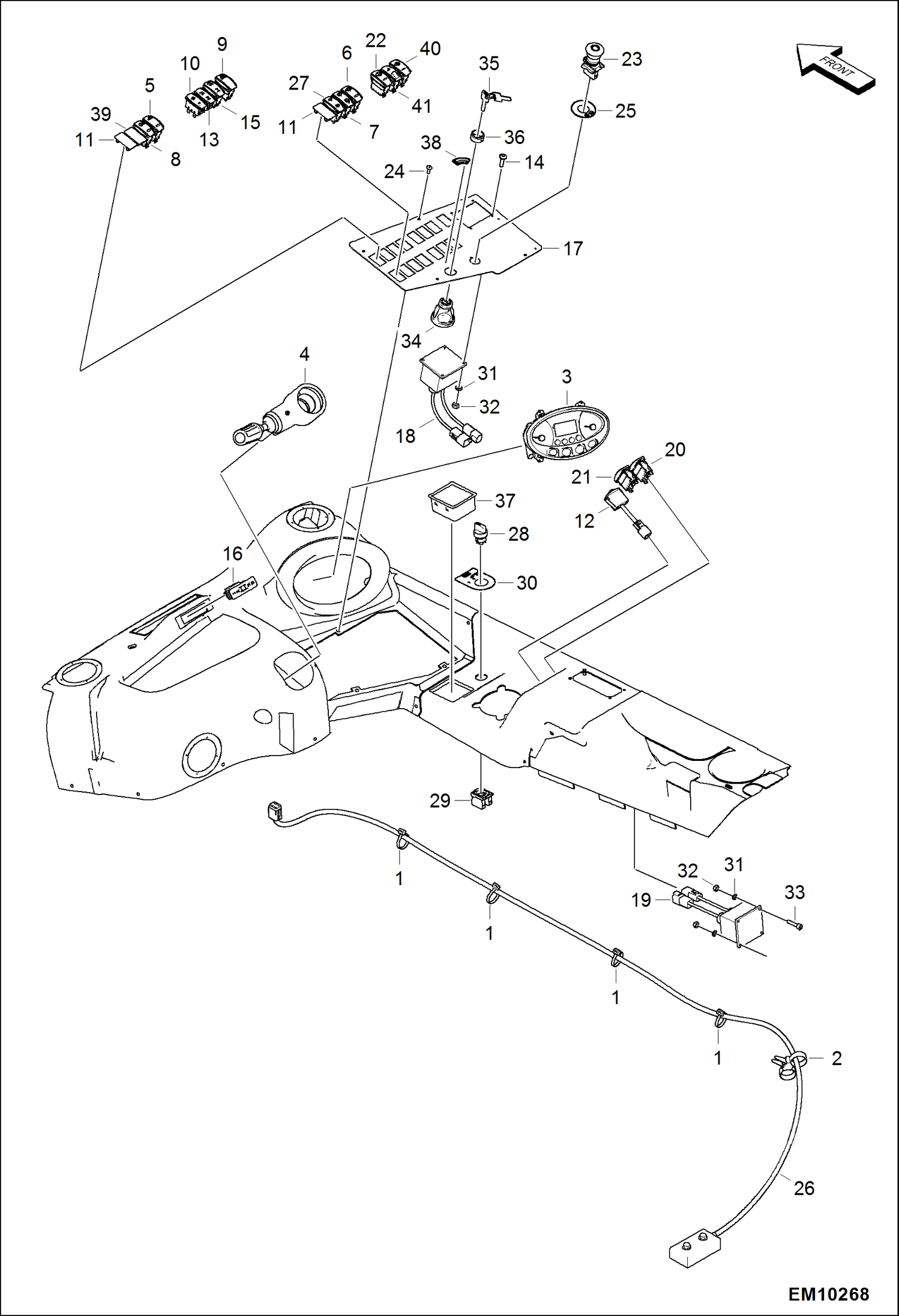

Запчасти Bobcat T40140 CAB ELECTRICAL CIRCUITRY (Dashboard) ELECTRICAL SYSTEM

1

6624289

STRAP, TIE

2

6678668

STRAP, DUAL TIE

3

7163144

CONTROLLER, DISPLAY

4

7168334

LEVER, LH

5

7172085

SWITCH Creep

6

7172087

SWITCH Front Wiper

7

7172089

SWITCH Front/Rear Washer

8

7172093

SWITCH Fog Light

9

7172096

SWITCH Warning

10

7172104

LAMP, BRAKE TURN

11

7178513

CAP, SOCKET

12

7183822

POTENTIOMETER, FRAME LEVELING

13

7193578

LAMP, STEERING

14

7198946

SCREW

15

7198947

SWITCH Steer Mode

16

7211934

ICONS, LAMP

17

7218267

PLATE

18

7221194

INDICATOR, LONGITUDINAL LOAD MOMENT

19

7221195

CONTROLLER, LONGITUDINAL LOAD MOMENT

20

7226869

SWITCH Right Stabitizer

21

7226870

SWITCH Left Stabilizer

22

7226871

SWITCH Stabilizer

23

7226872

SWITCH, PUSH BUTTON

24

7228975

SCREW

25

7229123

DECAL, EMERGENCY SWITCH

26

7229124

SENSOR, LLMI-LLMC

27

7230360

SWITCH Wiper

28

7239654

SWITCH, ROTARY

29

7239655

CONTACT, SWITCH ROTARY

30

7239659

DECAL, KNOB SWITCH

31

15EM40

WASHER

32

4DM4

NUT

33

6GM420

SCREW

34

6693245

SWITCH, IGN W/Ref. 35

35

7203341

KEY IGNITION Was 6709527 - A

36

7000328

ADAPTER, SWITCH IGN

37

7211550

CONTAINER, STORAGE

38

7215386

DECAL, IGNITION KEY

39

7178513

CAP, SOCKET (W/O option)

39

7172095

SWITCH, ROCKER beacon - (W/option beacon)

40

7178513

CAP, SOCKET (W/O option)

40

7172094

SWITCH, ROCKER fan inverter - (W/option fan inverter)

41

7178513

CAP, SOCKET (W/O option)

41

7230359

SWITCH Quick-Tach - (W/option Quick-Tach)
