Запчасти Bobcat T40140 HYDROSTATIC PUMP (78cc) (Assembly) HYDROSTATIC SYSTEM

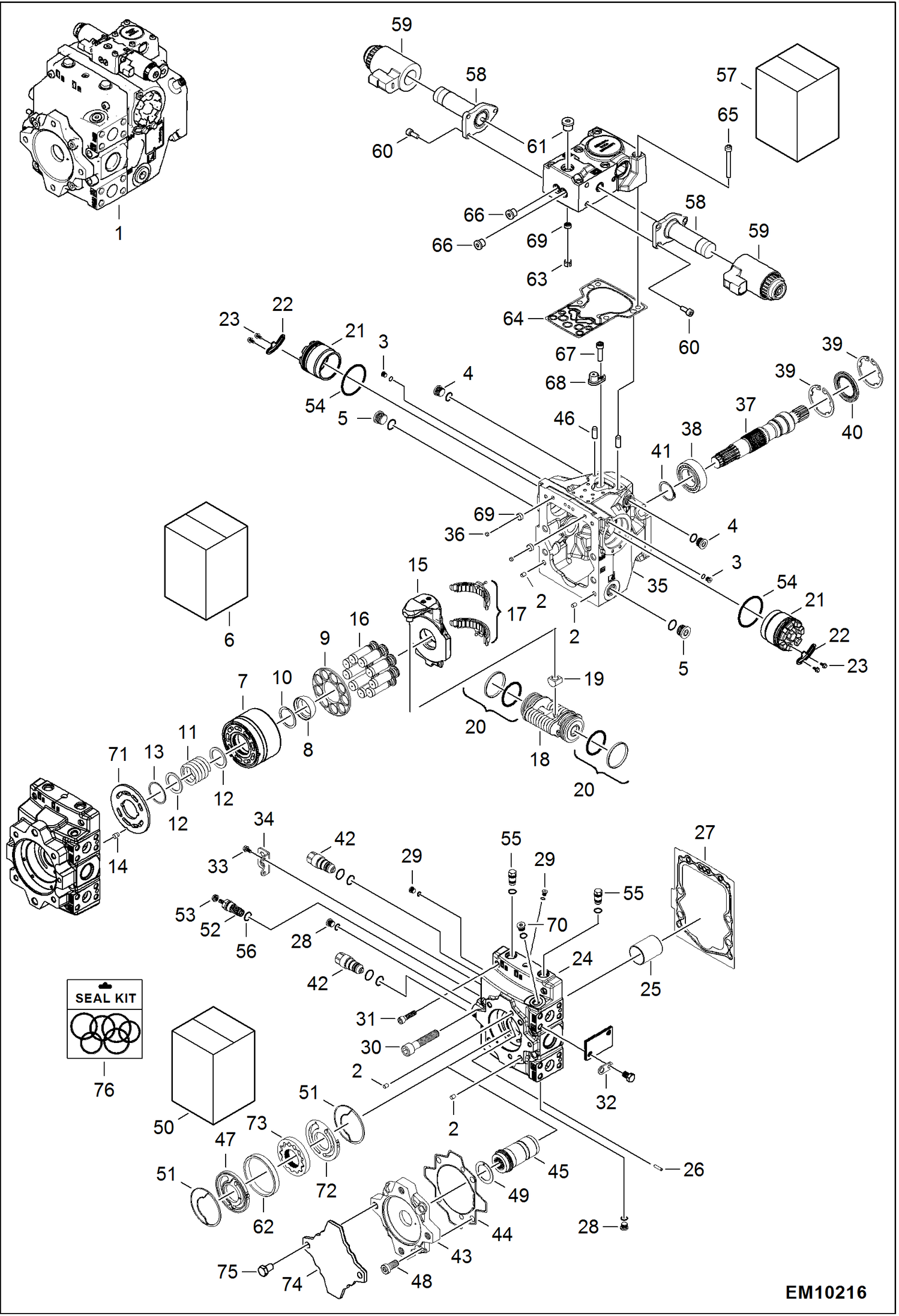

Схема запчастей Bobcat T40140 - HYDROSTATIC PUMP (78cc) (Assembly) HYDROSTATIC SYSTEM

Артикул

Название

Примечание

Количество

1

7217145

PUMP, HYDROSTATIC Ref. 2-73

2

PIN, DOWEL NLA - Order Ref. 1

3

PLUG ASSY NLA - Order Ref. 1

3

O-RING NLA - Order Ref. 1

4

PLUG ASSY NLA - Order Ref. 1

4

O-RING NLA - Order Ref. 1

5

PLUG NLA - Order Ref. 1

5

O-RING NLA - Order Ref. 1

6

7021870

KIT, CYLINDER BLOCK Ref. 7-13 & 16

7

7031349

BLOCK, CYLINDER

8

7031347

RETAINER, GUIDE

9

7021873

RETAINER, SLIPPER

10

7031348

WASHER, SPRING

11

SPRING, CYLINDER NLA - Order Ref. 6

12

WASHER NLA - Order Ref. 6

13

RING, RETAINING NLA - Order Ref. 6

14

PIN, PLATE NLA - Order Ref. 1

15

7031338

SWASHPLATE

16

7021880

KIT, PISTON

17

7021881

SWASHPLATE, BEARING KIT

18

PISTON, SERVO ASSY NLA - Order Ref. 1 - W/Ref. 19-20

19

7021883

BLOCK, SLIDER

20

KIT, SEAL NLA - Order Ref. 1

21

7031334

CYLINDER, SERVO

22

7031335

PLATE, LOCKING

23

SCREW NLA - Order Ref. 1

24

7031342

END CAP, ASSY W/Ref. 25-26

25

BEARING NLA - Order Ref. 1

26

ORIFICE NLA - Order Ref. 1

27

GASKET, END CAP NLA - Order Ref. 1

28

PLUG NLA - Order Ref. 1

29

7022520

PLUG

30

SCREW NLA - Order Ref. 1

31

SCREW NLA - Order Ref. 1

32

BRACKET, LIFTING NLA - Order Ref. 1

33

SCREW NLA - Order Ref. 1

34

BRACKET, LIFTING NLA - Order Ref. 1

35

HOUSING ASSY NLA - Order Ref. 1 - W/Ref. 36 & 69

36

SCREEN NLA - Order Ref. 1

37

7021895

SHAFT

38

7031333

BEARING, ROLLER

39

7021897

RING, RETAINING

40

7021799

SEAL, LIP

41

7021898

RING, RETAINING

42

7031340

VALVE, ASSY

42

7021903

O-RING

42

7031339

O-RING

43

ADAPTER NLA - Order Ref. 1

44

7021899

SEAL, ADAPTER

45

7021900

COUPLING

46

PIN, DOWEL NLA - Order Ref. 57

47

7031346

PLATE, PORT

48

SCREW NLA - Order Ref. 1

49

7008840

THRUST PLATE

50

7021906

CHARGE PUMP, KIT Ref. 47, 51, 62 & 72

51

7021907

RING, SEAL

52

7008874

CHARGE RELIEF VALVE KIT W/Ref. 53 & 56

53

7031341

NUT

54

O-RING NLA - Order Ref. 1

55

PLUG, PRESSURE NLA - Order Ref. 1

55

7024697

O-RING

56

7024698

O-RING

57

7031330

KIT, CONTROL Ref. 58-61, 63-65 & 69

58

7008838

PROPORTIONAL SOLENOID 12V - W/Ref. 59

59

7008867

DEUTSCH CONNECTOR 12V

60

SCREW NLA - Order Ref. 57

61

PLUG ASSY NLA - Order Ref. 57

61

O-RING NLA - Order Ref. 57

62

7031345

CHARGE, PUMP

63

RING, LOCKING NLA - Order Ref. 57

64

7022351

GASKET, CONTROL

65

SCREW NLA - Order Ref. 57

66

7022520

PLUG

67

7031331

SCREW

68

7031332

CARRIER, MAGNET

69

7008839

SCREEN

70

6921561

PLUG

71

7031350

PLATE, VALVE

72

7031343

PLATE, PORT

73

7031344

GEROTOR

74

7021917

KIT, SEAL

Выбрано товаров: 81
