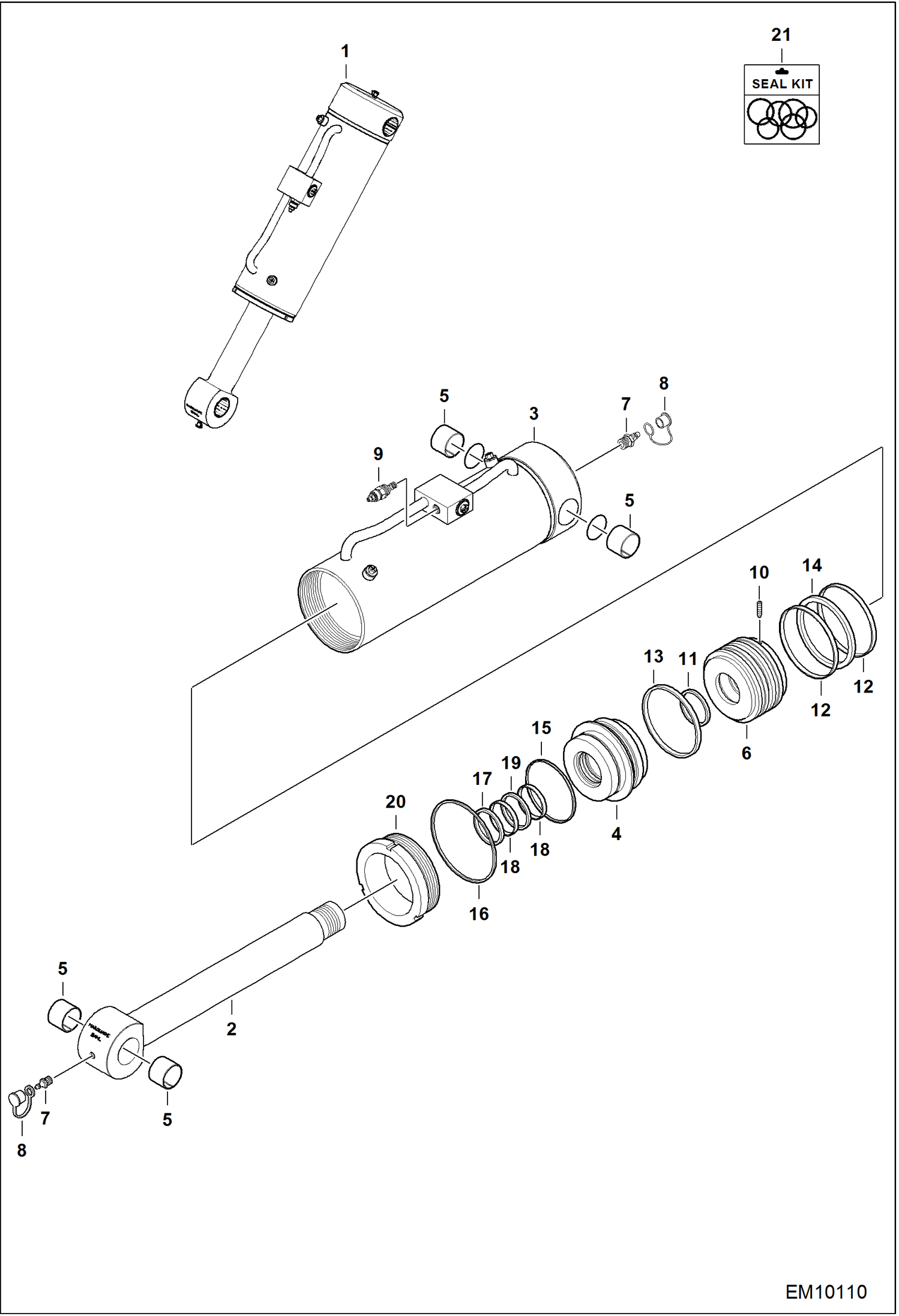

Запчасти Bobcat T40140 TILT CYLINDER HYDRAULIC SYSTEM

1

7212287

CYLINDER, TILT Ref. 2-20 Was 7232711 - B,D

2

7024415

KIT, ROD W/Ref. 6

3

7031318

KIT, CASING W/Ref. 4

4

7024413

HEAD, CYLINDER

5

7022407

BUSHING

6

7030221

PISTON

7

GREASER NLA

8

CAP NLA

9

VALVE NLA

10

SCREW, SET NLA

11

O-RING NLA - Order Ref. 21

12

RING, WEAR NLA - Order Ref. 21

13

RING, BACKUP NLA - Order Ref. 21

14

SEAL NLA - Order Ref. 21

15

O-RING NLA - Order Ref. 21

16

RING, BACKUP NLA - Order Ref. 21

17

WIPER NLA - Order Ref. 21

18

RING, WEAR NLA - Order Ref. 21

19

SEAL NLA - Order Ref. 21

20

NUT NLA

21

7024411

KIT, SEAL Ref. 11-19
