Запчасти Bobcat T40140 LIFT CYLINDER HYDRAULIC SYSTEM

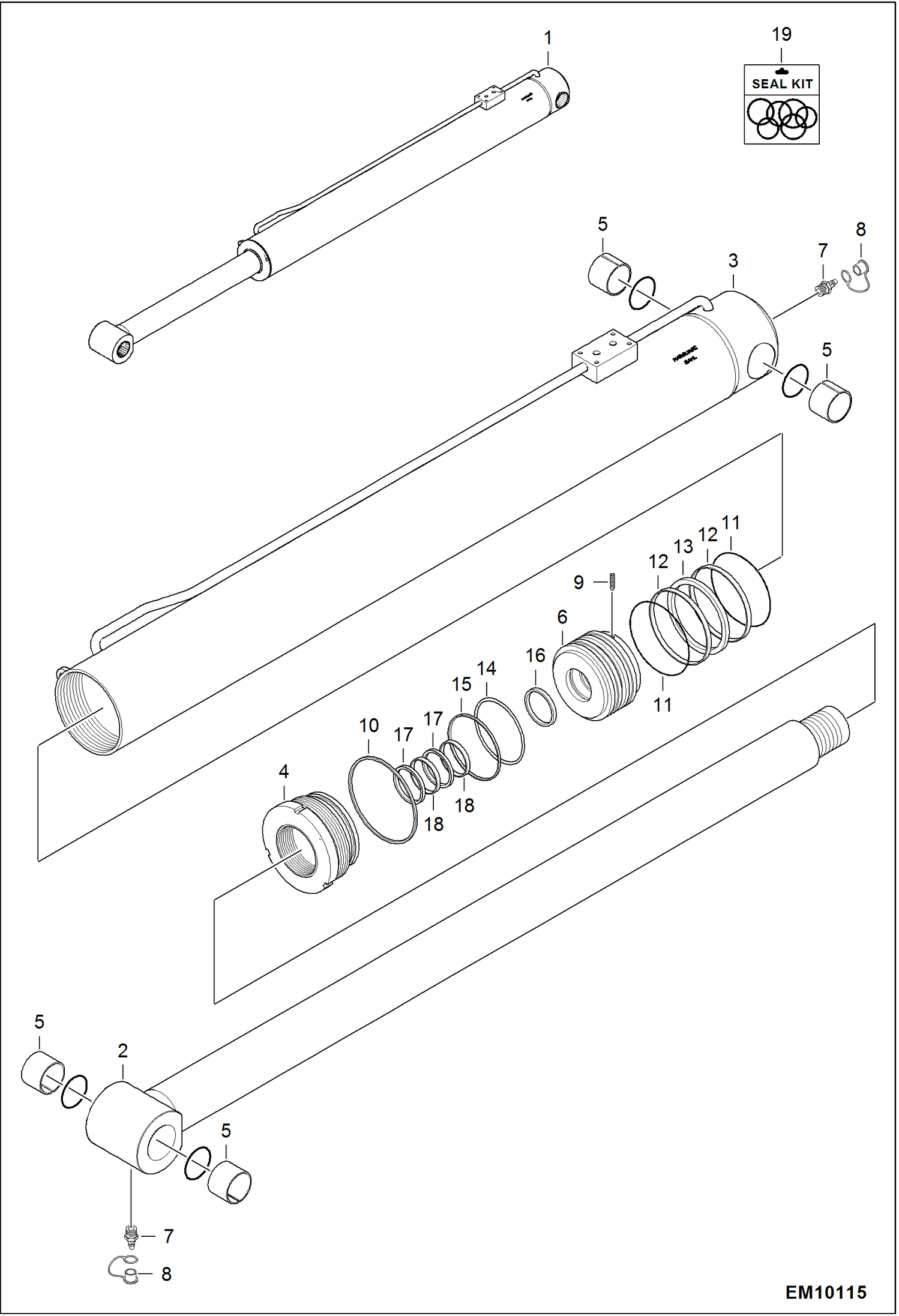

Схема запчастей Bobcat T40140 - LIFT CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7212290

CYLINDER, LIFT Ref. 2-18

2

7030207

KIT, ROD W/Ref. 6

3

7030208

KIT, CASING W/Ref. 4

4

7030210

HEAD, CYLINDER

5

7030217

BEARING Was 7030211 - B

6

7030209

PISTON

7

GREASER NLA

8

CAP NLA

9

SCREW, SET NLA

10

O-RING NLA - Order Ref. 19

11

RING, WEAR NLA - Order Ref. 19

12

RING, BACKUP NLA - Order Ref. 19

13

SEAL NLA - Order Ref. 19

14

O-RING NLA - Order Ref. 19

15

SEAL NLA - Order Ref. 19

16

SEAL NLA - Order Ref. 19

17

RING, WEAR NLA - Order Ref. 19

18

WIPER NLA - Order Ref. 19

19

7030212

KIT, SEAL Ref. 10-18

Выбрано товаров: 19
