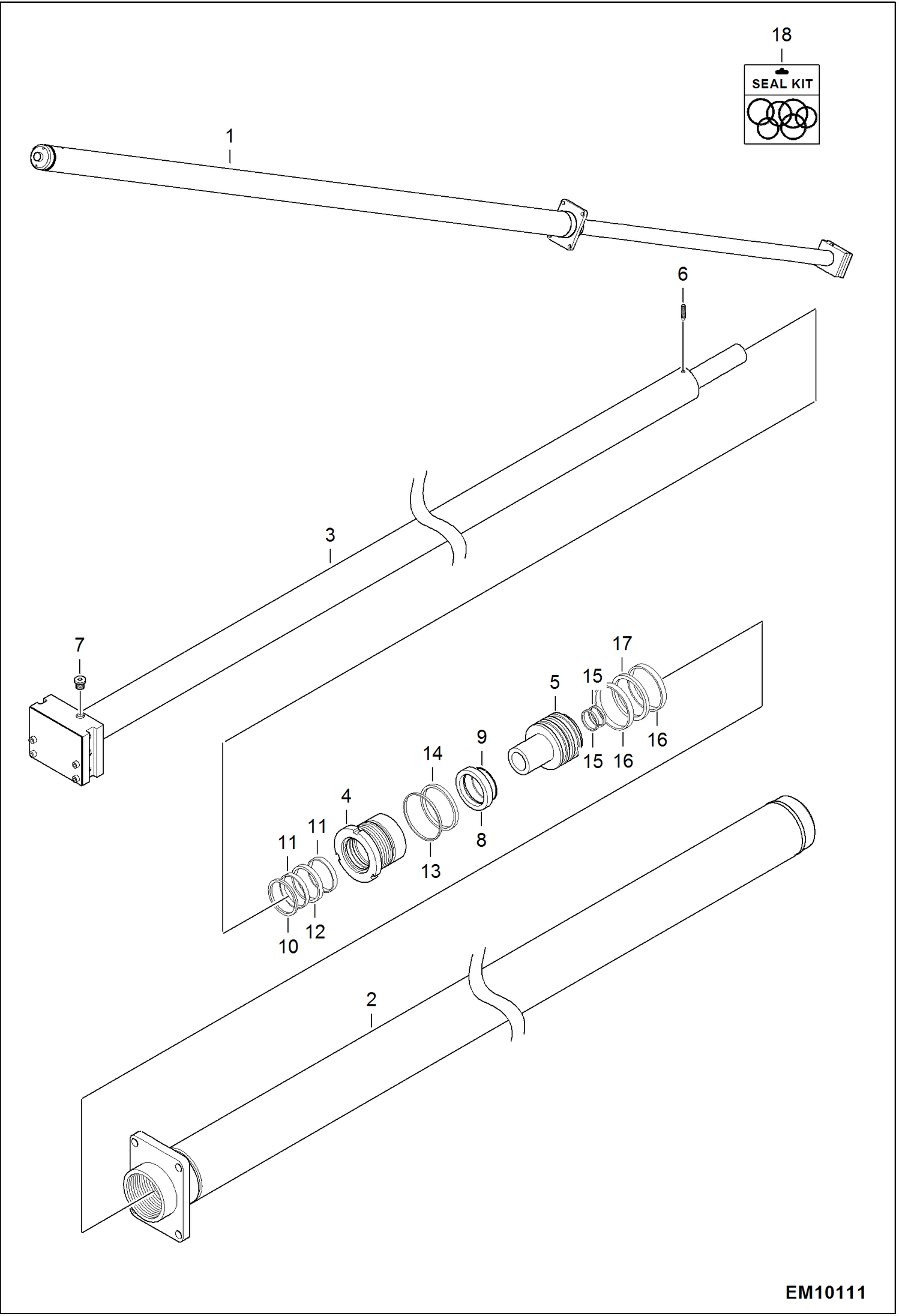

Запчасти Bobcat T40140 EXTENSION CYLINDER HYDRAULIC SYSTEM

1

7215525

CYLINDER, EXTENSION Ref. 2-17

2

7030223

KIT, CASING W/Ref. 4

3

7030222

KIT, ROD W/Ref. 5

4

7030225

HEAD, CYLINDER

5

7030224

PISTON

6

SCREW NLA

7

PLUG NLA

8

STOP NLA

9

RING NLA

10

WIPER NLA - Order Ref. 18

11

RING, WEAR NLA - Order Ref. 18

12

SEAL NLA - Order Ref. 18

13

O-RING NLA - Order Ref. 18

14

SEAL NLA - Order Ref. 18

15

SEAL NLA - Order Ref. 18

16

RING, WEAR NLA - Order Ref. 18

17

SEAL NLA - Order Ref. 18

18

7030226

KIT, SEAL Ref. 10-17
