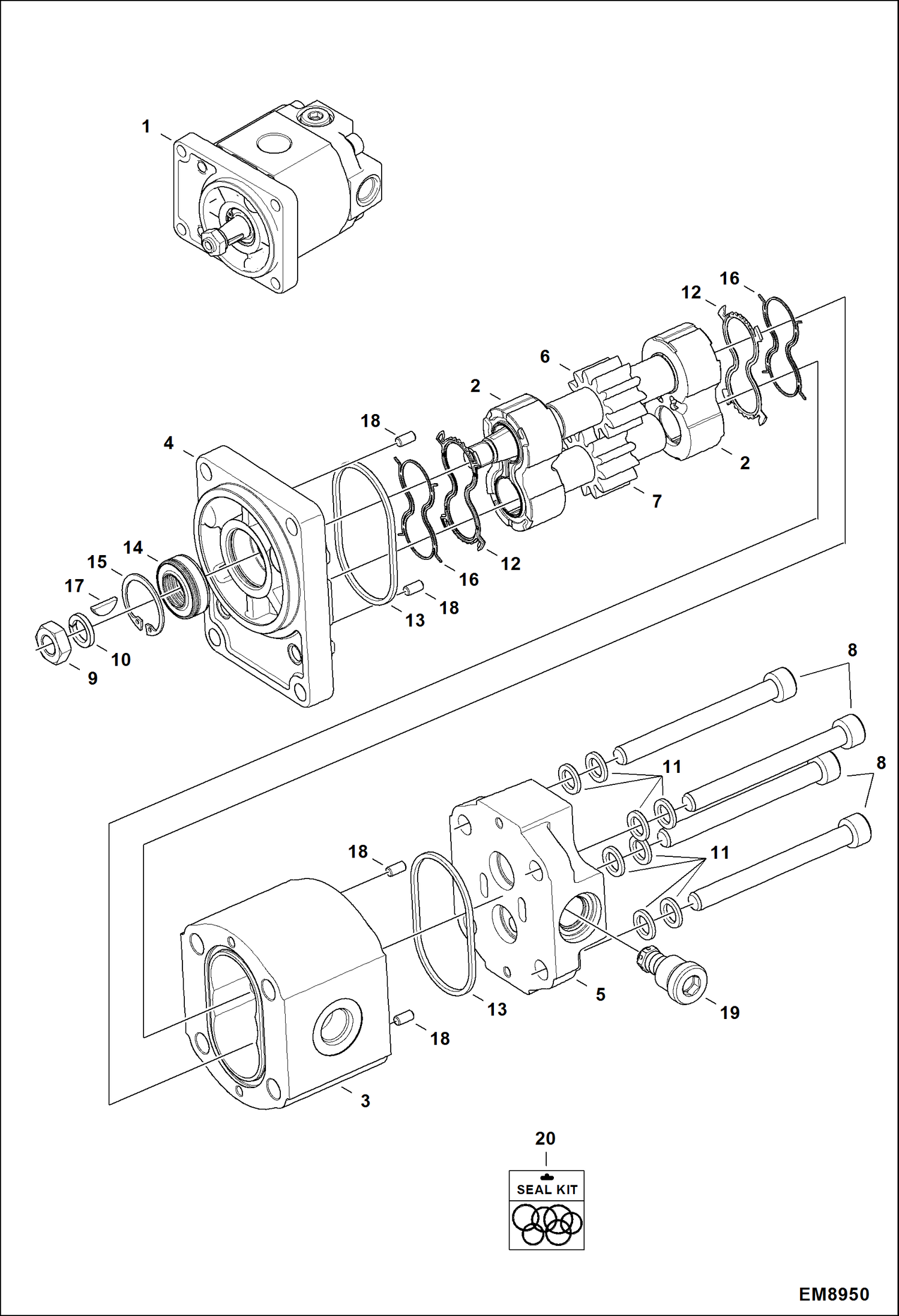

Запчасти Bobcat T40140 FAN MOTOR HYDRAULIC SYSTEM

1

7166643

MOTOR, FAN Ref. 2-19

2

PLATE, THRUST NLA Was 7009585 - A

3

HOUSING NLA - Order Ref. 1

4

COVER, FRONT NLA Was 7009587 - A

5

7022193

COVER, REAR

6

7022194

SHAFT, DRIVE

7

7022195

GEAR, DRIVEN

8

6688050

BOLT, SINGLE

9

NUT NLA Was 7009591 - A

10

WASHER NLA Was 7009593 - A

11

6679160

WASHER

12

7022196

SEAL

13

6683386

SEAL

14

7022197

SEAL, SHAFT

15

6682429

SNAP RING

16

7022198

SEAL

17

KEY NLA Was 7009594 - A

18

6679168

DOWEL PIN

19

6912539

VALVE

20

7022677

KIT, SEAL
