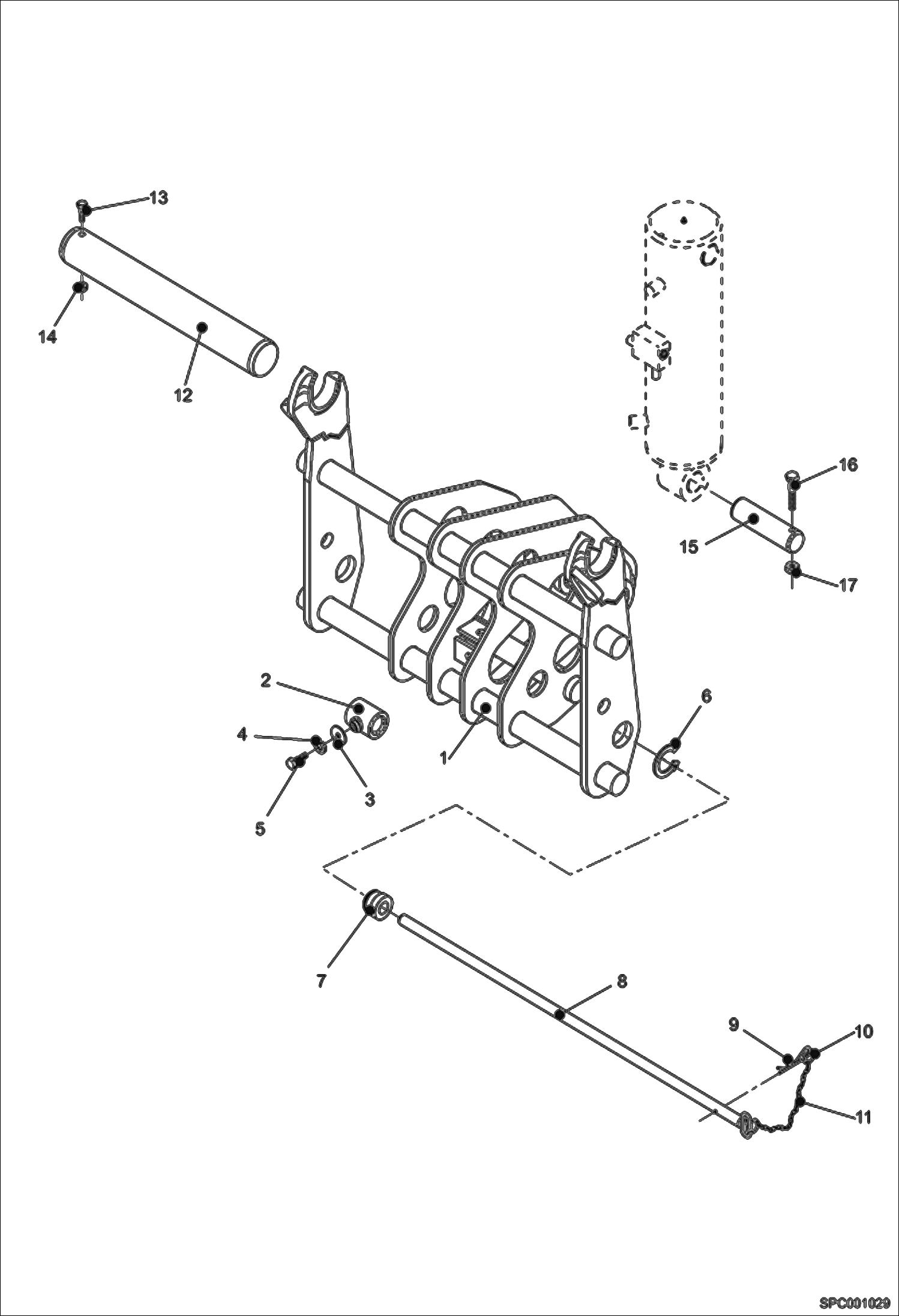

Запчасти Bobcat T40140 MANUAL QUICK ATTACH LOCK (WIDE) MAIN FRAME

1

84097.5

Wide quick attach

2

84848.1

Support

3

000350-06A

WASHER

4

13778.6

Washer

5

1CM1630

BOLT Was 10882.9 - A

6

50027.2

Clip

7

77488.5

Bearing

8

84195.7

Spindle

9

7214793

PIN, HAIR Was 95428.9 - A

10

7168942

RING Was 58158.7 - B

11

7215741

CHAIN 0,30 m - Sold per meter Was 48792.6 - A

12

7214176

PIN Was 77421.6 - A

13

82459.9

Screw

14

100345-09A

NUT

15

7214127

PIN Was 80400.5 - A

16

7CM10100

SCREW HEX Was 65397.2 - A

17

100345-09A

NUT
