Запчасти Bobcat T40140 HYDRAULIC CIRCUITRY (Steering) HYDRAULIC SYSTEM

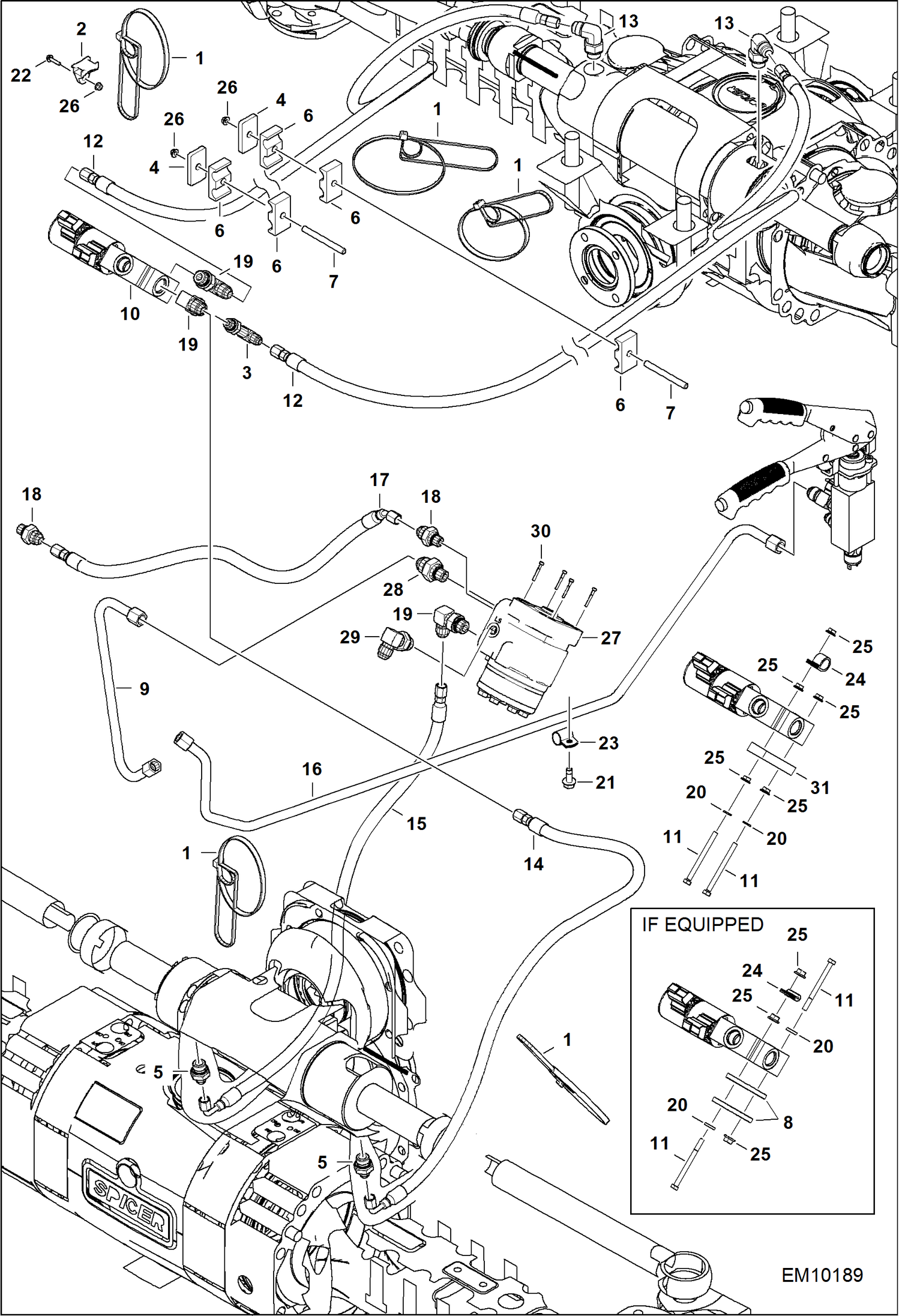

Схема запчастей Bobcat T40140 - HYDRAULIC CIRCUITRY (Steering) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6678818

MOUNT

3

6812815

FITTING

4

7166734

PLATE

5

7168452

FITTING, HYD

6

7169680

CLAMP

7

7174163

ROD, THREADED

8

7199068

PLATE, CLAMP

9

7223440

TUBELINE, HYD

10

7224008

VALVE, STEERING

11

7225505

SCREW

12

7228464

HOSE, HYD

13

7228465

FITTING, HYD ELBOW

14

7229058

HOSE, HYD

15

7229059

HOSE, HYD

16

7237270

TUBELINE, HYD

17

7238343

HOSE, HYD

18

15KB0606

FITTING, HYD CONNECTOR

18

79K6

O RING 10

19

17KB0606

FITTING

19

79K6

O RING 10

20

1EM60

WASHER

21

29CM812

BOLT

22

29CM830

CAPSCREW

23

30H30

CLAMP

24

30H53

CLIP

25

43DM6

NUT

26

43DM8

NUT

27

7224013

VALVE

28

15KB0808

FITTING, HYD CONNECTOR

28

79K8

O RING 10

29

17KB0404

FTG HYD ELBOW 90

29

79K4

O RING 10

30

6GM1020

SCREW

Выбрано товаров: 34
