Запчасти Bobcat T40140 HYDRAULIC CIRCUITRY (Gear Pump) HYDRAULIC SYSTEM

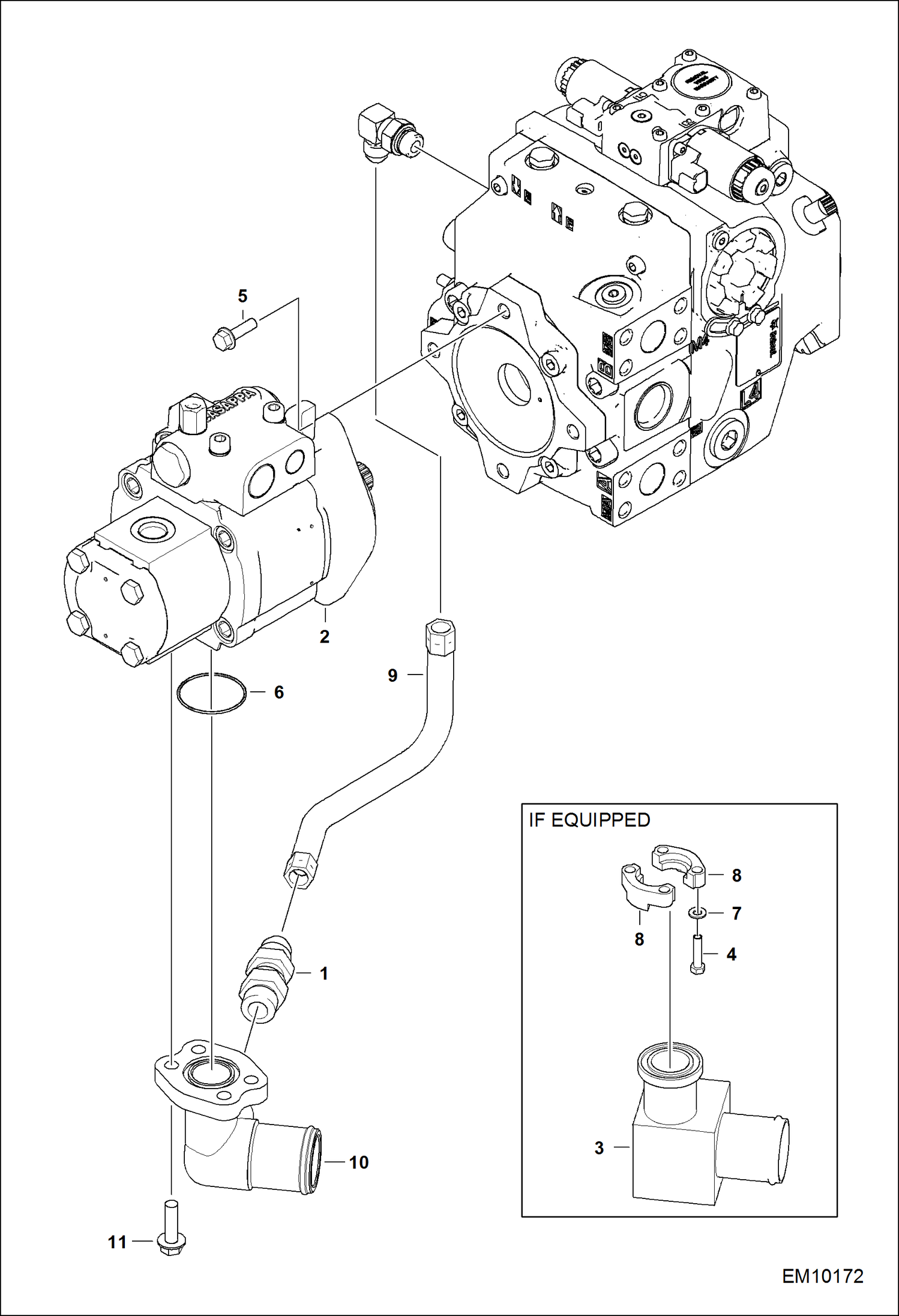

Схема запчастей Bobcat T40140 - HYDRAULIC CIRCUITRY (Gear Pump) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

7170303

FITTING, HYD

2

7221246

PUMP, GEAR See Illustration GEAR PUMP/ EM10204

3

7225778

FITTING, HYD

4

1CM1035

BOLT

5

29CM1230

BOLT

6

15KB0608

FITTING, HYD CONNECTOR

6

79K8

O RING 10

7

15KB0810

FITTING, HYD CONNECTOR

7

79K10

O RING 10

8

58K222

O-RING

9

17KB0404

FTG HYD ELBOW 90

9

79K4

O RING 10

10

18EM1019

WASHER

11

19J20

CLAMP

12

7199989

TUBE, HYD

Выбрано товаров: 15
