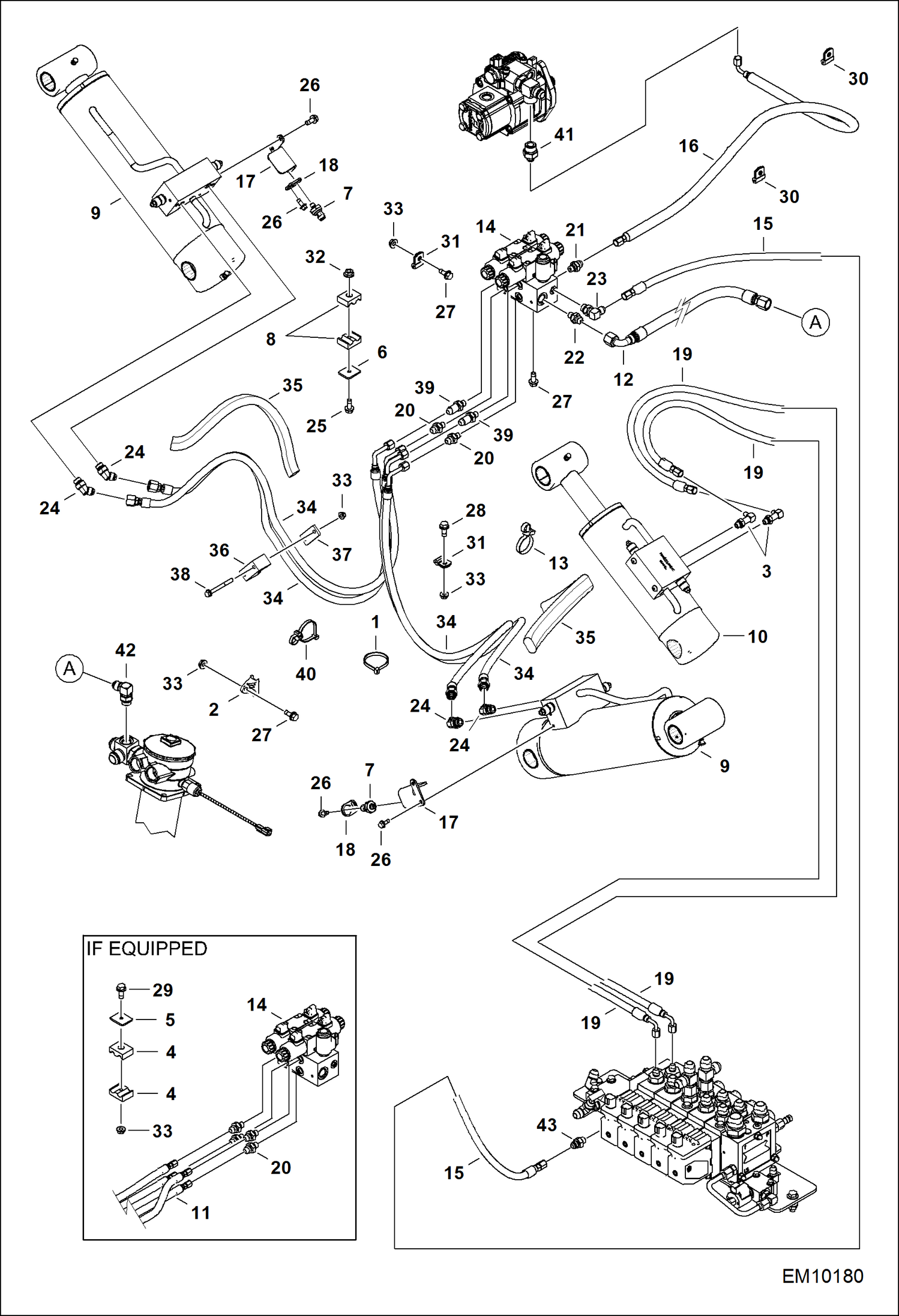

Запчасти Bobcat T40140 HYDRAULIC CIRCUITRY (Frame Leveling Stabilizer) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6678818

MOUNT

3

6802867

ELBOW

4

7166732

CLAMP, PIPE

5

7166734

PLATE

6

7183474

PLATE, COVER

7

7190003

SENSOR, PRESSURE

8

7202247

CLAMP

9

7212855

CYLINDER, STABILIZER See Illustration STABILIZER CYLINDER/ EM10113

10

7212856

CYLINDER, FRAME LEVELING See Illustration FRAME LEVELING CYLINDER/ EM10112

11

7215912

HOSE, HYD

12

7220782

HOSE, HYD

13

7221316

TIE, DUAL STRAPS

14

7228368

BLOCK

15

7228443

HOSE, HYD

16

7233106

HOSE, HYD

17

7235542

PLATE, COVER

18

7235673

PLATE, LOCK

19

7235733

HOSE, HYD

20

15KB0606

FITTING, HYD CONNECTOR

20

79K6

O RING 10

21

15KB0808

FITTING, HYD CONNECTOR

21

79K8

O RING 10

22

15KB1010

FITTING, HYD CONNECTOR

22

79K10

O RING 10

23

17KB0404

FTG HYD ELBOW 90

23

79K4

O RING 10

24

18KB0808

FTG HYD ELBOW 45 45 degrees

24

79K8

O RING 10

25

29CM650

SCREW

26

29CM812

BOLT

27

29CM825

BOLT

28

29CM830

CAPSCREW

29

29CM860

BOLT

30

30H49

CLAMP

31

30H57

CLAMP

32

43DM6

NUT

33

43DM8

NUT
