Запчасти Bobcat T40140 END BOOM ASSY (S/N 363311001 - 12000) MAIN FRAME

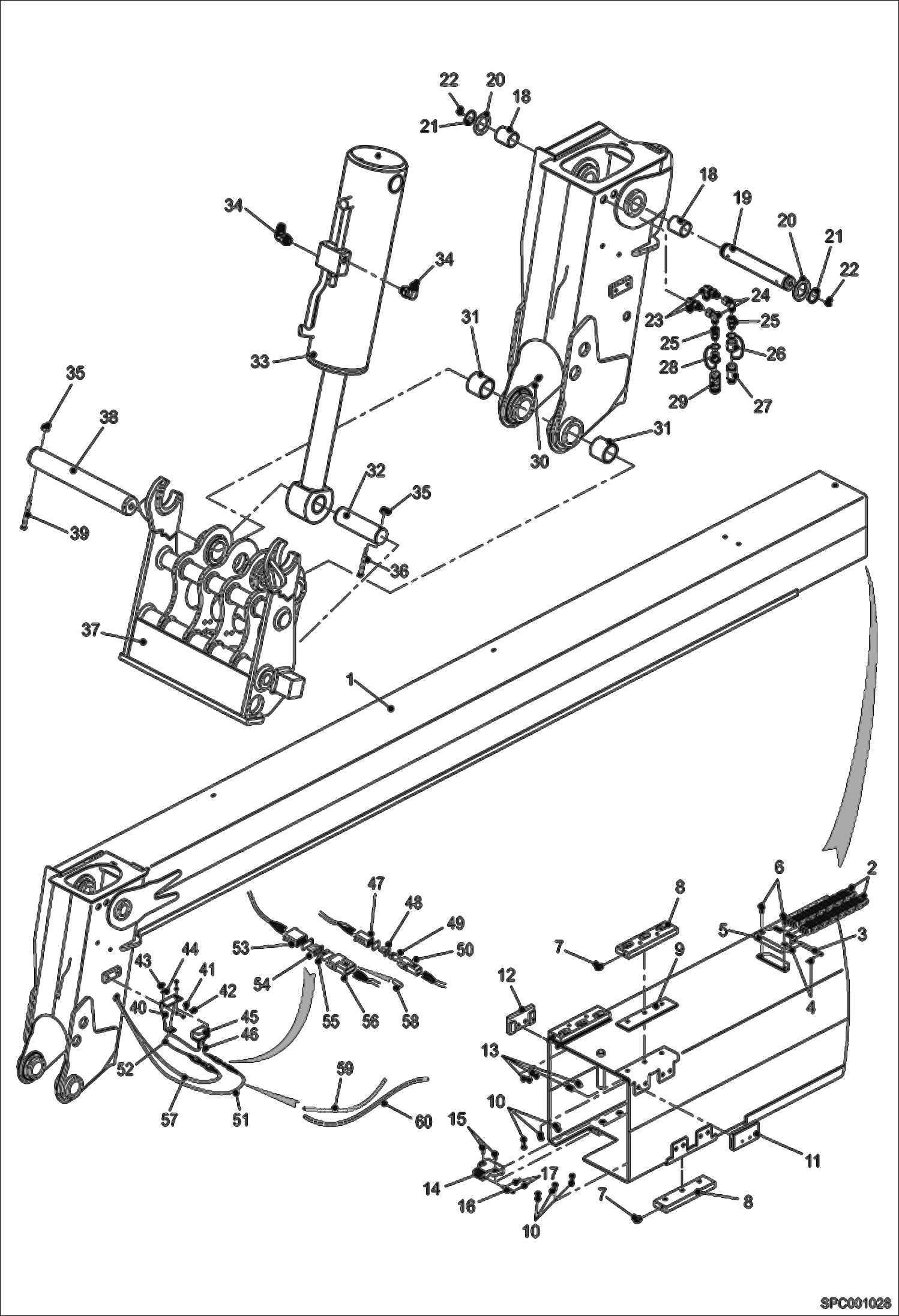

Схема запчастей Bobcat T40140 - END BOOM ASSY (S/N 363311001 - 12000) MAIN FRAME

Артикул

Название

Примечание

Количество

1

6935340

ARM, TELESCOPIC W/Ref. 18 & 31 Was 6916074 - A

2

7213329

CHAIN Was 95532.8 - A

3

7215019

PIN Was 95614.4 - A

4

38632.6

Pin

5

7213336

HOLDER, CHAIN Was 95558.3 - A

6

7214544

SCREW Was 95502.1 - A

7

01775.6

Grease Nipple

8

95501.3

Shoe

9

98300.7

Shim 1 mm

9

98301.5

Shim 2 mm

9

98302.3

Shim 3 mm

10

7214544

SCREW Was 95502.1 - A

11

98344.5

Shoe 11 mm

11

98343.7

Shoe 12 mm

11

98342.9

Shoe 13 mm

11

98341.1

Shoe 14 mm

11

98340.3

Shoe 15 mm

12

98342.9

Shoe 13 mm

13

7214543

SCREW Was 98303.1 - A

14

7213335

CHAIN ANCHOR 1 Was 95564.1 - A

15

7214544

SCREW Was 95502.1 - A

16

7215018

PIN Was 95613.6 - A

17

38632.6

Pin

18

74863.2

Bush

19

95533.6

Spindle

20

009456-02D

WASHER

21

5JM50

CIRCLIPS Was 31825.3 - B

22

01775.6

Grease Nipple

23

010370-57L

ELBOW UNION

24

010370-90W

ELBOW PIECE

25

7225156

FITTING, HYD Was 022375-06W - A

26

7225160

CAP, COUPLER Was 96513.7 - A

27

7225159

COUPLER, HYD Was 95994.0 - A

28

7225161

CAP, COUPLER Was 96514.5 - A

29

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

30

01775.6

Grease Nipple

31

7213359

BEARING, SWING Was 77380.4 - A

32

7214127

PIN Was 80400.5 - A

33

6932908

CYLINDER Was 6914552 - B

34

65285.9

Elbow

35

100345-09A

NUT

36

7CM10100

SCREW HEX Was 65397.2 - A

37

6919187

CARRIAGE

38

7214176

PIN Was 77421.6 - A

39

82459.9

Screw

40

6908244

Support

41

01698.0

Washer

42

01603.0

Screw

43

01590.9

Screw

44

01696.4

Washer

45

6908258

Box

46

6908281

Cable

47

79551.8

Connector 6 poles

48

79552.6

Block

49

79550.0

Block

50

79549.2

Female connector 6 poles

51

6917979

CABLE, 7 WIRE Was 6908285 - B

52

6908280

Cable

53

79555.9

Male connector 12 poles

54

79556.7

Block

55

79554.2

Block

56

79553.4

Female connector 12 poles

57

6908284

Cable

58

97546.6

Plug

59

6908963

Protection 600 mm (23.63'') long

60

6908964

Protection 1000 mm (39.37'') long
