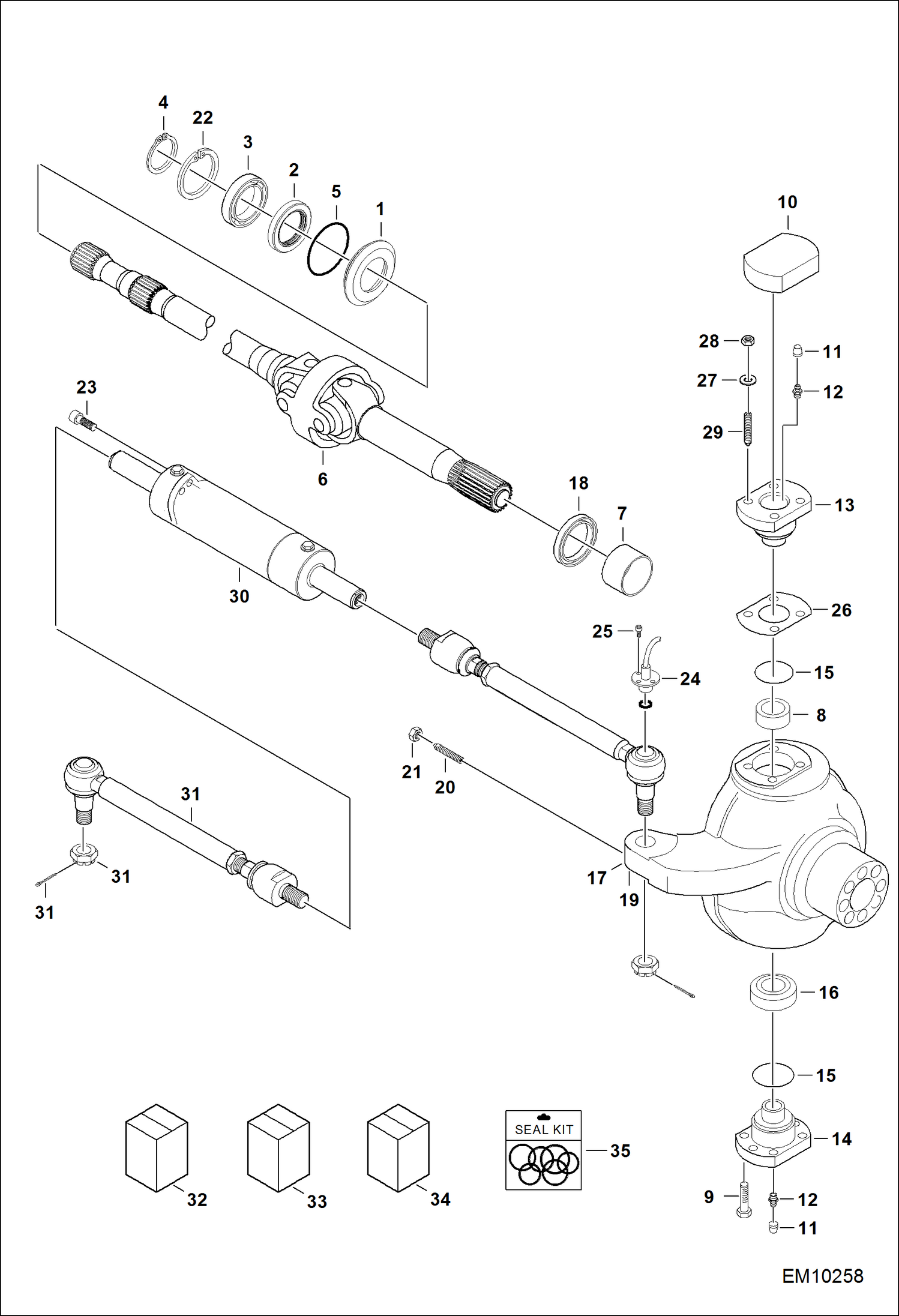

Запчасти Bobcat T40140 REAR AXLE (Steering) DRIVE SYSTEM

1

6912825

BUSH

2

6912848

SEAL

3

6912871

BEARING

4

6912808

SNAP RING

5

6912853

O'RING

6

7024570

JOINT

7

6912826

BUSH

8

6921515

BUSHING

9

6912893

SCREW

10

6912816

COVER

11

6912629

PLUG

12

6912700

LUBRICATOR

13

6912941

PIVOT W/Ref. 12

14

6912859

PIVOT W/Ref. 15-16

15

6912845

SEAL

16

6912778

CONNECTION

17

6912782

Steering case LH

18

6912847

SEAL

19

6912783

Steering case RH

20

6912773

SCREW

21

6912685

NUT

22

7JM90

SNAPRING

23

6912890

SCREW

24

6912818

Optical sensor W/Ref. 25

25

6912766

SCREW

26

6912802

SHIM 0,15MM 0,15 mm

26

6912803

SHIM 0,20MM 0,20 mm

26

6912804

SHIM 0,50MM 0,50 mm

27

6912736

WASHER

28

6912684

NUT

29

7010888

STUD

30

7024216

CYLINDER

31

7011174

TIE ROD

32

7009504

STEERING CASE RH - Ref. 17 & 7

33

6912785

Steering case LH - Ref. 19 & 7

34

6912774

SCREW Ref. 20 & 21
