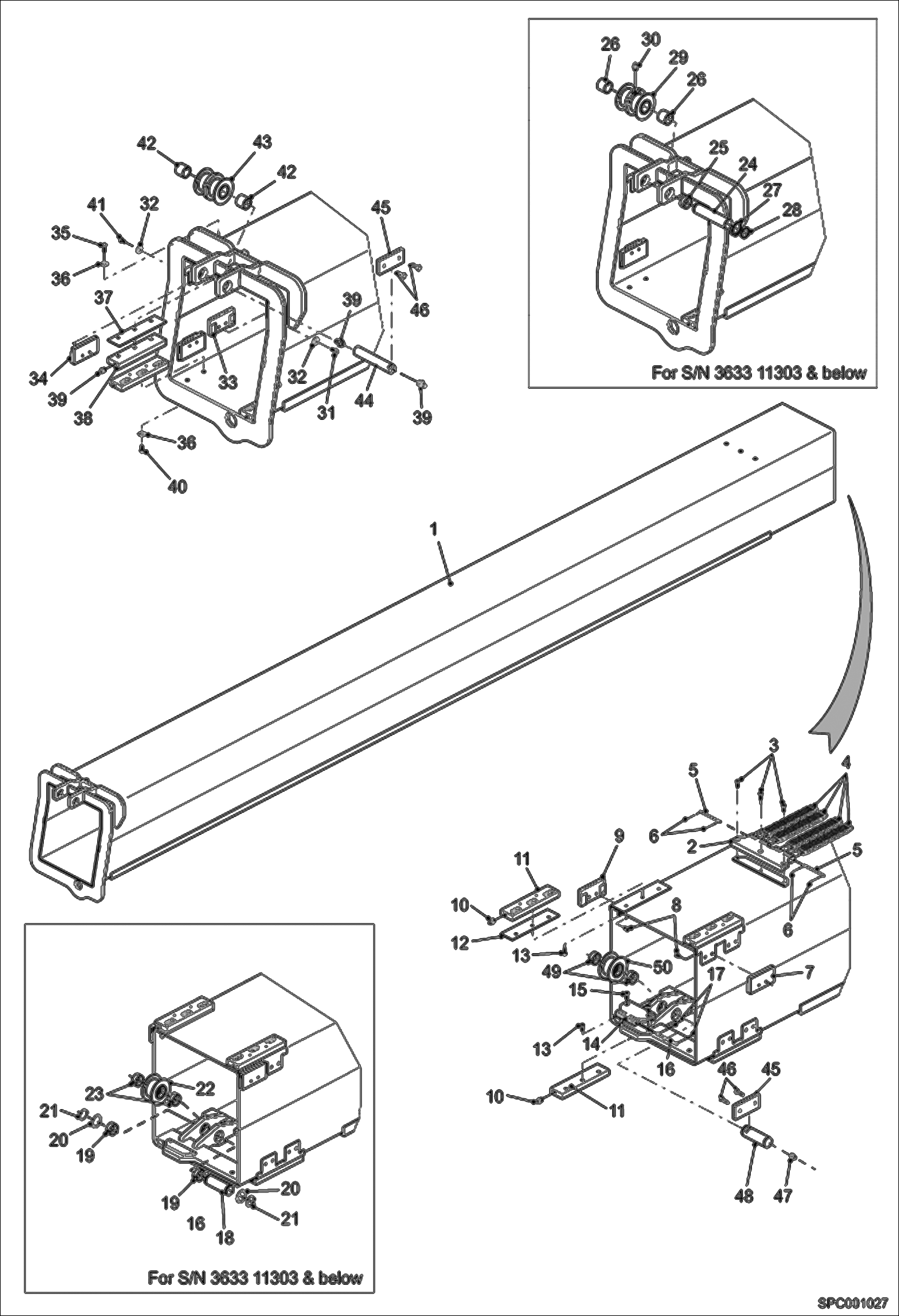

Запчасти Bobcat T40140 2ND INTERMEDIATE BOOM (S/N 363311001 - 12000) MAIN FRAME

1

6915211

Intermediate arm

1

INTERMEDIATE ARM NAP Was 95490.9 - A

2

7213337

HOLDER, CHAIN Was 95615.1 - A

3

7214544

SCREW Was 95502.1 - A

4

7213329

CHAIN Was 95532.8 - A

5

7215019

PIN Was 95614.4 - A

6

38632.6

Pin

7

98344.5

Shoe 11 mm

7

98343.7

Shoe 12 mm

7

98342.9

Shoe 13 mm

7

98341.1

Shoe 14 mm

7

98340.3

Shoe 15 mm

8

7214543

SCREW Was 98303.1 - A

9

98342.9

Shoe 13 mm

10

01775.6

Grease Nipple

11

95501.3

Shoe

12

98300.7

Shim 1 mm

12

98301.5

Shim 2 mm

12

98302.3

Shim 3 mm

13

7214544

SCREW Was 95502.1 - A

14

7213336

HOLDER, CHAIN Was 95558.3 - A

15

7214544

SCREW Was 95502.1 - A

16

7215019

PIN Was 95614.4 - A

17

38632.6

Pin

18

SPINDLE See Illustration BOOM CHAIN PULLEY AXLES KIT/ SPC007054 NAP Was 95614.4 - A

19

95541.9

Bush

20

95577.3

Washer

21

26747.6

Clip

22

7215016

PULLEY W/Ref. 22-23 Was 95539.3 - B

23

95541.9

Bush

24

SPINDLE See Illustration BOOM CHAIN PULLEY AXLES KIT/ SPC007054 NAP Was 95570.8 - A

25

95541.9

Bush

26

84078.5

Bush

27

95577.3

Washer

28

26747.6

Clip

29

6913719

Pulley W/Ref. 26 & 29 Was 95538.5 - B

30

01775.6

Grease Nipple

31

1CM816

BOLT Was 01595.8 - A

32

01697.2

Washer

33

98342.9

Shoe 13 mm

34

98344.5

Shoe 11 mm

34

98343.7

Shoe 12 mm

34

98342.9

Shoe 13 mm

34

98341.1

Shoe 14 mm

34

98340.3

Shoe 15 mm

35

1CM820

BOLT Was 01596.6 - B

36

01697.2

Washer

37

98300.7

Shim 1 mm

37

98301.5

Shim 2 mm

37

98302.3

Shim 3 mm

38

95501.3

Shoe

39

01775.6

Grease Nipple

40

1CM816

BOLT Was 01595.8 - A

41

1CM820

BOLT Was 01596.6 - B

42

84078.5

Bush

43

6915195

PULLEY

44

7213338

PIN Was 6915214 - A

45

7213585

PLATE Was 6915193 - A

46

01604.8

Screw

47

01775.6

Grease Nipple

48

7213340

PIN Was 6915215 - A

49

95541.9

Bush

50

95539.3

Pulley
