Запчасти Bobcat T40140 FUEL TANK MAIN FRAME

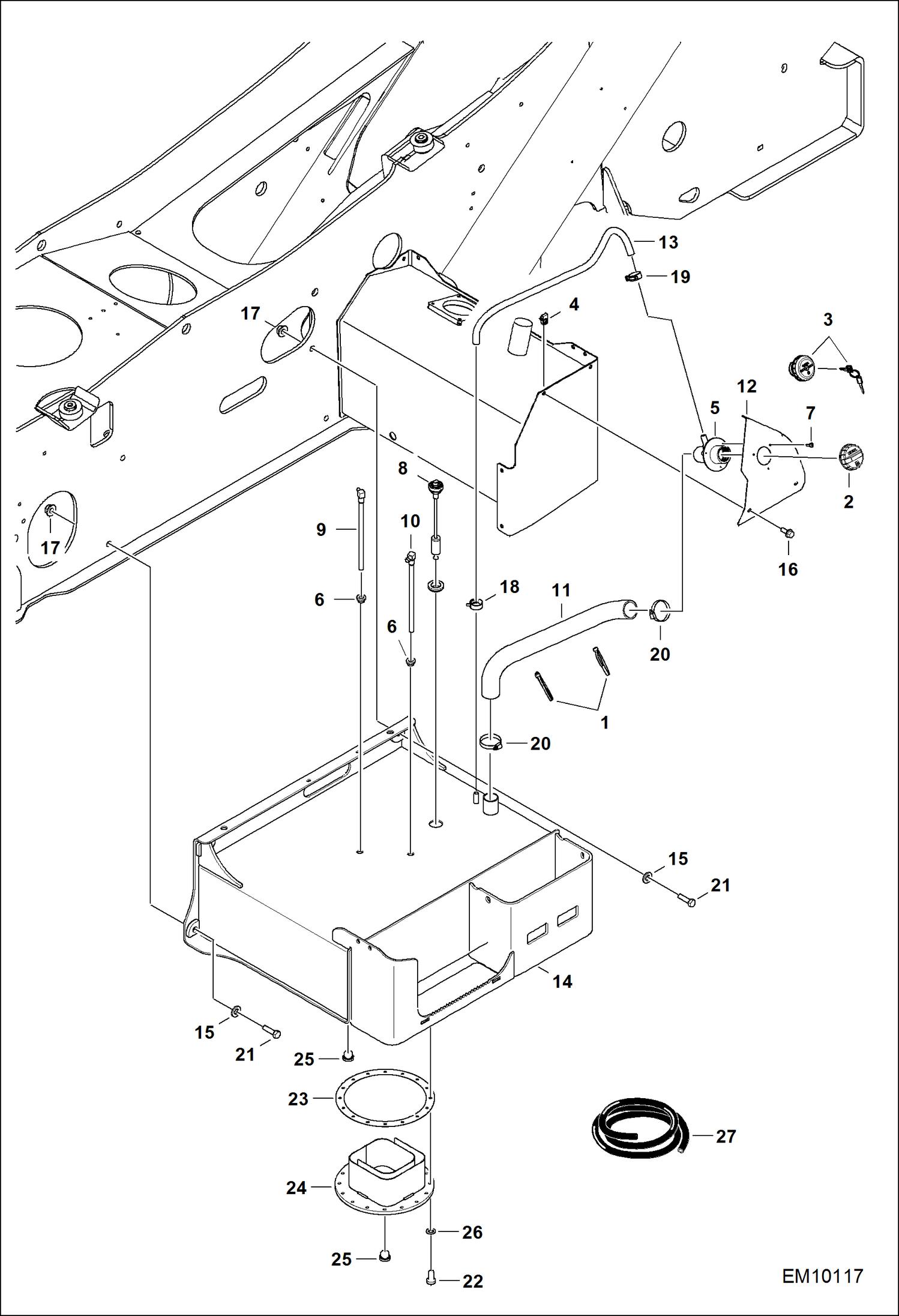

Схема запчастей Bobcat T40140 - FUEL TANK MAIN FRAME

Артикул

Название

Примечание

Количество

1

6624289

STRAP, TIE

2

6661114

CAP. DIESEL W/O lock

2

6661696

CAP, FUEL LOCKING W/lock - use fuel cap keys

2

6587458

KEY

3

6676169

NUT

4

6701449

FILLER TUBE

5

6717402

BUSHING

6

7106279

BOLT

7

7164101

SENDER, FUEL

8

7187325

ELBOW, BARBED

9

7187326

ELBOW, BARBED

10

7222580

HOSE, FUEL

11

7224737

HOLDER, PLATE

12

7232980

HOSE, BREATHER

13

7233257

TANK, FUEL W/Ref. 20-24

14

18EM1632

WASHER, HARDENED

15

29CM820

SCREW

16

51DM16

NUT

17

5HM20

CLAMP

18

5HM55

CLAMP

19

7CM1655

SCREW

20

7214544

SCREW

21

7215084

GASKET

22

PLATE, BOTTOM NLA - Order Ref. 13

23

PLUG NLA - Order Ref. 13

24

7233341

WASHER

Выбрано товаров: 26
