Запчасти Bobcat T40140 1ST INTERMEDIATE BOOM (S/N 363311001 - 12000) MAIN FRAME

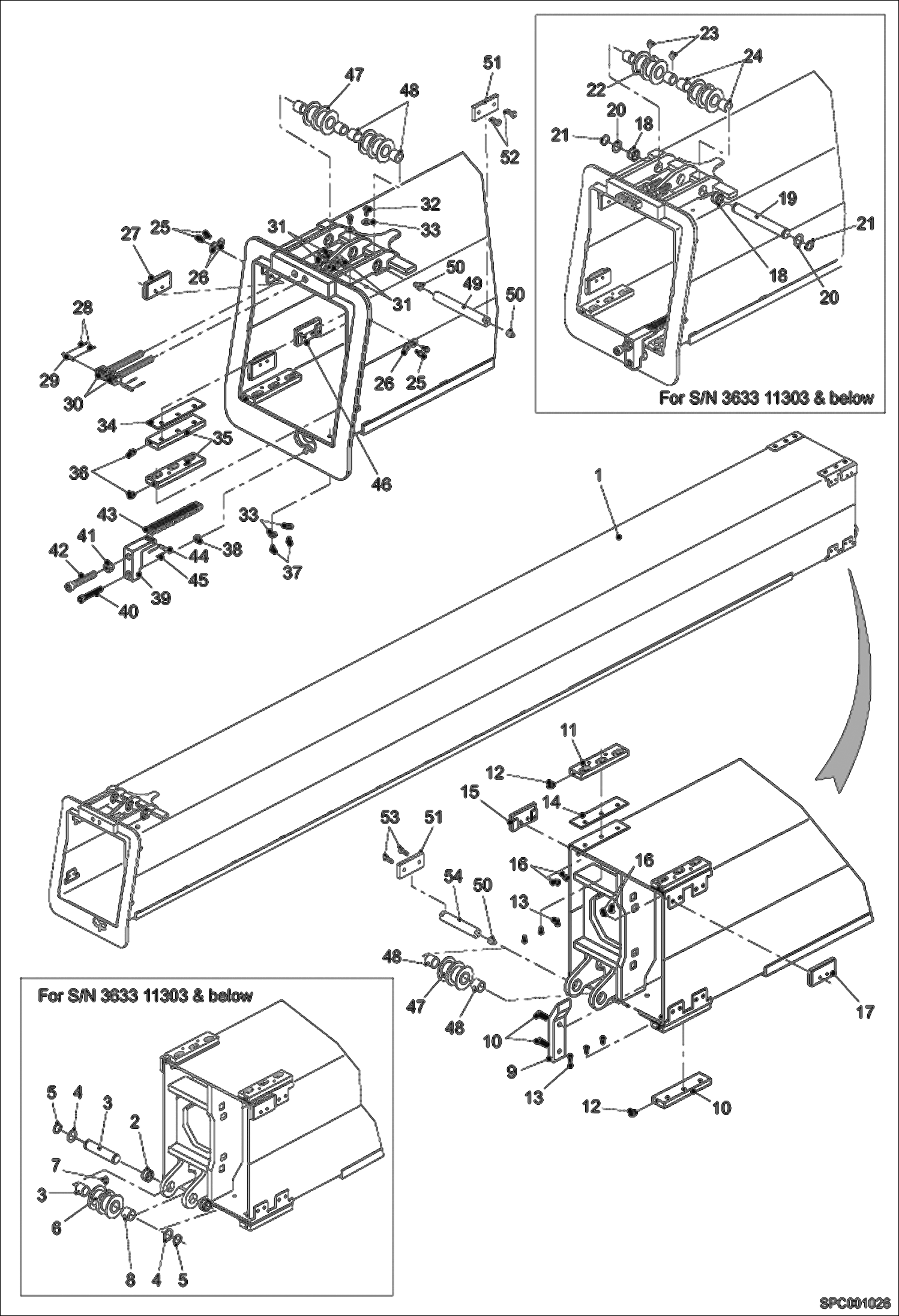

Схема запчастей Bobcat T40140 - 1ST INTERMEDIATE BOOM (S/N 363311001 - 12000) MAIN FRAME

Артикул

Название

Примечание

Количество

1

INTERMEDIATE ARM NAP Was 95484.2 - A

1

6935301

INTERMEDIATE ARM Was 6915189 - A

2

95541.9

Bush

3

SPINDLE See Illustration BOOM CHAIN PULLEY AXLES KIT/ SPC007054 NAP Was 95570.8 - A

4

95577.3

Washer

5

26747.6

Clip

6

6913719

Pulley W/Ref. 6 & 8 Was 95538.5 - A

7

01775.6

Grease Nipple

8

84078.5

Bush

9

97870.0

Shoe

10

01639.4

Screw

11

95501.3

Shoe

12

01775.6

Grease Nipple

13

7214544

SCREW Was 95502.1 - A

14

98300.7

Shim 1 mm

14

98301.5

Shim 2 mm

14

98302.3

Shim 3 mm

15

98342.9

Shoe 13 mm

16

7214543

SCREW Was 98303.1 - A

17

98344.5

Shoe 11 mm

17

98343.7

Shoe 12 mm

17

98342.9

Shoe 13 mm

17

98341.1

Shoe 14 mm

17

98340.3

Shoe 15 mm

18

95541.9

Bush

19

SPINDLE See Illustration BOOM CHAIN PULLEY AXLES KIT/ SPC007054 NAP

20

95577.3

Washer

21

26747.6

Clip

22

6913719

Pulley W/Ref. 22 & 24 Was 95538.5 - B

23

01775.6

Grease Nipple

24

84078.5

Bush

25

1CM816

BOLT Was 01595.8 - A

26

01697.2

Washer

27

98344.5

Shoe 11 mm

27

98343.7

Shoe 12 mm

27

98342.9

Shoe 13 mm

27

98341.1

Shoe 14 mm

27

98340.3

Shoe 15 mm

28

38632.6

Pin

29

7215018

PIN Was 95613.6 - A

30

7213333

HOLDER, CHAIN Was 95553.4 - A

31

01672.5

Nut

32

1CM820

BOLT Was 01596.6 - B

33

01697.2

Washer

34

98300.7

Shim 1 mm

34

98301.5

Shim 2 mm

34

98302.3

Shim 3 mm

35

95501.3

Shoe

36

01775.6

Grease Nipple

37

1CM816

BOLT Was 01595.8 - A

38

01670.9

Nut

39

7213334

HOLDER, CHAIN Was 95555.9 - A

40

6911771

SCREW Was 95575.7 - A

41

01672.5

Nut

42

7215487

SCREW Was 95557.5 - A

43

7213330

CHAIN Was 95576.5 - A

44

7215018

PIN Was 95613.6 - A

45

38632.6

Pin

46

98342.9

Shoe 13 mm

47

6915195

PULLEY

48

84078.5

Bush

49

7213341

PIN Was 6915194 - A

50

01775.6

Grease Nipple

51

7213585

PLATE Was 6915193 - A

52

01604.8

Screw

53

01603.0

Screw

54

7213339

PIN Was 6915196 - A

Выбрано товаров: 67
