Запчасти Bobcat T40140 HEATER MAIN FRAME

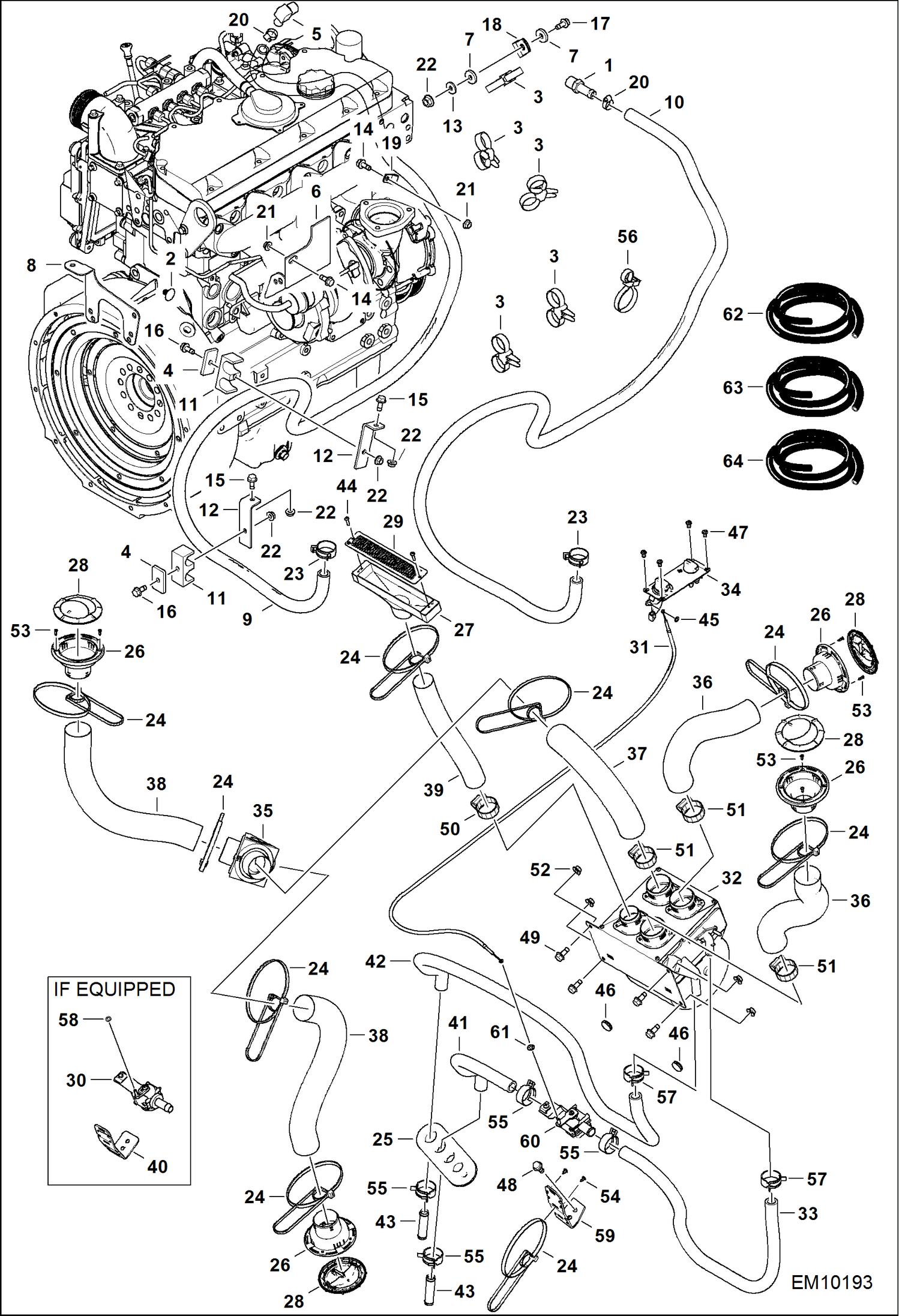

Схема запчастей Bobcat T40140 - HEATER MAIN FRAME

Артикул

Название

Примечание

Количество

1

666867

NIPPLE

2

6674895

RETAINER

3

6678668

STRAP, DUAL TIE

4

7166734

PLATE

5

7173468

ELBOW, HEATER

6

7177408

BELT, COVER

7

7193701

WASHER

8

7229543

SUPPORT

9

HOSE, HEATER NLA - 3160 mm (124.4'') long - Order Ref. 61

10

HOSE, HEATER NLA - 2880 mm (113.4'') long - Order Ref. 61

11

7234248

CLAMP

12

7234250

PLATE

13

17EM80

WASHER

14

29CM1030

BOLT

15

29CM825

BOLT

16

29CM850

SCREW

17

29CM880

BOLT

18

30H50

CLIP

19

31H49

CLAMP

20

42HS10

CLAMP

21

51DM10

NUT

22

51DM8

NUT

23

5HM22

CLAMP

24

6624289

STRAP, TIE

25

7147164

GROMMET

26

7217215

LOUVER

27

7217216

LOUVER

28

7217217

LOUVER

29

7217218

LOUVER

30

7217229

HEATER CONTROL VALVE

31

7217231

CABLE

32

7217346

HEATER See Illustration HEATER/ EM10218

33

HOSE, HEATER NLA - 700 mm (27.6'') long - Order Ref. 61

34

7217350

PANEL, CONTROL See Illustration HEATER/ EM10211

35

7217354

FITTING, TEE

36

HOSE, AIR NLA - 270 mm (10.6'') long - Order Ref. 59

37

HOSE, AIR NLA - 625 mm (24.6'') long - Order Ref. 59

38

HOSE, AIR NLA - 310 mm (12.2'') long - Order Ref. 59

39

HOSE, AIR NLA - 450 mm (17.7'') long - Order Ref. 59

40

HOSE, AIR NLA - 260 mm (10.2'') long - Order Ref. 60

41

7221022

PLATE

42

HOSE, HEATER NLA - 352 mm (13.9'') long - Order Ref. 61

43

HOSE, HEATER NLA - 1154 mm (45.4'') long - Order Ref. 61

44

7222991

PIPE

45

57G616

SCREW

46

7229422

WASHER

47

7233444

GROMMET

48

27CM412

SCREW

49

29CM616

BOLT

50

29CM630

BOLT

51

42HS20

CLAMP, HOSE

52

42H32

HS CLAMP5 Was 42HS30 - A

53

51DM6

NUT

54

57G606

SCREW

55

58G806

SCREW

56

5HM22

CLAMP

57

7221316

TIE, DUAL STRAPS

58

42HS10

CLAMP Was 5HM22 - A

59

7231136

HOSE AIR D50 PVC /METER bulk - sold per foot

60

7231137

HOSE AIR D40 PVC /METER bulk - sold per foot

61

6910694

HOSE, BULK/METER bulk - sold per foot

Выбрано товаров: 61
