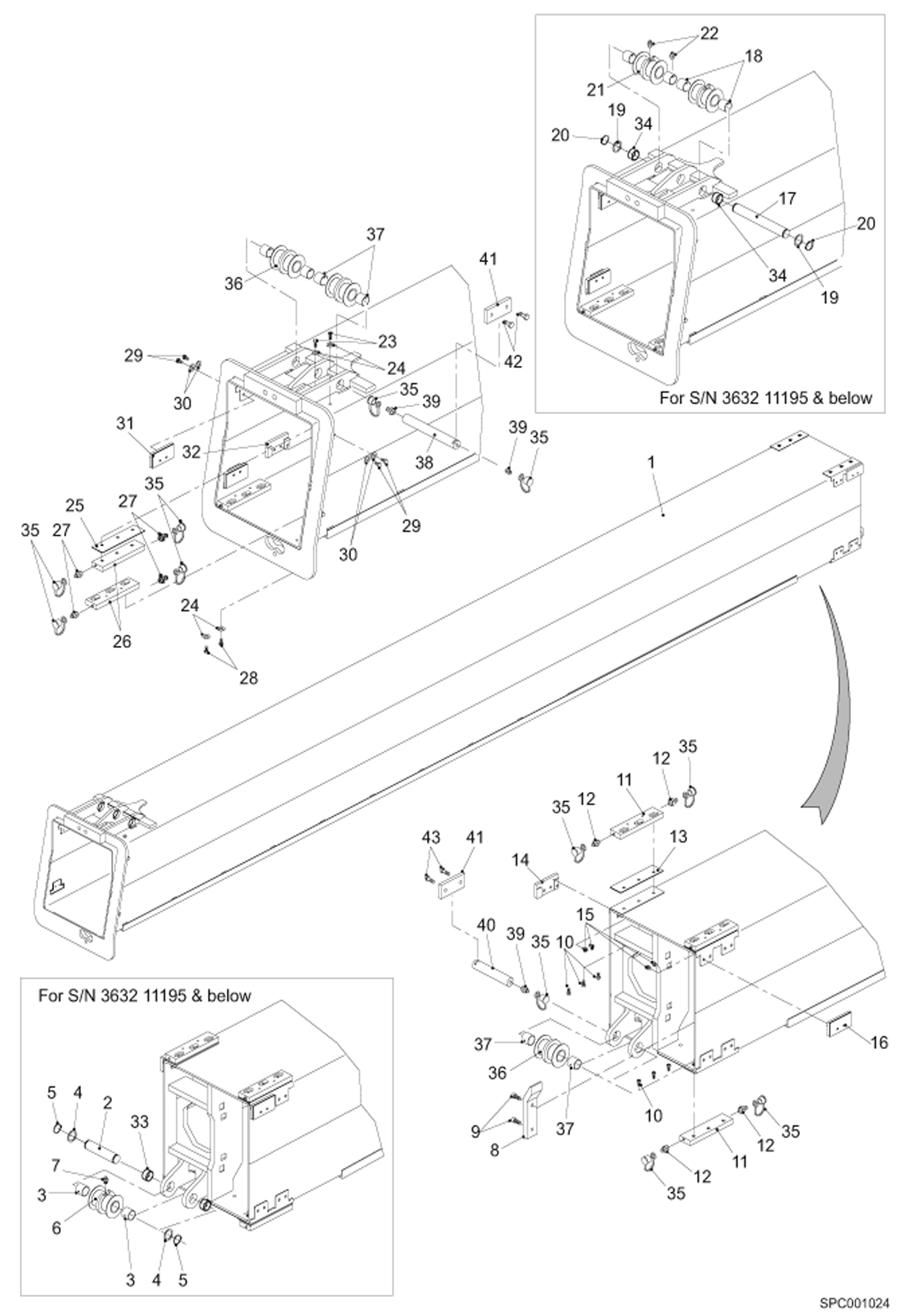

Запчасти Bobcat T40140 INTERMEDIATE BOOM ASSY (S/N 363211001 - 12000) MAIN FRAME

1

INTERMEDIATE ARM NAP Was 95484.2 - B

1

6935301

INTERMEDIATE ARM Was 6915189 - A

2

SPINDLE See Illustration BOOM CHAIN PULLEY AXLES KIT/ SPC007027 NAP Was 95570.8 - B

3

84078.5

Bush

4

95577.3

Washer

5

26747.6

Clip

6

6913719

Pulley W/Ref. 3 & 6 Was 95538.5 - B

7

01775.6

Grease Nipple

8

97870.0

Shoe

9

01639.4

Screw

10

7214544

SCREW Was 95502.1 - A

11

95501.3

Shoe

12

01775.6

Grease Nipple

12

01775.6

Grease Nipple

13

98300.7

Shim 1 mm - Thickness 1 mm

13

98301.5

Shim 2 mm - Thickness 2 mm

13

98302.3

Shim 3 mm - Thickness 3 mm

14

98342.9

Shoe 13 mm - Thickness 13 mm

15

7214543

SCREW Was 98303.1 - A

16

98344.5

Shoe 11 mm - Thickness 11 mm

16

98343.7

Shoe 12 mm - Thickness 12 mm

16

98342.9

Shoe 13 mm - Thickness 13 mm

16

98341.1

Shoe 14 mm - Thickness 14 mm

16

98340.3

Shoe 15 mm - Thickness 15 mm

17

SPINDLE See Illustration BOOM CHAIN PULLEY AXLES KIT/ SPC007027 NAP Was 95569.0 - B

18

84078.5

Bush

19

95577.3

Washer

20

26747.6

Clip

21

6913719

Pulley W/Ref. 18 & 21 Was 95538.5 - B

22

01775.6

Grease Nipple

23

1CM820

BOLT Was 01596.6 - B

24

01697.2

Washer

25

98300.7

Shim 1 mm - Thickness 1 mm

25

98301.5

Shim 2 mm - Thickness 2 mm

25

98302.3

Shim 3 mm - Thickness 3 mm

26

95501.3

Shoe

27

01775.6

Grease Nipple

27

01775.6

Grease Nipple

28

1CM816

BOLT Was 01595.8 - A

29

1CM816

BOLT Was 01595.8 - A

30

01697.2

Washer

31

98344.5

Shoe 11 mm - Thickness 11 mm

31

98343.7

Shoe 12 mm - Thickness 12 mm

31

98342.9

Shoe 13 mm - Thickness 13 mm

31

98341.1

Shoe 14 mm - Thickness 14 mm

31

98340.3

Shoe 15 mm - Thickness 15 mm

32

98342.9

Shoe 13 mm - Thickness 13 mm

33

95541.9

Bush

34

95541.9

Bush

35

98581.2

Cap

36

6915195

PULLEY

37

84078.5

Bush

38

7213341

PIN Was 6915194 - A

39

01775.6

Grease Nipple

40

7213339

PIN Was 6915196 - A

41

7213585

PLATE Was 6915193 - A

42

01604.8

Screw

43

01603.0

Screw
