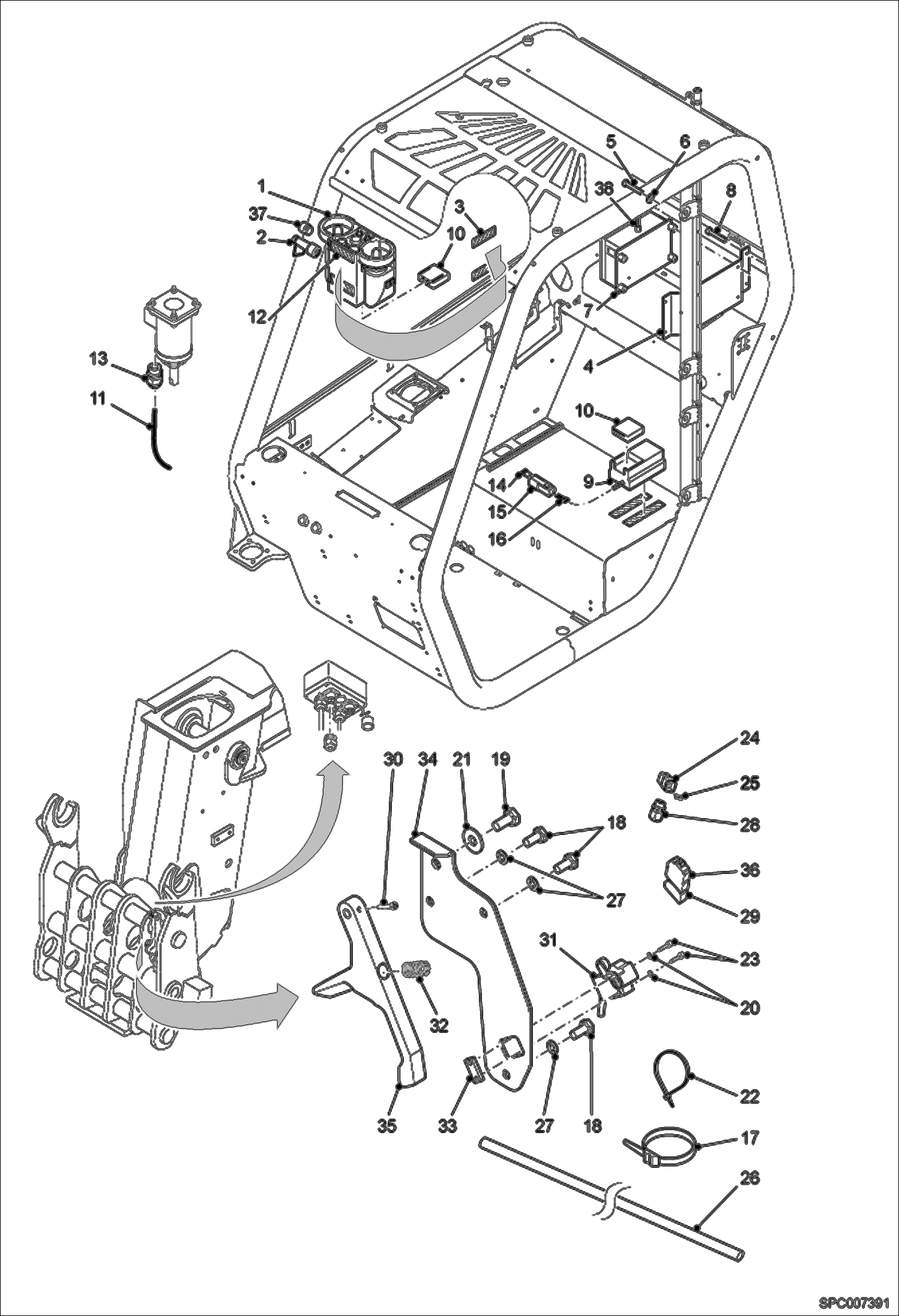

Запчасти Bobcat T40140 RADIO CONTROL (S/N A8GA12001 & Above, A8GB12001 & Above) ACCESSORIES & OPTIONS

1

6919921

RADIO CONTROL TRANSMITTER Was 97921.1

2

97925.2

OPERATING KEY

3

82061.3

ADHESIVE VELCRO 500 mm (19.7'') long - sold per foot

4

6908541

PLATE

5

32397.2

Screw

6

13416.3

Washer

7

6924887

RADIO RECIEVER Was 6919922

8

79864.5

Screw

9

97923.7

Battery loader

10

97924.5

BATTERY

11

6913575

WIRE HARNESS

12

82060.5

ADHESIVE VELCRO 200 mm (7.8'') long - sold per foot

13

96627.5

Cable plug

14

79532.8

Connector

15

79531.0

Connector

16

78923.0

CONTACTEUR

17

6624289

STRAP, TIE

18

01605.5

Screw

19

01610.5

Screw

20

13414.8

WASHER

21

47571.5

WASHER

22

7214998

STRAP, TIE Was 50917.4 - A

23

53100.4

Screw

24

79549.2

Female connector 6 poles

25

79550.0

Block

26

82088.6

Protection

27

7225260

WASHER Was 89516.9 - A

28

96627.5

Cable plug

29

97882.5

CONTACT ELEMENT

30

100329-01C

SCREW

31

6919100

SWITCH, DETECTION

32

6919186

SPRING

33

6921490

PLATE

34

6922506

PLATE, SUPPORT

35

6922508

ARM, DETECTION

36

6923570

CONTACT BLOCK

37

6925313

KEY, RED

38

6925314

ANTENNA
