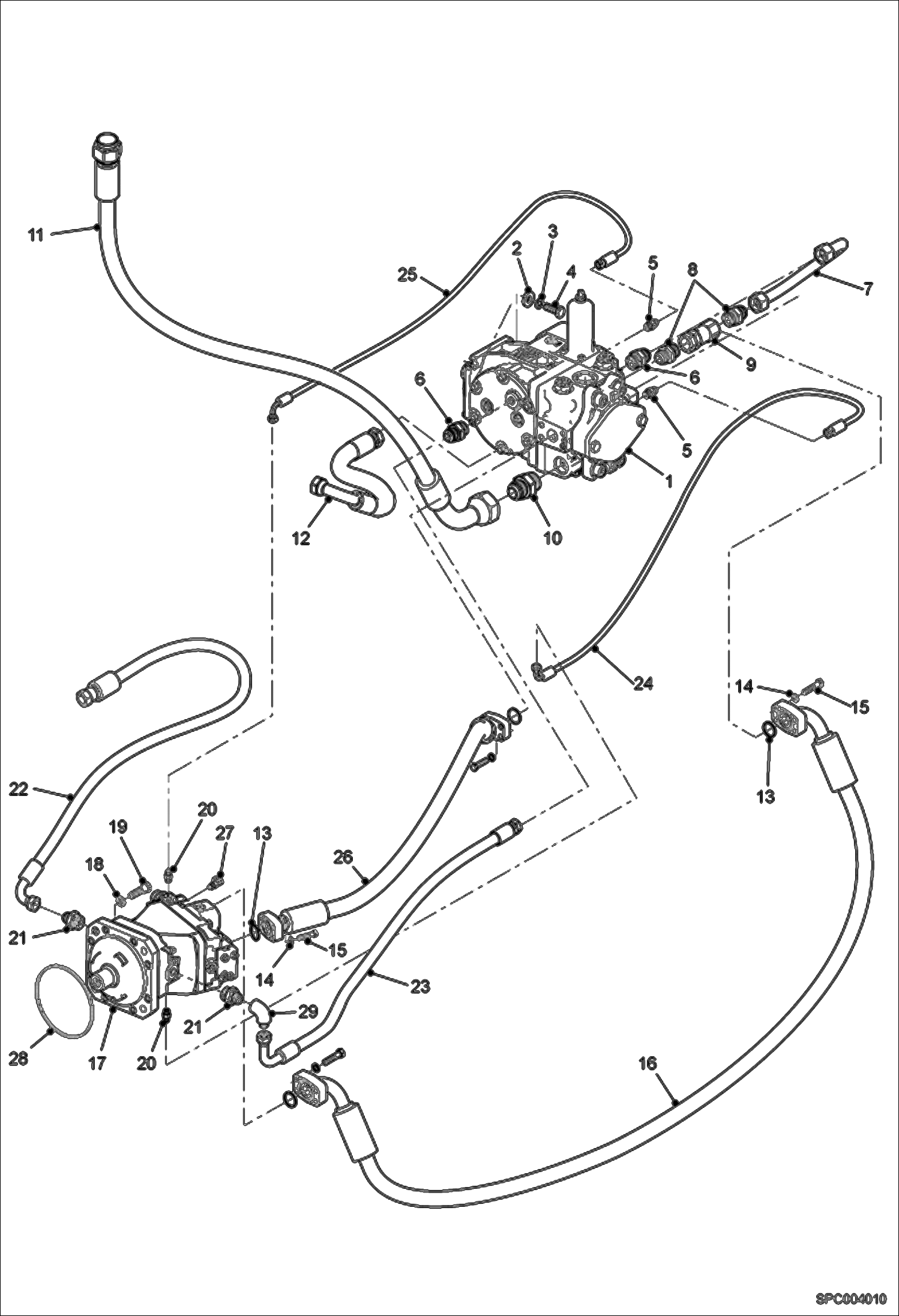

Запчасти Bobcat T40140 HYDROSTATIC HOSES AND FITTINGS HYDROSTATIC SYSTEM

1

6913565

HYDROSTATIC PUMP

2

100454-17G

WASHER

3

89517.7

Washer

4

01613.9

Screw

5

67046.3

Adapter

6

014375-33L

UNION

7

6909780

PIPE

8

100375-40U

UNION

9

97880.9

Check valve

10

78705.1

Adapter

12

6910599

HOSE TJ 1.1/16 19 TJ90 1.1/16 L470

13

7009211

O-RING Was 013304-20J - B

14

92210.4

Washer

15

28689.8

Screw

16

6917413

Hose

17

78256.5

Hydrostatic Motor Assy

18

89518.5

Washer

19

28439.8

Screw

20

67046.3

Adapter

21

014375-96E

UNION

22

96795.0

Hose Was 6913659

23

6915276

Hose

24

6915360

HOSE

25

6915360

HOSE

26

88580.6

Hose

27

72065.6

Pressure switch W/chain

28

82025.8

O-ring

29

008372-14Q

ELBOW
