Запчасти Bobcat T40140 HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

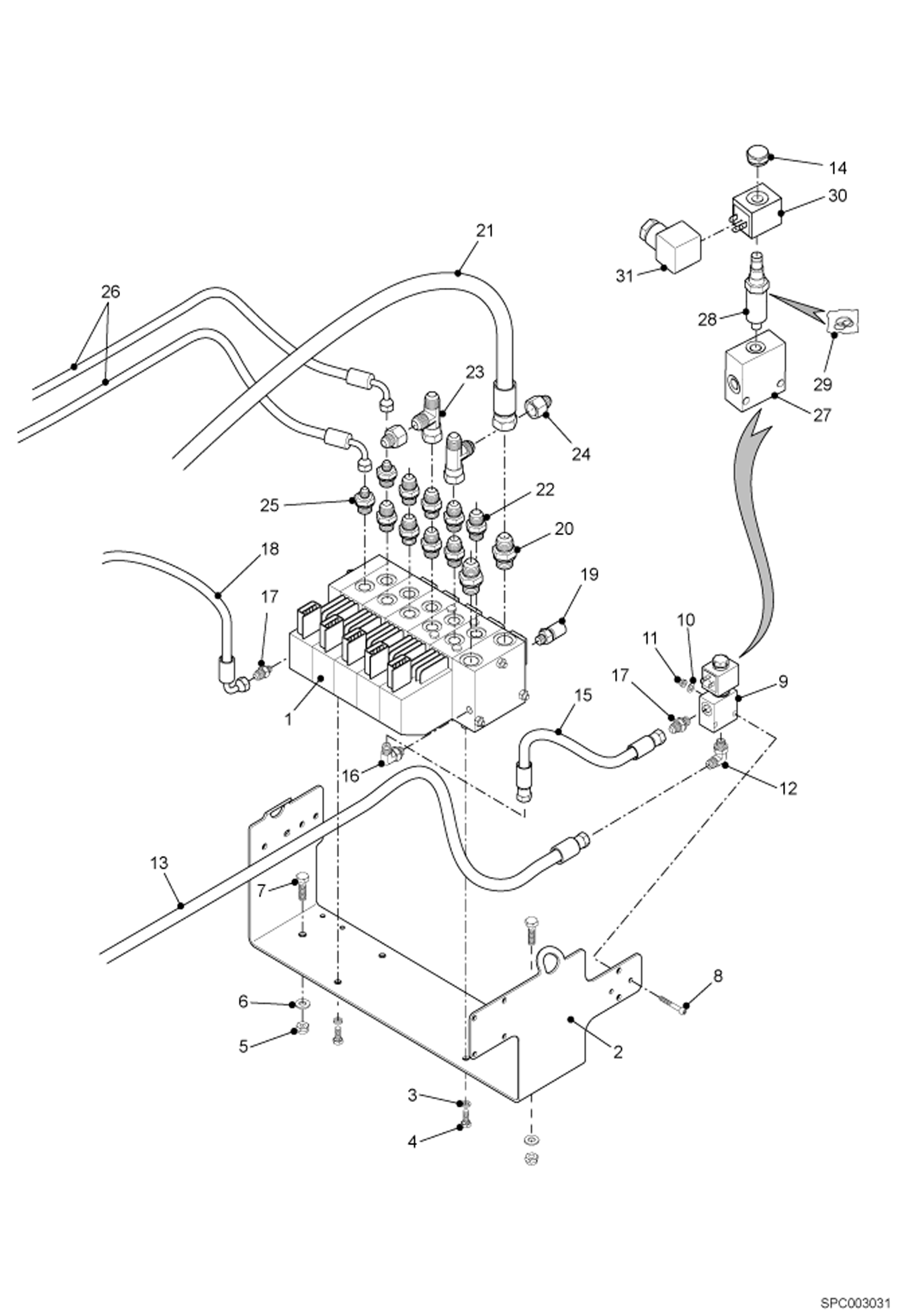

Схема запчастей Bobcat T40140 - HYDRAULIC CONTROL VALVE INSTALLATION HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6918313

Hydraulic Control Valve See Illustration HYDRAULIC CONTROL VALVE/ SPC003032 Was 95265.5 - A

2

6912206

Support

3

89519.3

Washer

4

1CM820

BOLT Was 01596.6 - B

5

100345-09A

NUT

6

000350-03W

WASHER

7

01607.1

Screw

8

27834.1

Screw

9

6910876

Valve W/Ref. 27-31

10

000350-01U

WASHER

11

100345-06W

NUT

12

100370-18C

ELBOW PIECE

13

70865.1

Hose

14

6912529

NUT

15

101319-25M

Hose

16

100370-18C

ELBOW PIECE

17

022375-31Z

UNION Was 82181.9 - A

18

92323.5

Hose

19

54367.8

PORT, PRESSURE TEST

20

100375-40U

UNION

21

6922527

HOSE

22

014375-30H

UNION

23

008372-28F

UNION

24

100375-43X

REDUCER

25

77912.4

Adapter

26

92323.5

Hose

27

BLOCK NLA - Order Ref. 9

28

6912586

Valve

29

KIT, SEAL NLA - Order 6912586 Was 6912592 - A

30

6912528

COIL

31

90924.2

Connection

Выбрано товаров: 31
