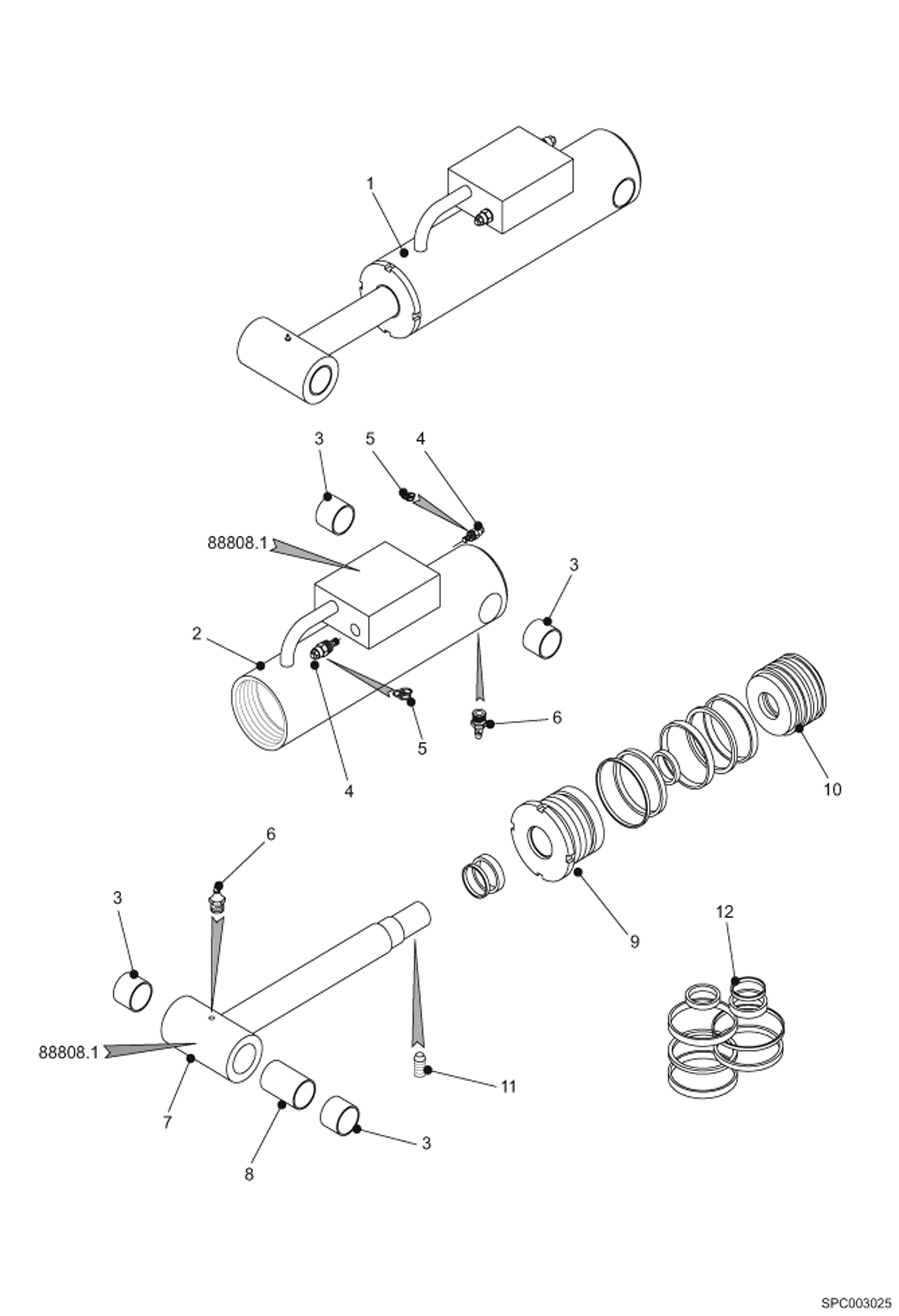

Запчасти Bobcat T40140 FRAME LEVEL CYLINDER HYDRAULIC SYSTEM

1

88808.1

Cylinder assy W/Ref. 2-12

2

97030.1

Cylinder

3

75168.5

Bush

4

75221.2

Valve 280 bar

5

100496-04H

SEAL KIT

6

81573.8

Grease nipple

7

93995.9

Rod

8

97032.7

Spacer

9

7030205

HEAD, CYLINDER Was 97031.9 - A

10

7030204

PISTON Was 97029.3 - A

11

75165.1

Screw

12

7030206

KIT, SEAL Was 93606.2 - B
