Запчасти Bobcat T40140 TELESCOPE CYLINDER (6911233) HYDRAULIC SYSTEM

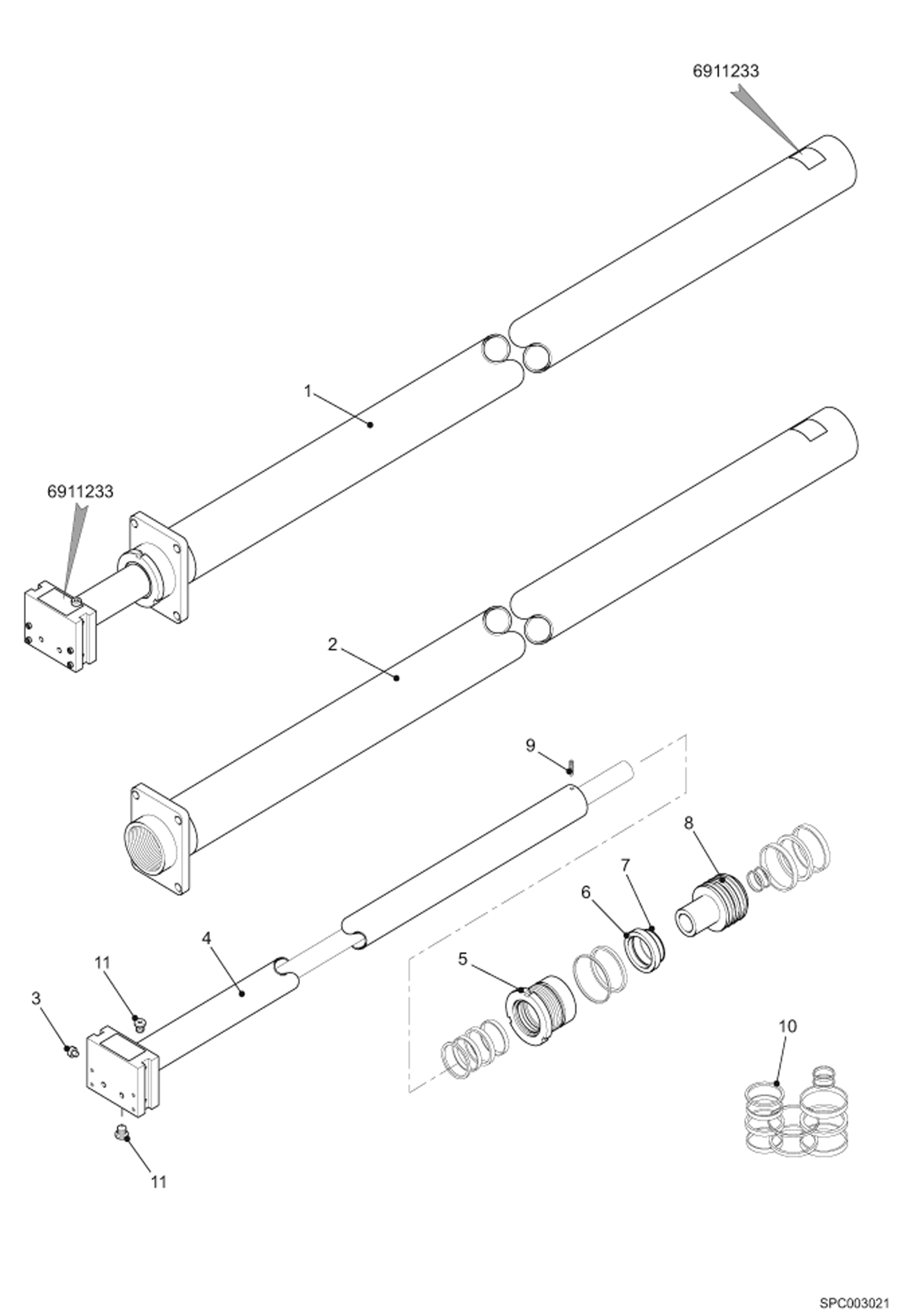

Схема запчастей Bobcat T40140 - TELESCOPE CYLINDER (6911233) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER See Illustration TELESCOPE CYLINDER/ EM5399 NLA - W/Ref. 2-9 & 11 Was 6911233 - A

2

7030228

KIT, CASING Was 97011.1 - B

3

97440.2

Plug

4

6912106

Rod

5

7030230

HEAD, CYLINDER Was 97012.9 - A

6

97010.3

Stop

7

6912107

Ring

8

7030229

PISTON Was 97007.9 - A

9

97008.7

Screw

10

7030231

KIT, SEAL Was 93602.1 - B

11

97013.7

Plug

Выбрано товаров: 11
