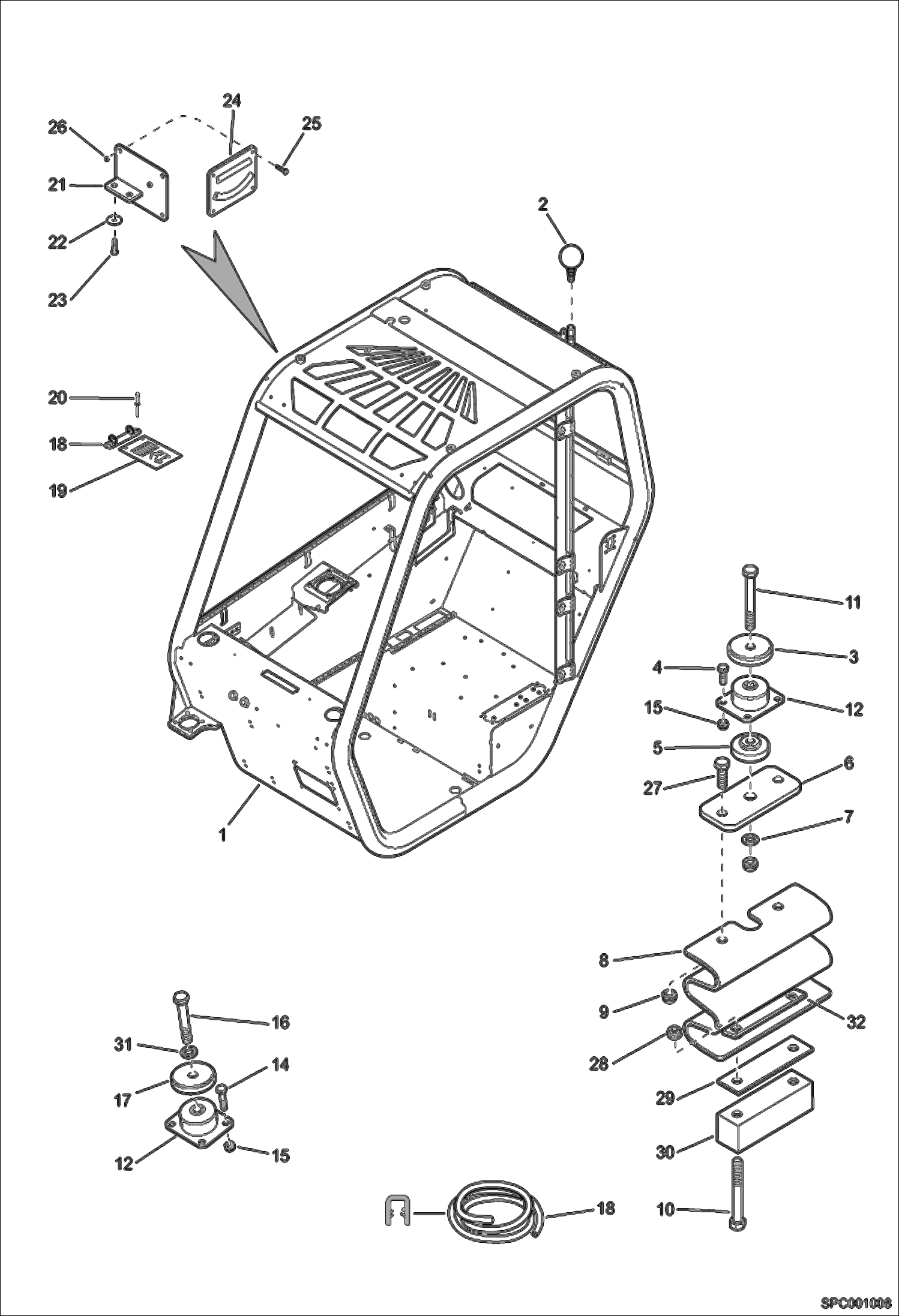

Запчасти Bobcat T40140 CAB & FIXATION (Fixations) MAIN FRAME

1

CAB

2

78817.4

Rotating Beacon Light optional

2

6925402

BULB

3

7214962

WASHER Was 6917690 - A

4

01606.3

Screw

5

7214964

WASHER, CAB Was 79872.8 - A

6

7214963

PLATE Was 94079.1 - A

7

01701.2

Washer

8

7214960

PLATE, ROPS Was 78856.2 - A

9

100345-16H

NUT

10

66716.2

Screw

11

8CM16120

SCREW Was 100338-07M - A

12

7214961

MOUNT, CAB Was 78021.3 - A

14

01606.3

Screw

15

100345-09A

NUT

16

7CM1680

BOLT Was 90245.2 - A

17

7214962

WASHER Was 6917690 - A

18

78863.8

Support

19

CARD, INDEX See accessories & options - tires

20

79864.5

Screw

21

92303.7

Bracket

22

94574.1

Washer

23

15354.4

Screw

24

7220190

CLINOMETER Was 100416-32S - A

25

7220283

SCREW Was 01657.6 - A

26

100345-04U

NUT

27

01549.5

Screw

28

100345-15G

NUT

29

94077.5

Shim If necessary

30

88624.2

Shim

31

13778.6

Washer

32

95703.5

PLATE
