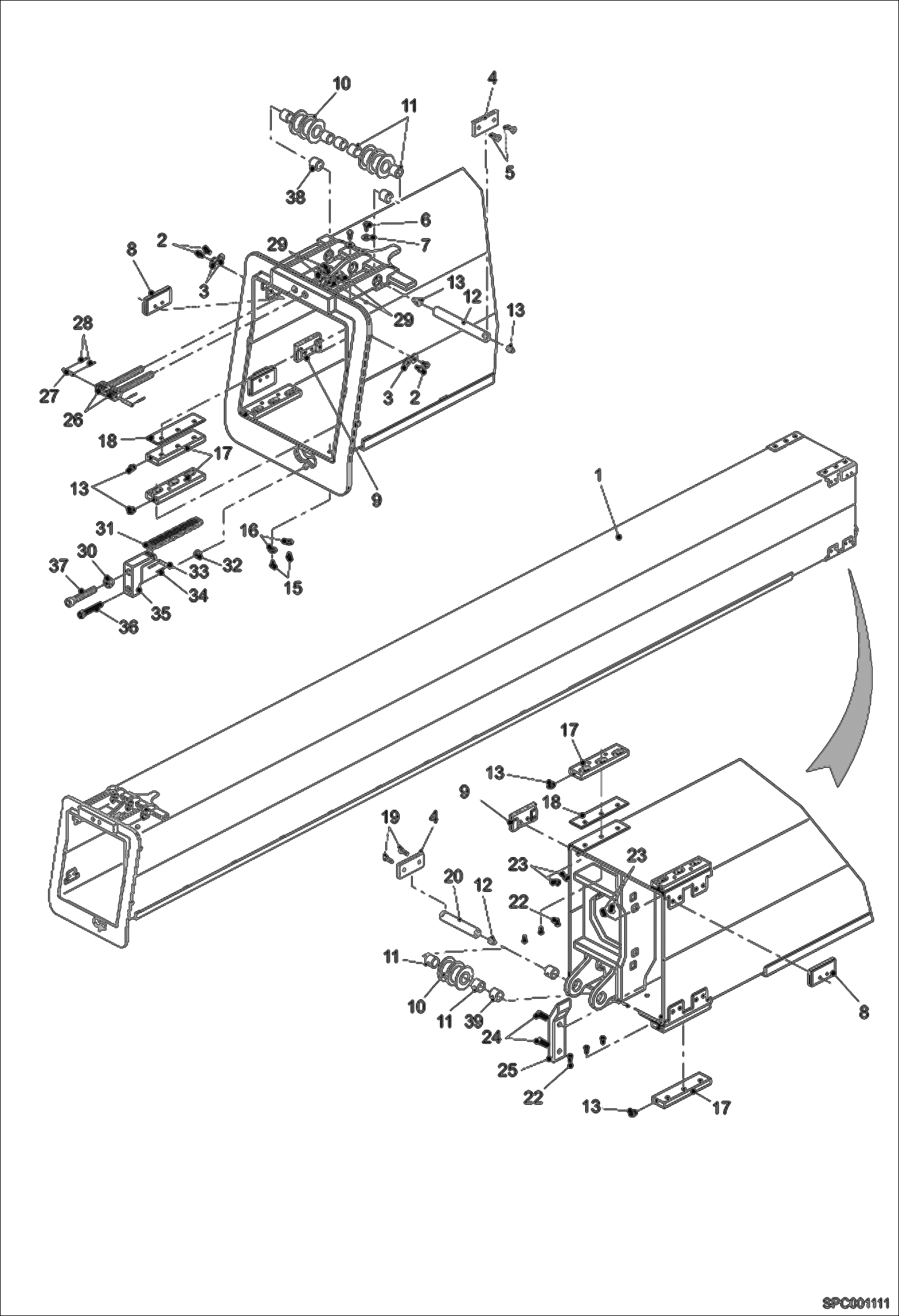

Запчасти Bobcat T40140 1ST INTERMEDIATE BOOM (S/N A8GB11001 & Above) MAIN FRAME

1

6935301

INTERMEDIATE ARM Was 6915189 - A

2

1CM816

BOLT Was 01595.8 - A

3

01697.2

Washer

4

7213585

PLATE Was 6915193 - A

5

01604.8

Screw

6

1CM820

BOLT Was 01596.6 - B

8

98344.5

Shoe 11 mm

8

98343.7

Shoe 12 mm

8

98342.9

Shoe 13 mm

8

98341.1

Shoe 14 mm

8

98340.3

Shoe 15 mm

9

98342.9

Shoe 13 mm

10

6915195

PULLEY

11

84078.5

Bush

12

7213341

PIN Was 6915194 - A

13

01775.6

Grease Nipple

15

1CM816

BOLT Was 01595.8 - A

16

01697.2

Washer

17

95501.3

Shoe

18

98300.7

Shim 1 mm

18

98301.5

Shim 2 mm

18

98302.3

Shim 3 mm

19

01603.0

Screw

20

7213339

PIN Was 6915196 - A

22

7214544

SCREW Was 95502.1 - A

23

7214543

SCREW

24

01639.4

Screw

25

97870.0

Shoe

26

7213333

HOLDER, CHAIN Was 95553.4 - A

27

7215018

PIN Was 95613.6 - A

28

38632.6

Pin

30

01672.5

Nut

31

7213330

CHAIN Was 95576.5 - A

32

01670.9

Nut

33

7215018

PIN Was 95613.6 - A

34

38632.6

Pin

35

7213334

HOLDER, CHAIN Was 95555.9 - A

36

6911771

SCREW Was 95575.7

37

7215487

SCREW Was 95557.5 - A

38

95541.9

Bush

39

95541.9

Bush
