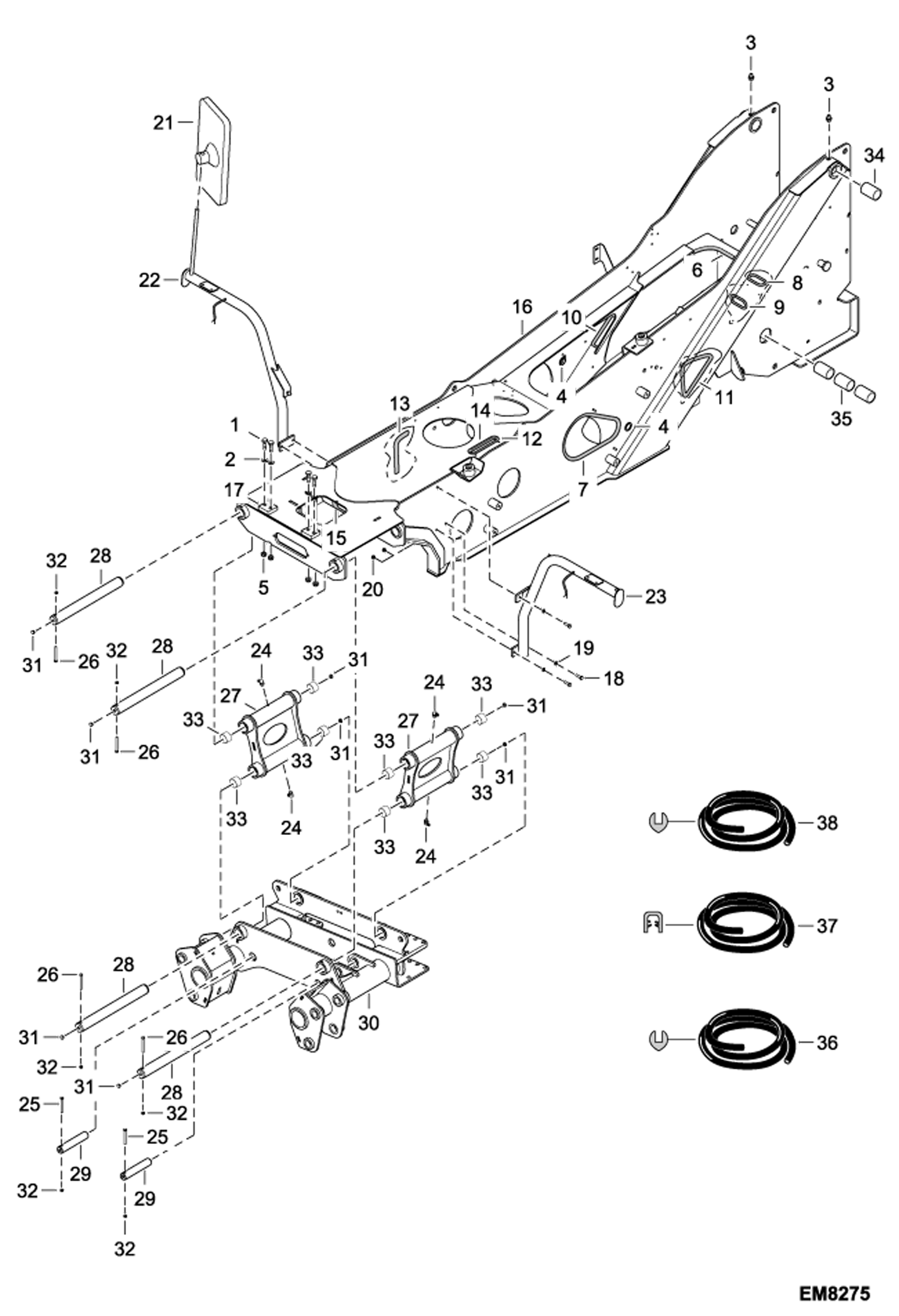

Запчасти Bobcat T40140 FRAME (S/N A8GA13000 & Above, A8GB13000 & Above) MAIN FRAME

1

2GM1030

SCREW Was 01640.2 - A

2

01698.0

Washer

3

01775.6

Grease Nipple

4

79288.7

Rubber mounting

5

100345-09A

NUT

6

TRIM, EDGE NAP - 485 mm (19.10'') long - Order Ref. 36

7

TRIM, EDGE NAP - 1260 mm (49.61'') long - Order Ref. 36

8

TRIM, EDGE NAP - 330 mm (13.00'') long - Order Ref. 36

9

TRIM, EDGE NAP - 375 mm (14.77'') long - Order Ref. 36

10

TRIM, EDGE NAP - 290 mm (11.42'') long - Order Ref. 37

11

TRIM, EDGE NAP - 625 mm (24.61'') long - Order Ref. 37

12

TRIM, EDGE NAP - 480 mm (18.90'') long - Order Ref. 37

13

TRIM, EDGE NAP - 350 mm (13.78'') long - Order Ref. 38

14

TRIM, EDGE NAP - 350 mm (13.78'') long - Order Ref. 38

15

TRIM, EDGE NAP - 650 mm (25.60'') long - Order Ref. 38

16

6924053

CHASSIS

17

7214217

STOP, BOOM Was 6917004 - A

18

01607.1

Screw

19

01698.0

Washer

20

100345-09A

NUT

21

100432-51C

MIRROR, SIDE REAR Was 6922760 - A

22

LIGHT SUPPORT, RH NLA - Order #6934741 Was 6928166 - A

22

6934741

LIGHT SUPPORT, RH

23

BRACKET NLA - Order #6934740 Was 6928167 - A

23

6934740

LIGHT SUPPORT, LH

24

01782.2

Grease nipple

25

1CM1090

BOLT Was 12597.1 - A

26

7CM10100

SCREW HEX Was 65397.2 - A

27

84106.4

Connecting rod W/Ref. 33

28

7213171

PIN Was 84176.7 - A

29

7213173

PIN Was 84177.5 - A

30

6925246

FRONT SUPPORT

31

7213176

PLUG Was 94548.5 - A

32

100345-09A

NUT

33

7213158

LINK, BEARING Was 77261.6 - A

34

7213359

BEARING, SWING Was 77380.4 - A

35

90281.7

Bush

36

95464.4

Seal bulk - sold per foot

37

80919.4

Seal bulk - sold per foot

38

95465.1

Seal bulk - sold per foot
