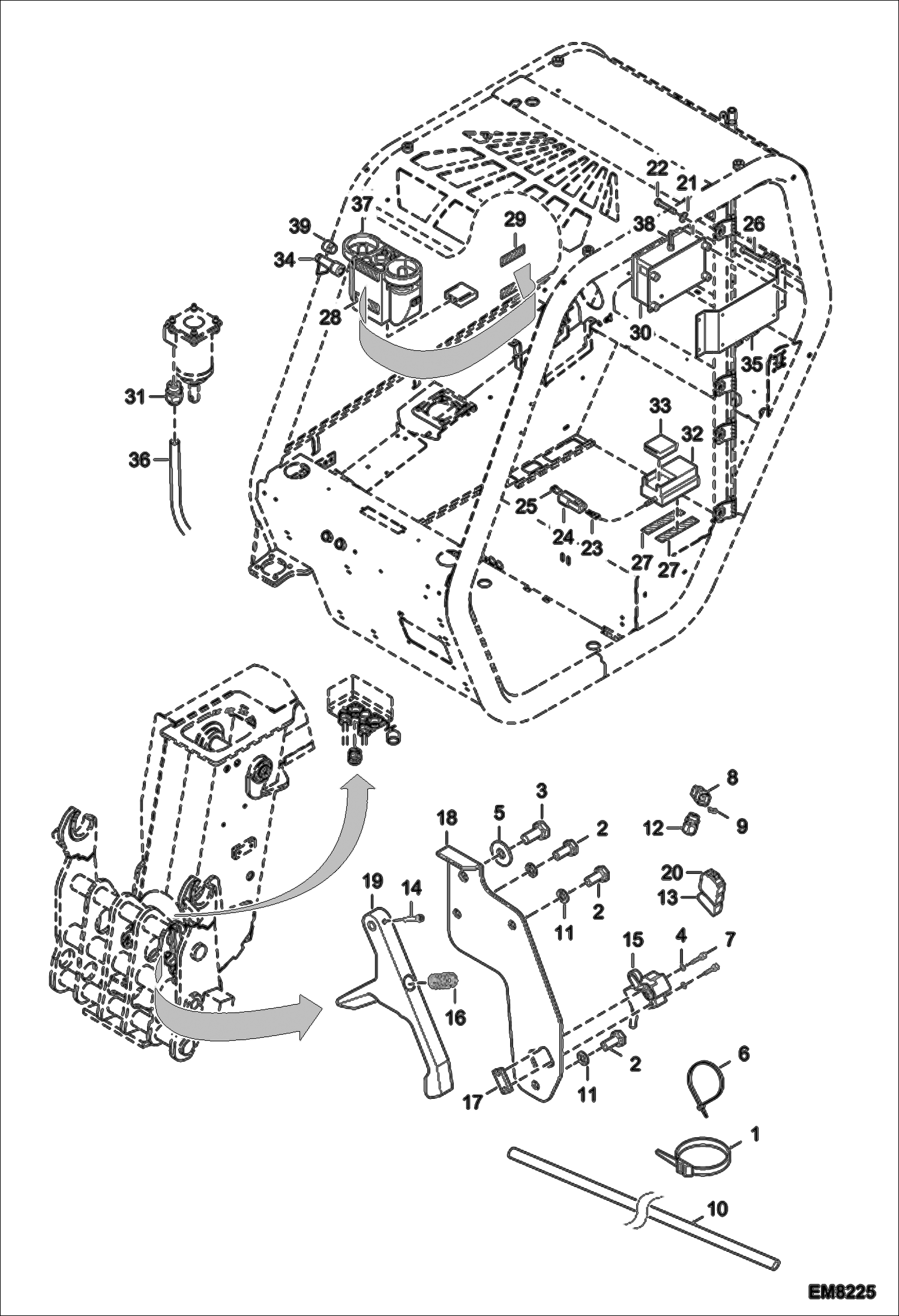

Запчасти Bobcat T40140 RADIO CONTROL ACCESSORIES & OPTIONS

1

6624289

STRAP, TIE

2

01605.5

Screw

3

01610.5

Screw

4

13414.8

WASHER

5

47571.5

WASHER

6

7214998

STRAP, TIE Was 50917.4 - A

7

53100.4

Screw

8

79549.2

Female connector 6 poles

9

79550.0

Block

10

82088.6

Protection

11

7225260

WASHER Was 89516.9 - A

12

96627.5

Cable plug

13

97882.5

CONTACT ELEMENT

14

100329-01C

SCREW

15

6919100

SWITCH, DETECTION

16

6919186

SPRING

17

6921490

PLATE

18

6922506

PLATE, SUPPORT

19

6922508

ARM, DETECTION

20

6923570

CONTACT BLOCK

21

13416.3

Washer

22

32397.2

Screw

23

78923.0

CONTACTEUR

24

79531.0

Connector

25

79532.8

Connector

26

79864.5

Screw

27

82060.5

ADHESIVE VELCRO 200 mm (7.8'') long - sold per foot

28

82060.5

ADHESIVE VELCRO 200 mm (7.8'') long - sold per foot

29

82061.3

ADHESIVE VELCRO 500 mm (19.7'') long - sold per foot

30

6924887

RADIO RECIEVER

31

96627.5

Cable plug

32

97923.7

Battery loader

33

97924.5

BATTERY

34

97925.2

OPERATING KEY

35

6908541

PLATE

36

6913575

WIRE HARNESS

37

6919921

RADIO CONTROL TRANSMITTER

38

6925314

ANTENNA

39

6925313

KEY, RED
