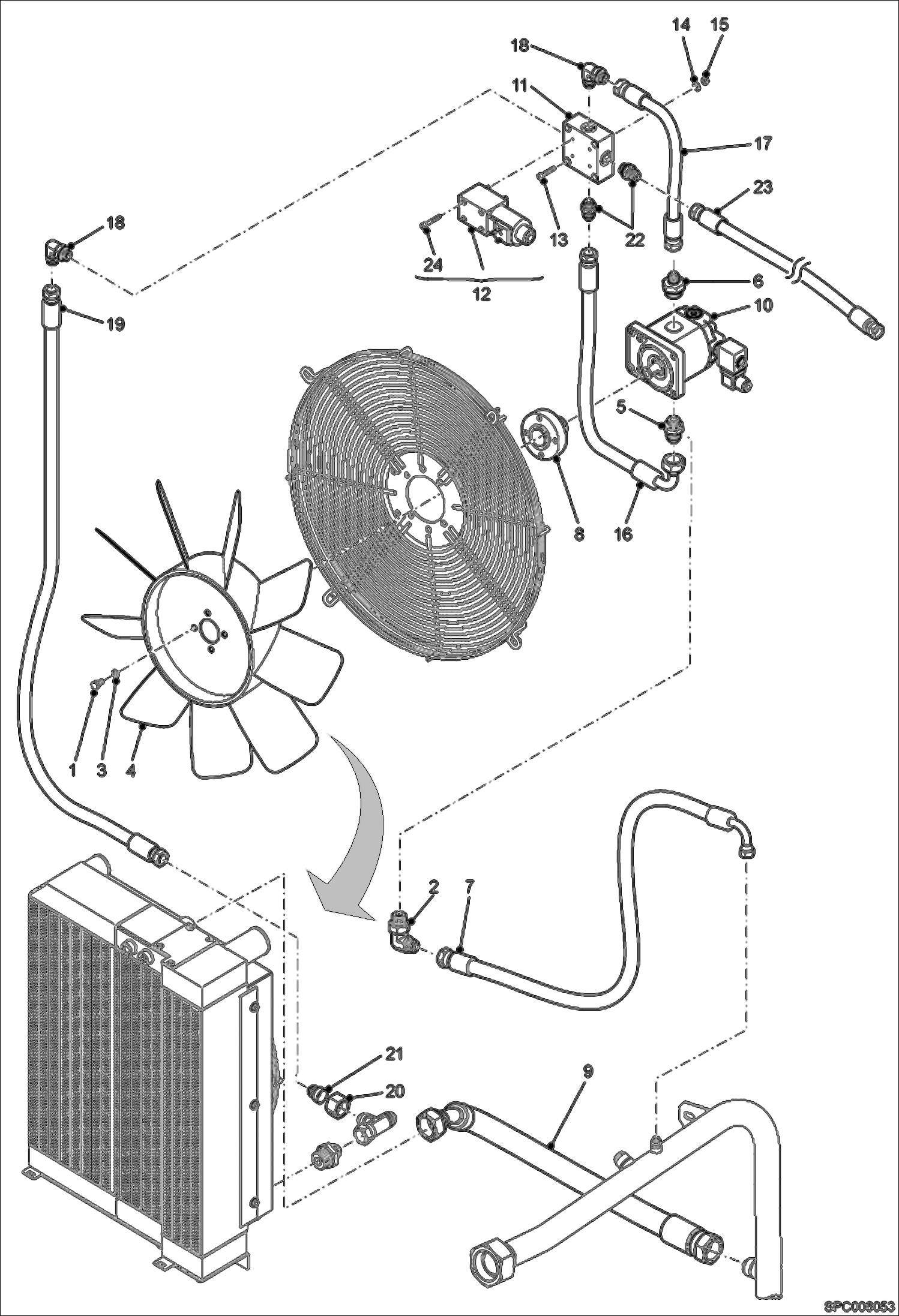

Запчасти Bobcat T40140 COOLING FAN CIRCUIT (W/ Optional Reverse) POWER UNIT

1

1CM816

BOLT Was 01595.8 - A

2

010370-93A

ELBOW PIECE

3

89519.3

Washer

4

97915.3

Fan

5

100375-40U

UNION

6

100375-59Q

UNION 3/4 JIC 3/4 BSP

7

6910622

HOSE TJ3/4 9.5 TJ90 9/16 L800

8

6911798

FAN FLANGE

9

6928048

HOSE Was 6913654 - A

10

6916976

Hydraulic motor (2 speed) See Illustration HYDRAULIC MOTOR/ SPC003176 2 speed

10

6916977

Hydraulic motor (1 speed) See Illustration HYDRAULIC MOTOR/ SPC003177 1 speed

10

6916978

HYDRAULIC MOTOR See Illustration HYDRAULIC MOTOR/ SPC003181 1 speed

11

98348.6

Support

12

98355.1

Electro distributor W/Ref. 26

13

13669.7

Screw

14

01696.4

Washer

15

100345-06W

NUT

16

6911028

HOSE

17

92995.0

Hose

18

010370-94B

ELBOW PIECE

19

96759.6

Hose

20

100345-34C

NUT D20-1.1/16 JIC

21

100375-15S

ADAPTER 1.1/16 JIC 3/4 JIC (20-12)

22

100375-38S

UNION

23

6920192

HOSE Was 65715.5 - A

24

79160.8

Screw
