Запчасти Bobcat T40140 WINCH INSTALLATION (82698.2) ACCESSORIES & OPTIONS

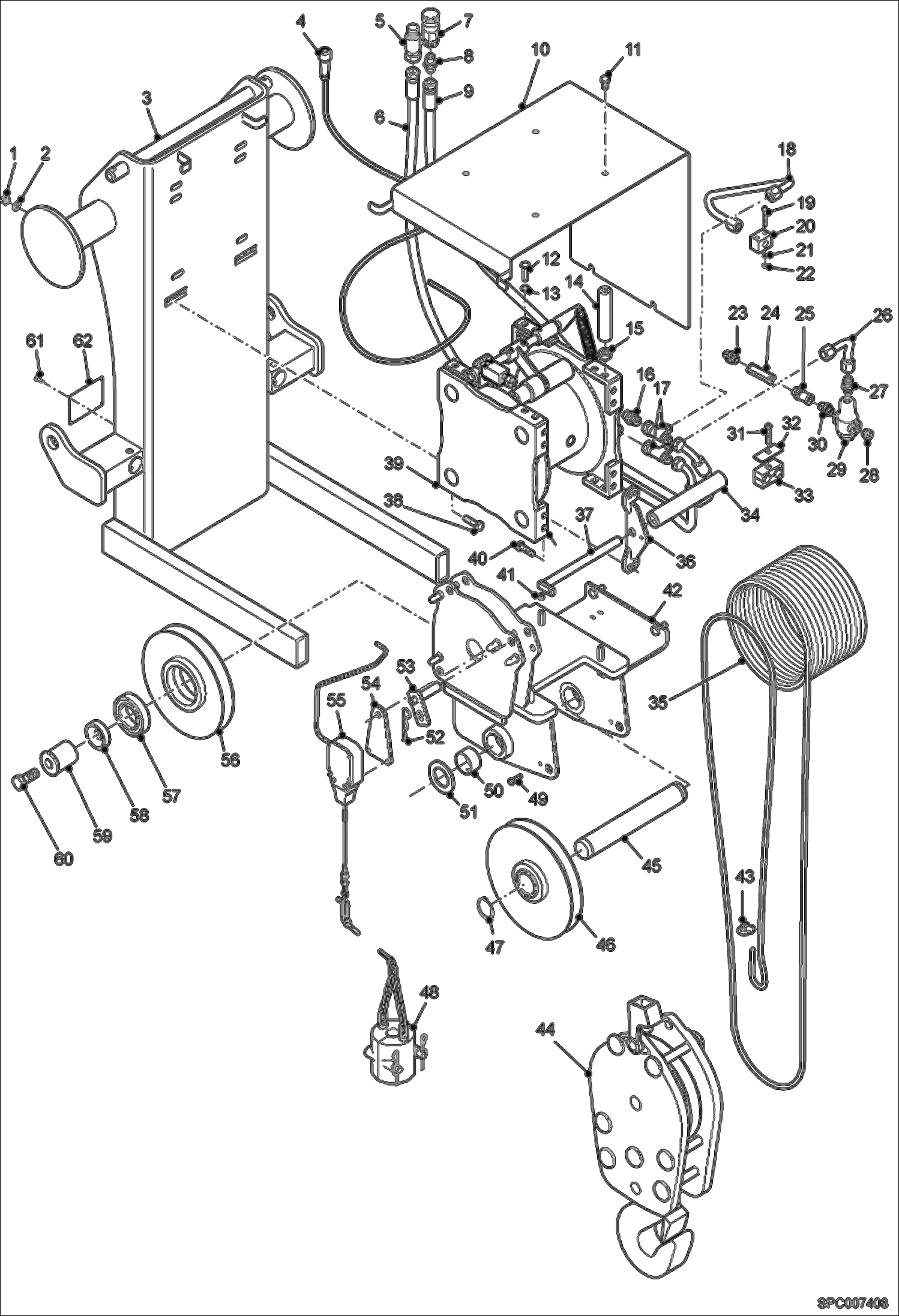

Схема запчастей Bobcat T40140 - WINCH INSTALLATION (82698.2) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

000345-96E

NUT

2

01699.8

Washer

3

94629.3

Support

4

89054.1

Cable harness

5

7225159

COUPLER, HYD Was 95994.0 - A

6

65486.3

Hose

7

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

8

014375-30H

UNION

9

65486.3

Hose

10

6909766

Housing

11

01610.5

Screw

12

6916622

Screw

13

89517.7

Washer

14

6908612

Washer

15

6908614

Washer

16

014375-31J

Union

17

008372-28F

UNION

18

6908551

Hose

19

27834.1

Screw

20

7179623

SLEEVE Was 61358.8 - A

21

01696.4

Washer

22

100345-06W

NUT

23

100375-39T

UNION 7/8 JIC 3/8 BSP

24

100433-08P

Valve

25

100375-56M

UNION

26

6908550

Hose

27

96568.1

Union

28

100374-14H

PLUG

29

6908549

Pressure relief valve

30

100375-56M

UNION

31

01579.2

Screw

32

54214.2

Protection plate

33

54218.3

Collar

34

6909757

Pulley

35

82717.0

Cable

36

6909762

Support

37

6909759

Axle

38

80782.6

Screw

39

82698.2

Winch 1.35 Tons

40

01614.7

Screw

41

01681.6

Nut Was 51851.4 - B

42

6908576

Support

43

89006.1

Cable end

44

82706.3

Tackle block

45

6908604

Axle

46

6916078

Pulley

47

5JM50

CIRCLIPS Was 31825.3 - B

48

84667.5

Counterweight

49

01598.2

Screw

50

72347.8

Bushing

51

62079.9

Washer

52

01154.4

Pin

53

82760.0

Stop

54

82791.5

Support

55

84666.7

Switch

56

82750.1

Pulley

57

89165.5

Bearing

58

82754.3

Locking ring

59

82749.3

Axle

60

000338-77X

Screw

61

43824.2

Rivet

62

PLATE, CE NAP Was 98167.0 - D

Выбрано товаров: 62
