Запчасти Bobcat T40140 WINCH INSTALLATION (6922098) ACCESSORIES & OPTIONS

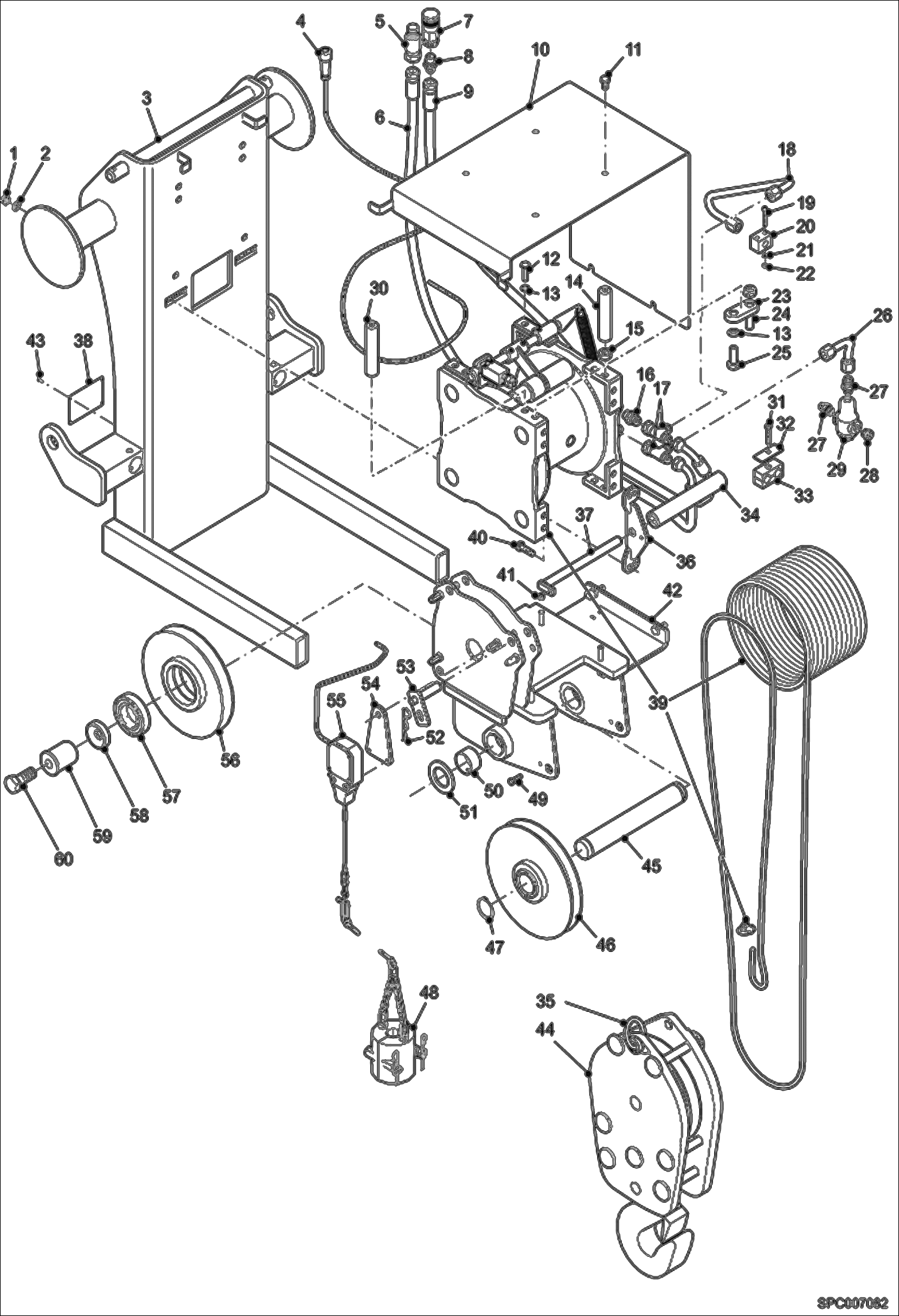

Схема запчастей Bobcat T40140 - WINCH INSTALLATION (6922098) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

000345-96E

NUT

2

01699.8

Washer

3

6923119

SUPPORT Was 94629.3 - A

4

89054.1

Cable harness

5

7225159

COUPLER, HYD Was 95994.0 - A

6

65486.3

Hose

7

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

8

014375-30H

UNION

9

65486.3

Hose

10

6923127

HOUSING Was 6909766 - A

11

01610.5

Screw

12

6916622

Screw

13

89517.7

Washer

14

6908612

Washer

15

6908614

Washer

16

100375-39T

UNION 7/8 JIC 3/8 BSP Was 014375-31J - A

17

008372-28F

UNION

18

6925593

HOSE Was 6908551 - A

19

27834.1

Screw

20

7179623

SLEEVE Was 61358.8 - A

21

01696.4

Washer

22

100345-06W

NUT

23

6925144

SPACER

24

01528.9

Screw

25

01612.1

Screw

26

6925592

HOSE Was 6908550 - A

27

96568.1

Union

28

100374-14H

PLUG

29

6926199

PRESSURE RELIEF VALVE Was 6908549 - A

30

6926223

WASHER

31

01579.2

Screw

32

54214.2

Protection plate

33

54218.3

Collar

34

6909757

Pulley

35

6925524

RING

36

6923123

SUPPORT Was 6909762 - A

37

6909759

Axle

38

PLATE, CE NAP Was 98167.0 - D

39

6922098

WINCH 1.35 TONS See Illustration WINCH 1.35 TONS/ SPC007407 Was 82698.2 - A

40

01614.7

Screw

41

01681.6

Nut Was 51851.4 - B

42

6923118

SUPPORT Was 6908576 - A

43

43824.2

Rivet

44

82706.3

Tackle block

45

6908604

Axle

46

6916078

Pulley

47

5JM50

CIRCLIPS Was 31825.3 - B

48

84667.5

Counterweight

49

01598.2

Screw

50

72347.8

Bushing

51

62079.9

Washer

52

01154.4

Pin

53

82760.0

Stop

54

82791.5

Support

55

84666.7

Switch

56

82750.1

Pulley

57

89165.5

Bearing

58

82754.3

Locking ring

59

82749.3

Axle

60

000338-77X

Screw

Выбрано товаров: 60
