Запчасти Bobcat T40140 SIDE SHIFTER ASSY (Narrow Quick Attach) ACCESSORIES & OPTIONS

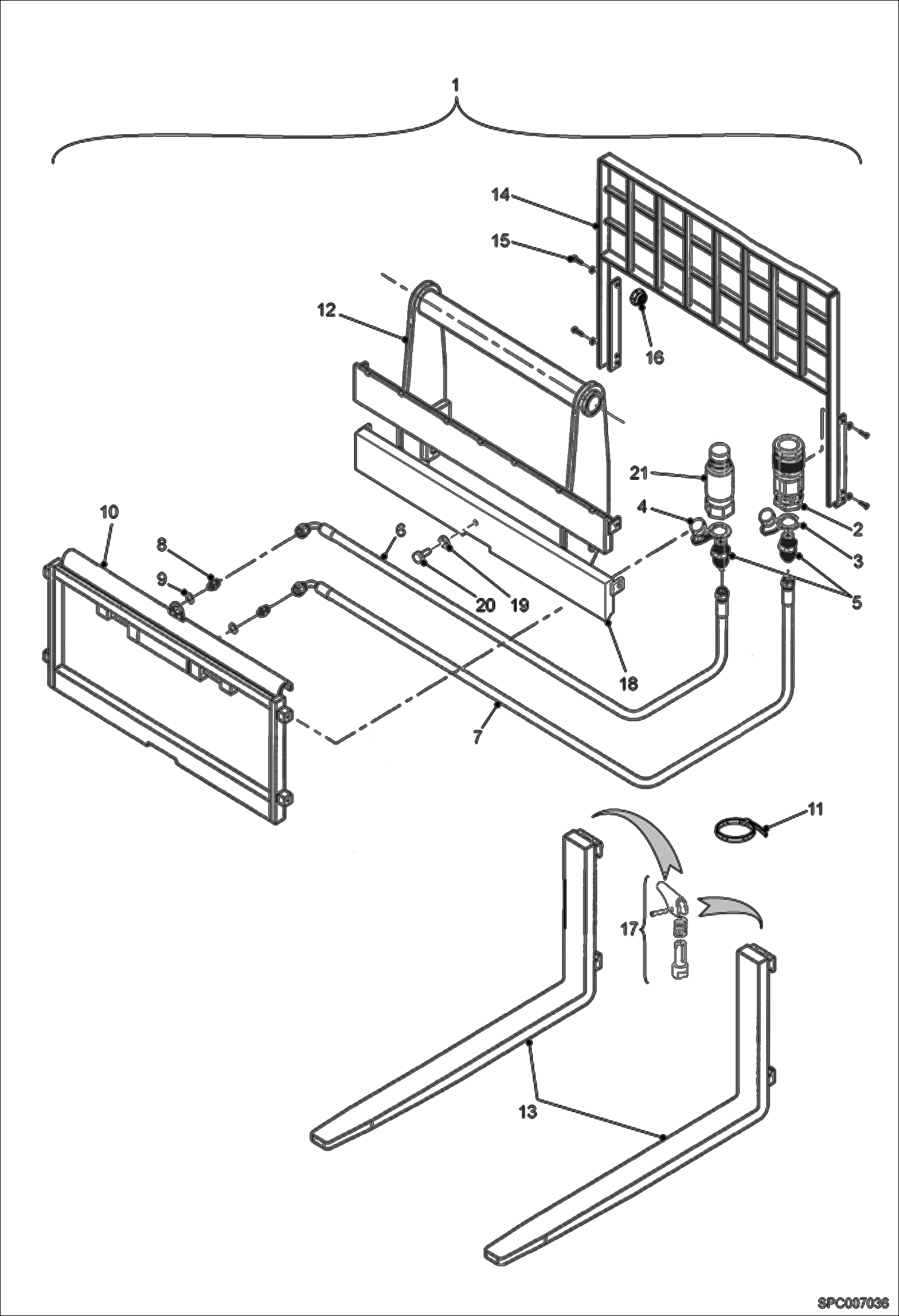

Схема запчастей Bobcat T40140 - SIDE SHIFTER ASSY (Narrow Quick Attach) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

Side-sifter assy NLA - SALES - #7194870 width 1150 mm - W/Ref. 2-21 - Was 96536.8 - A

2

7186826

COUPLER, QUICK FEMALE Was 95993.2 - A

3

7225161

CAP, COUPLER Was 96514.5 - A

4

7225160

CAP, COUPLER Was 96513.7 - A

5

022375-04U

UNION

6

74602.4

Hose

7

84969.5

Hose

8

70941.0

Adapter

9

34765.8

Copper ring

10

78428.0

Side-Shifter assy See Illustration SIDE SHIFTER ASSY II/ SPC007037

11

6624289

STRAP, TIE

12

FORKS HOLDER, ASSY NLA - W/Ref. 12 & 18-20

13

89034.3

Fork

14

80917.8

Splash plate

15

01613.9

Screw

16

000345-96E

NUT

17

98677.8

Locking kit

18

6918778

SLIDE Was 64019.3

19

15323.9

Washer

20

01620.4

Screw

21

7225159

COUPLER, HYD Was 95994.0 - A

Выбрано товаров: 21
