Запчасти Bobcat T40140 RIGID FORKS HOLDER (W/O Back) ACCESSORIES & OPTIONS

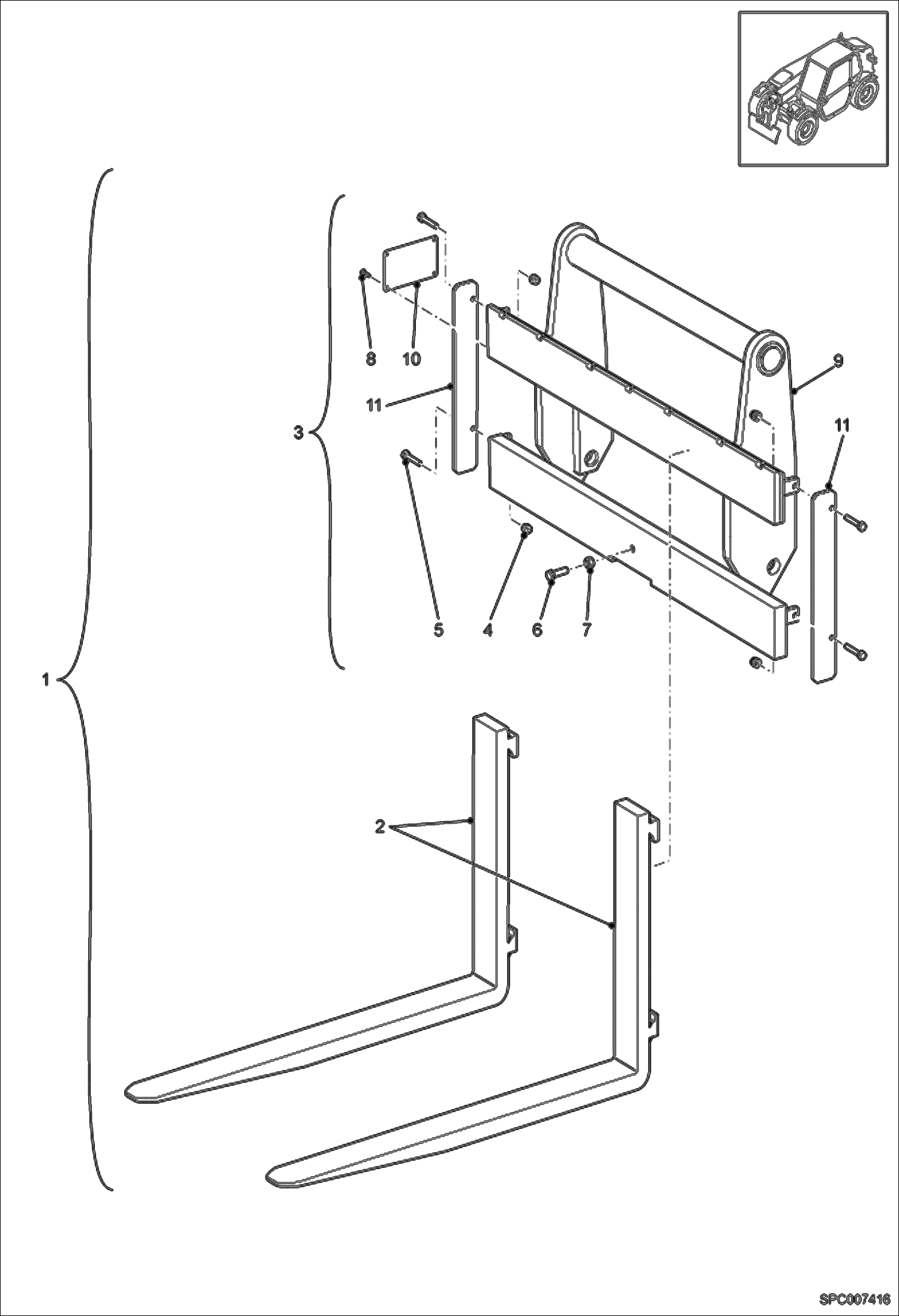

Схема запчастей Bobcat T40140 - RIGID FORKS HOLDER (W/O Back) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

80908.7

Forks holder W/Ref. 2-11

2

89034.3

Fork

3

FORKS HOLDER, ASSY NLA - W/Ref. 4-11

4

000345-96E

NUT

5

01613.9

Screw

6

01620.4

Screw

7

15323.9

Washer

8

43824.2

Rivet

9

62925.3

FRAME, PALLET FORK HOLDER 4T, 1,2 m wide

10

PLATE, CE NAP Was 98167.0 - D

11

6922316

PLATE Was 80997.0 - A

Выбрано товаров: 11
