Запчасти Bobcat T40140 MATRICULATION PLATE ACCESSORIES & OPTIONS

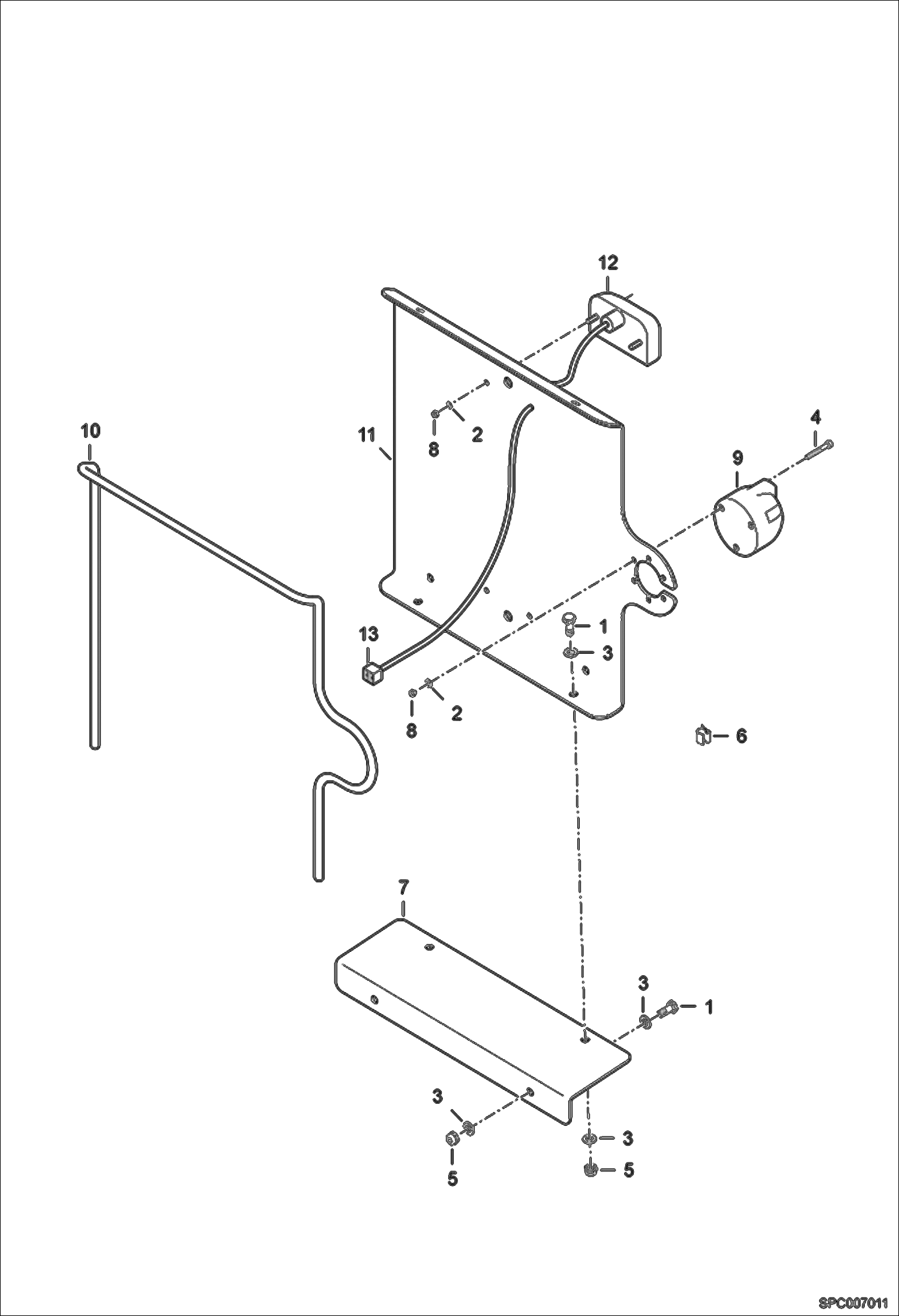

Схема запчастей Bobcat T40140 - MATRICULATION PLATE ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

1CM820

BOLT Was 01596.6 - B

2

01695.6

Washer

3

01697.2

Washer

4

39079.9

Screw

5

01681.6

Nut Was 51851.4 - B

6

60838.0

Clasp Was 30701.7 - A

7

92706.1

Plate

8

100345-04U

NUT

8

100345-05V

NUT

9

6909711

ELECTRIC PLUG

10

6914428

Seal

11

6909731

Plate

11

6927697

BRACKET

12

79334.9

Light

12

7175124

LIGHT

13

84654.3

Wire harness

13

6927760

HARNESS

Выбрано товаров: 17
