Запчасти Bobcat T40140 CRANE JIB & EXTENSION JIB (Narrow Quick Attach) ACCESSORIES & OPTIONS

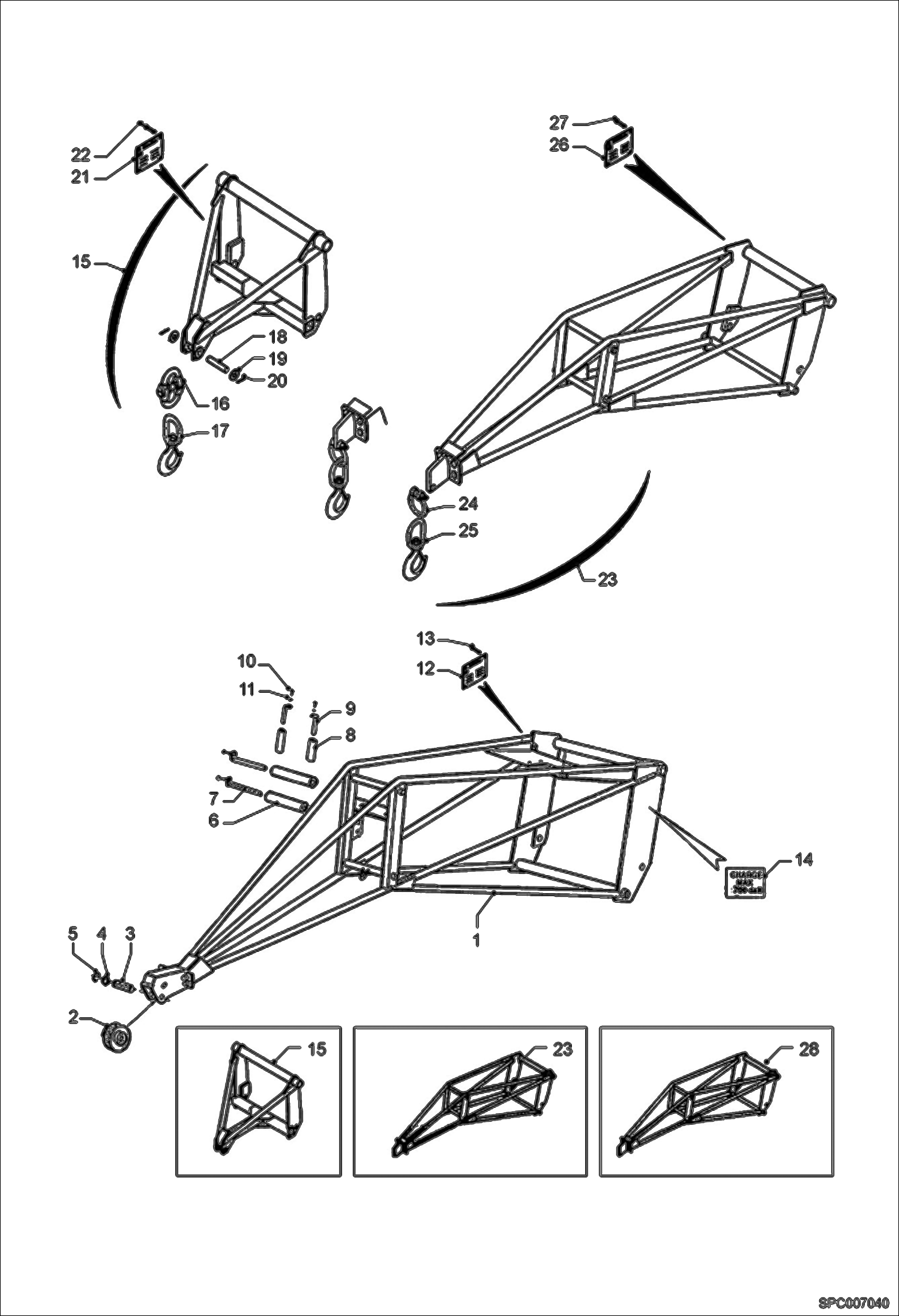

Схема запчастей Bobcat T40140 - CRANE JIB & EXTENSION JIB (Narrow Quick Attach) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

65639.7

Jib for winch

2

65632.2

Pulley

3

65633.0

Spindle

4

56076.3

Washer

5

26747.6

Clip

6

65643.9

Roller

7

65507.6

Spindle

8

65645.4

Roller

9

65649.6

Spindle

10

1CM820

BOLT Was 01596.6 - B

11

11463.7

Washer

12

PLATE, CE NAP Was 98167.0 - D

13

43824.2

Rivet

14

101475-29X

Adhesive

15

JIB ASSY NLA - W/Ref. 15-22

16

70012.0

Shackle

17

70011.2

Hook

18

69868.8

Spindle

19

10897.7

Washer

20

01763.2

Pin

21

PLATE, CE NAP Was 98167.0 - D

22

43824.2

Rivet

23

69445.5

Boom W/Ref. 23-27

24

64060.7

Shackle

25

100383-02X

Hook

26

PLATE, CE NAP Was 98167.0 - D

27

43824.2

Rivet

28

69513.M

BOOM 3700 mm (145.67'') long Was 69513.0

Выбрано товаров: 28
