Запчасти Bobcat T40140 BOBCAT DECALS (S/N 365411001 - 12000) ACCESSORIES & OPTIONS

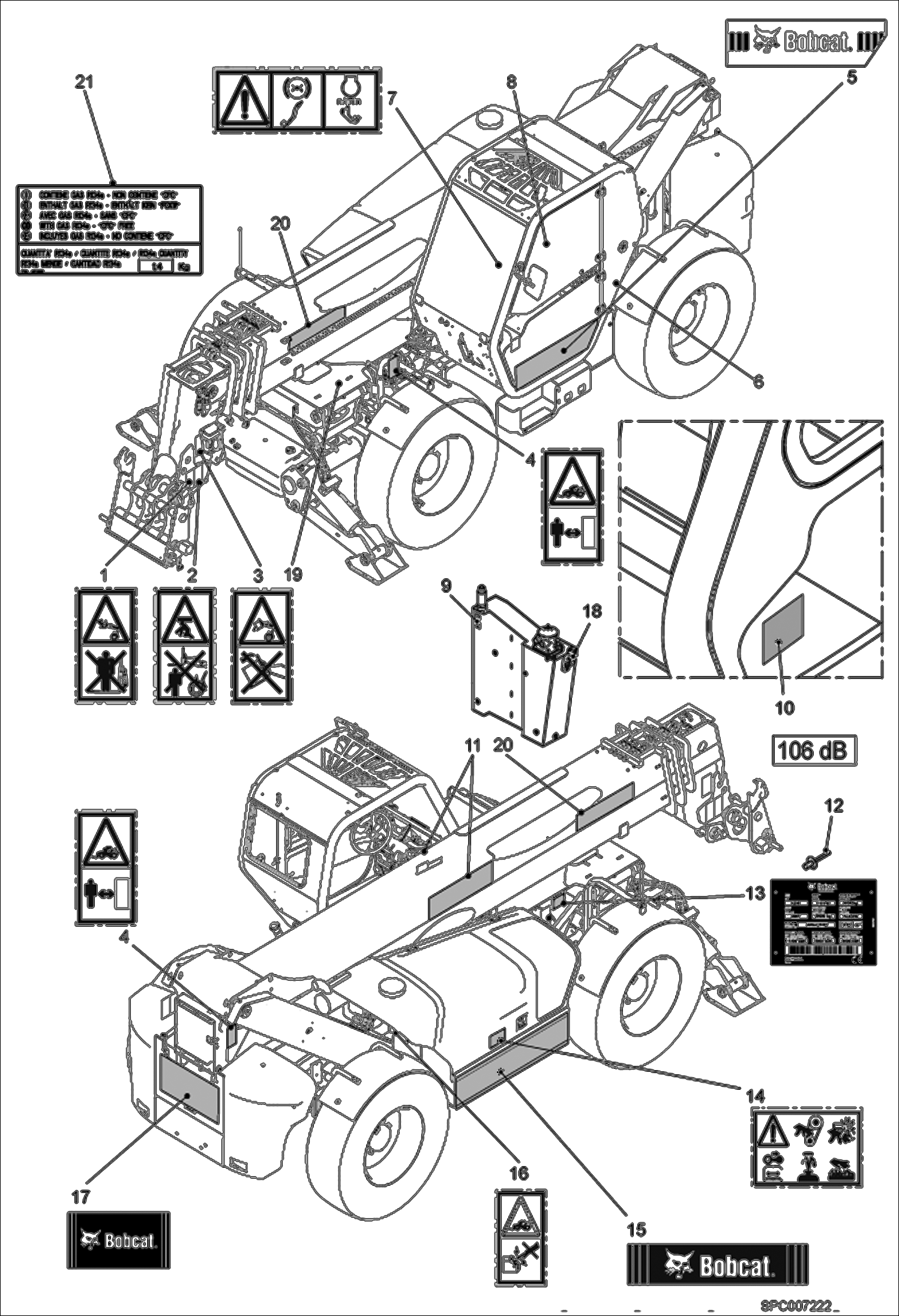

Схема запчастей Bobcat T40140 - BOBCAT DECALS (S/N 365411001 - 12000) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

79523.7

Decal - Safety - Do not ride forks

2

79524.5

Decal - Safety - Don't stand under forks

3

79645.8

Decal - Safety - Don't incline load

4

79525.2

Decal - Safety - Safety distance

5

6916056

Decal - logo Was 6809625

7

92404.3

Decal - Pedal functions

8

76324.3

Decal - Sound signal

9

6565990

DECAL, OIL HYD 5

10

96749.7

Decal - ''106 dB''

11

94384.5

Decal - T40170

12

6916450

RIVET

13

PLATE, SERIAL NO. NAP

14

92762.4

Decal - Safety - Engine

15

6916057

DECAL - BOTTOM SIDE ENGINE COVER Was 6809627

16

79526.0

Decal - Safety - Starting

17

6916059

DECAL Was 6908051

18

6910594

DECAL, OIL LEVEL

19

6909446

Decal - Slinging points

20

96928.7

Decal - Arm ''Bobcat'' - RH

20

96928.7

Decal - Arm ''Bobcat'' - RH

21

6933820

AIR CONDITIONING DECAL

Выбрано товаров: 21
