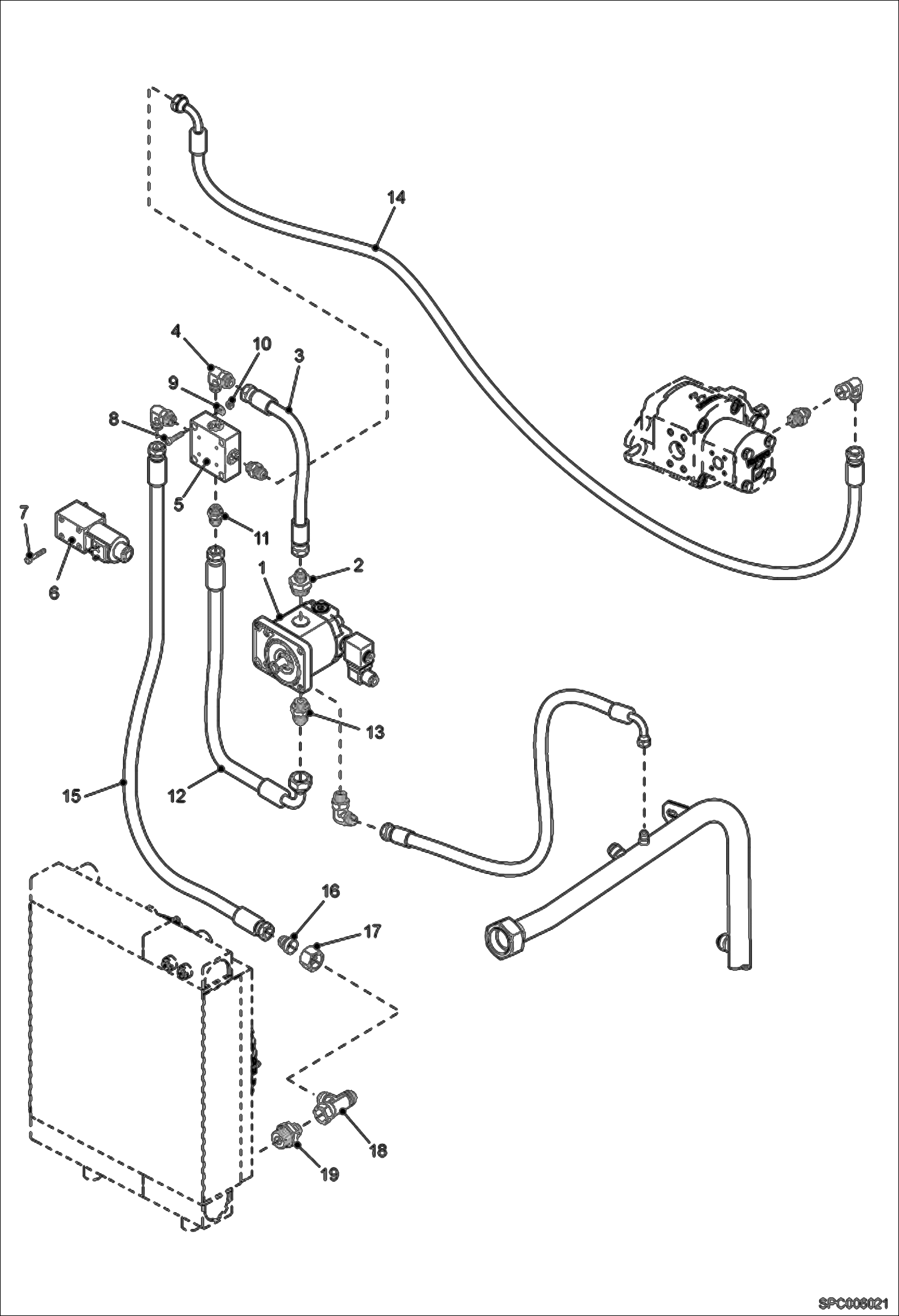

Запчасти Bobcat T40140 COOLING FAN CIRCUIT (WITH OPTIONAL REVERSE) POWER UNIT

1

6916978

HYDRAULIC MOTOR See Illustration HYDRAULIC MOTOR/ SPC003181 1 speed Was 6910598

2

100375-59Q

UNION 3/4 JIC 3/4 BSP

3

92995.0

Hose

4

010370-94B

ELBOW PIECE

5

98348.6

Support

6

98355.1

Electro distributor W/Ref. 6-7

7

79160.8

Screw

8

13669.7

Screw

9

01696.4

Washer

10

100345-06W

NUT

11

100375-38S

UNION

12

6911028

HOSE

13

100375-40U

UNION

14

101319-27P

HOSE ASSEM

15

96759.6

Hose

16

100375-15S

ADAPTER 1.1/16 JIC 3/4 JIC (20-12)

17

100345-34C

NUT D20-1.1/16 JIC

18

008372-34M

UNION

19

68609.7

Union
