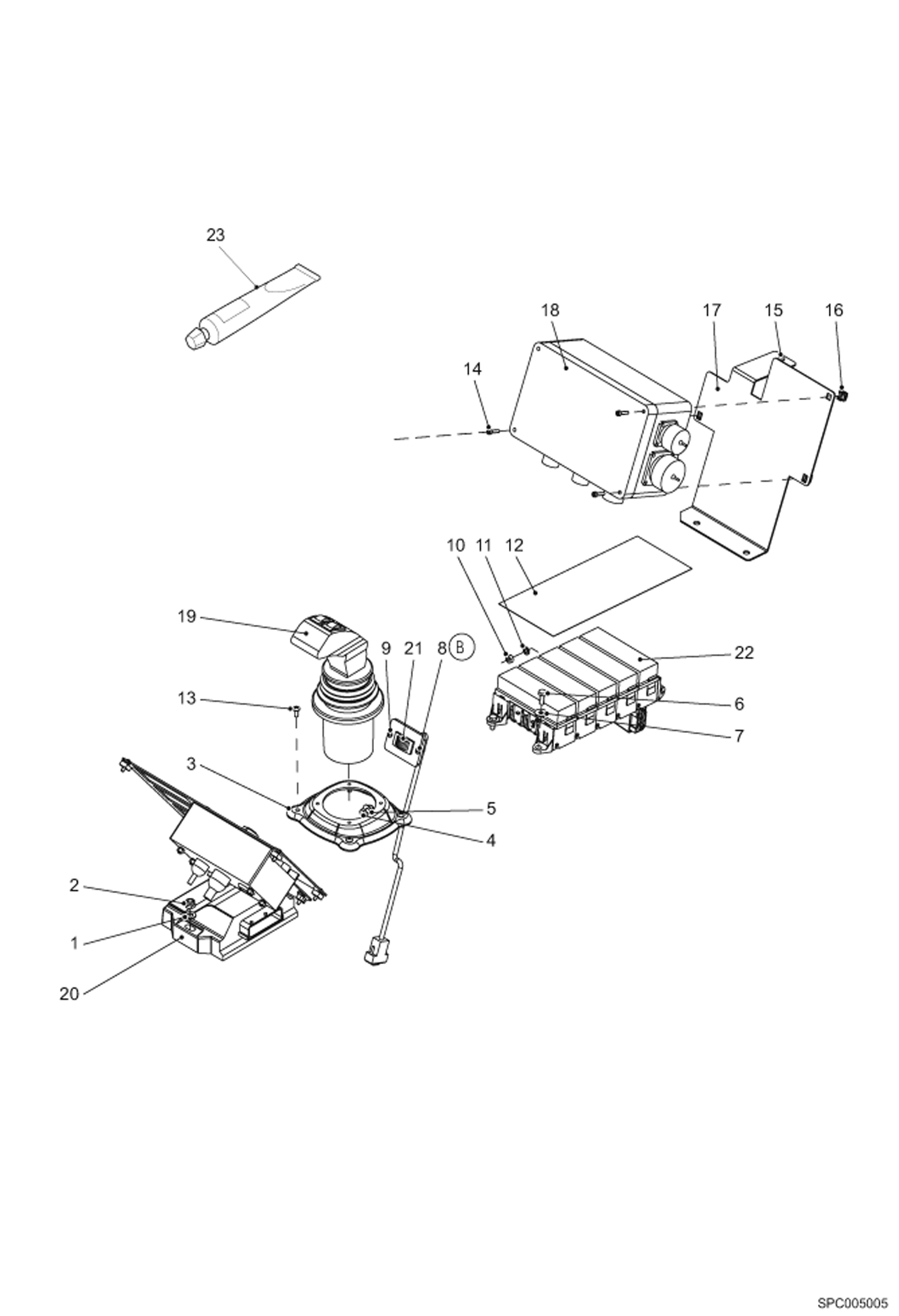

Запчасти Bobcat T40140 JOYSTICK / SUSMIC INSTALLATION ELECTRICAL SYSTEM

1

01697.2

Washer

2

01681.6

Nut Was 51851.4 - B

3

6911326

Spacer

4

01717.8

Washer

5

01590.9

Screw

6

01590.9

Screw

7

29272.2

Washer

8

6914586

SUPPORT

9

6910951

SCREW

10

01666.7

Nut

11

94574.1

Washer

12

6912457

Adhesive

13

6910697

SCREW

14

61416.4

Screw

15

79864.5

Screw

16

6912225

Nut

17

6913915

Plate

18

6914597

Control box

19

92954.7

Joystick

20

6911325

ELECTRIC BOX

21

90930.9

Control Knob

22

FUSE BOX NAP

23

6901596

GREASE
