Запчасти Bobcat T40140 ELECTRICAL CIRCUIT CHASSIS ELECTRICAL SYSTEM

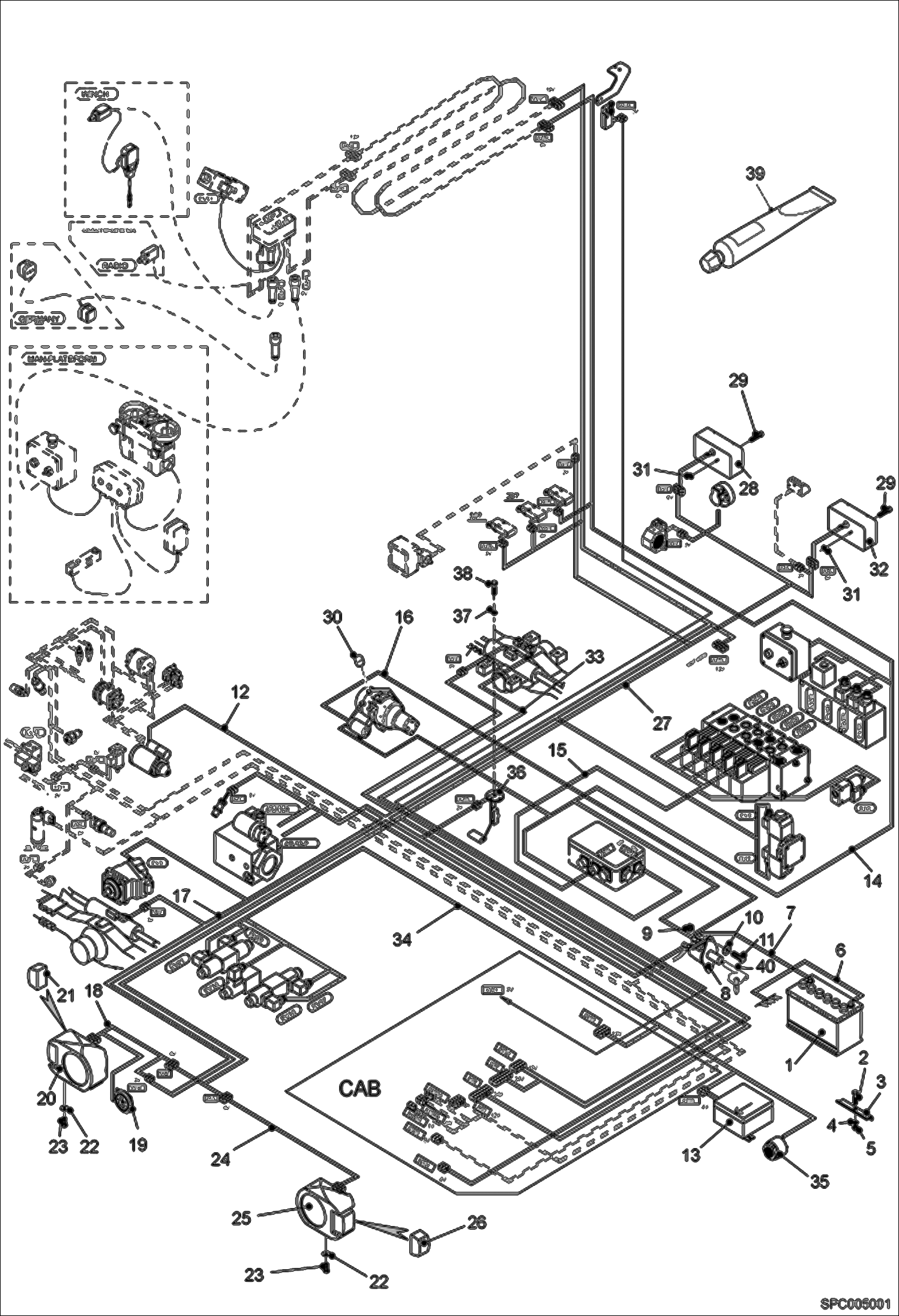

Схема запчастей Bobcat T40140 - ELECTRICAL CIRCUIT CHASSIS ELECTRICAL SYSTEM

Артикул

Название

Примечание

Количество

1

7223985

BATTERY Was 6914907 - A

2

01598.2

Screw

3

77136.0

Bracket

4

000350-02V

WASHER

5

01681.6

Nut Was 51851.4 - B

6

78869.5

Negative Battery Cable negative

7

79861.1

Positive Battery Cable positive

8

65764.3

Circuit Breaker W/Ref. 40

9

100345-06W

NUT

10

000350-01U

WASHER

11

01591.7

Screw

12

WIRE HARNESS

13

6923518

INCLINOMETER Was 6914945 - A

14

95333.1

Wire harness

15

90898.8

Distributor Wiring Harness

16

79733.2

Wire harness

17

6911734

Wire harness

18

6917889

HARNESS Was 96587.1

19

100417-11D

HORN

20

79533.6

Front Light Assembly, RH RH - W/Ref. 21

20

6666570

BULB 40W Was 000405-62P - A

20

27362.3

Bulb 4W

21

59758.3

Light, RH

21

27089.2

Bulb 21W

22

01718.6

Washer

23

1CM820

BOLT Was 01596.6 - B

24

79539.3

Front Light Wire Harness, LH LH

25

79534.4

Front Light Assembly, LH LH - W/Ref. 26

25

6666570

BULB 40W Was 000405-62P - A

25

27362.3

Bulb 4W

26

59948.0

Light, LH

26

27089.2

Bulb 21W

27

98087.0

Wire harness

28

7225546

LIGHT, REAR RH Was 82265.0 - A

28

97260.4

Glass

28

27089.2

Bulb 21W

28

6909955

BULB 21/5W

29

100329-01C

SCREW Was 33786.5 - A

30

96956.8

Cap

31

7225547

WASHER Was 6921479 - A

32

7225545

LIGHT, REAR LH Was 82266.8 - A

32

97261.2

Glass

32

27089.2

Bulb 21W

32

6909955

BULB 21/5W

33

6914109

SENSOR, LOAD

34

6910500

Wire harness no. 2

35

BUZZER NLA Was 90913.5 - A

36

6933959

FUEL GAUGE Was 6918308 - C

37

13415.5

Washer

38

01478.7

Screw

39

6901596

GREASE

40

66181.9

CIRCUIT BREAKER KEY

Выбрано товаров: 52
