Запчасти Bobcat T40140 PARKING BRAKE HYDRAULIC INSTALLATION (ACCUMULATOR) HYDRAULIC SYSTEM

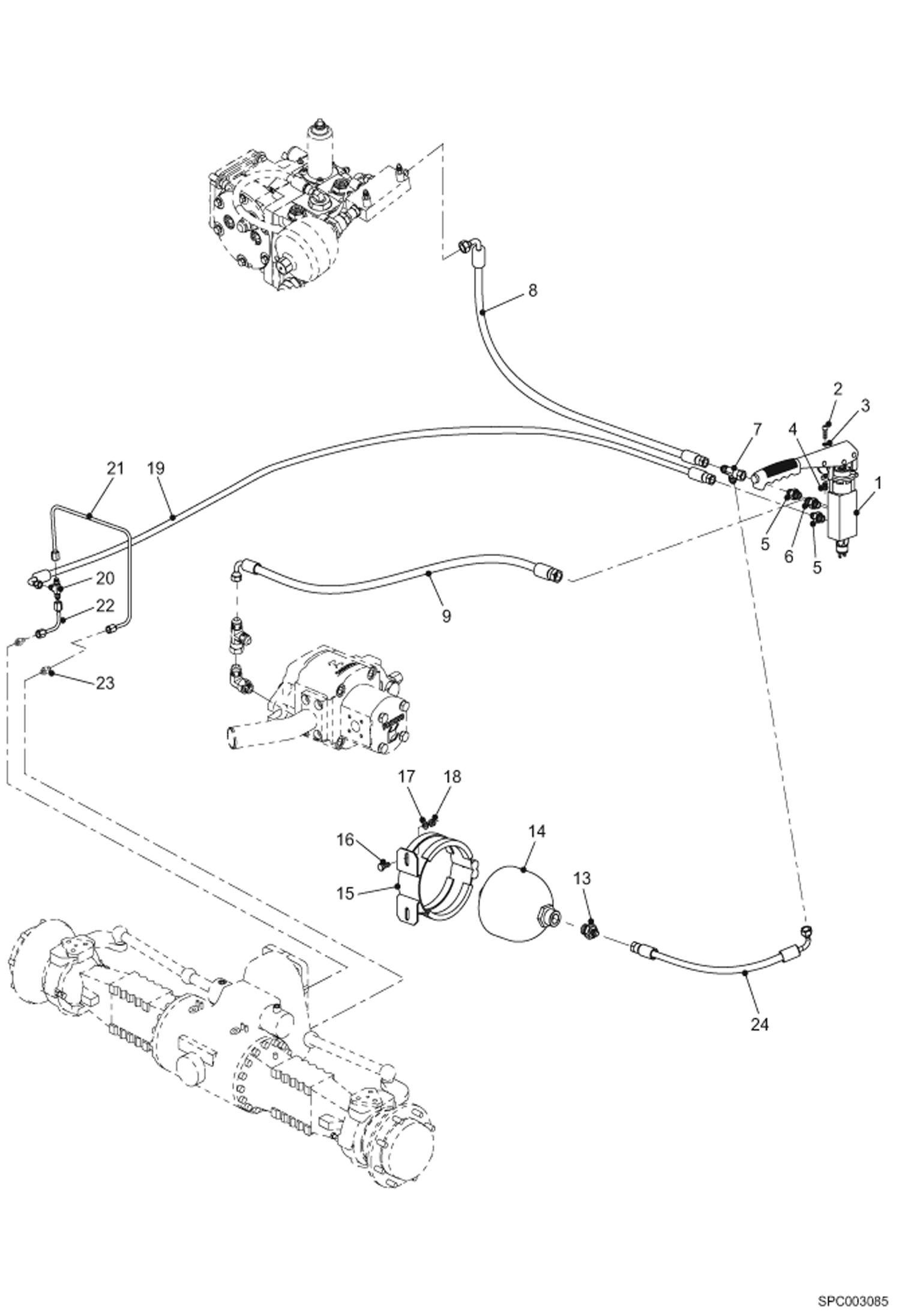

Схема запчастей Bobcat T40140 - PARKING BRAKE HYDRAULIC INSTALLATION (ACCUMULATOR) HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6915524

CONTROL, BRAKE HAND See Illustration PARKING BRAKE LEVER/ SPC001022

2

10167.5

Screw

3

94574.1

Washer

4

100345-06W

NUT

5

90289.0

Union

6

96567.3

Union

7

100372-06G

UNION

8

97663.9

Hose

9

96776.0

Hose

13

100375-59Q

UNION 3/4 JIC 3/4 BSP

14

90113.2

Accumulator

15

82167.8

Collar

16

1CM820

BOLT Was 01596.6 - B

17

01697.2

Washer

18

01681.6

Nut Was 51851.4 - B

19

92991.9

Hose

20

62849.5

T- union

21

90191.8

Tube

22

89475.8

Tube

23

100375-71D

UNION

24

6909434

HOSE , TJ90 9/16 6,4 TJ 9/16 L 520

Выбрано товаров: 21
